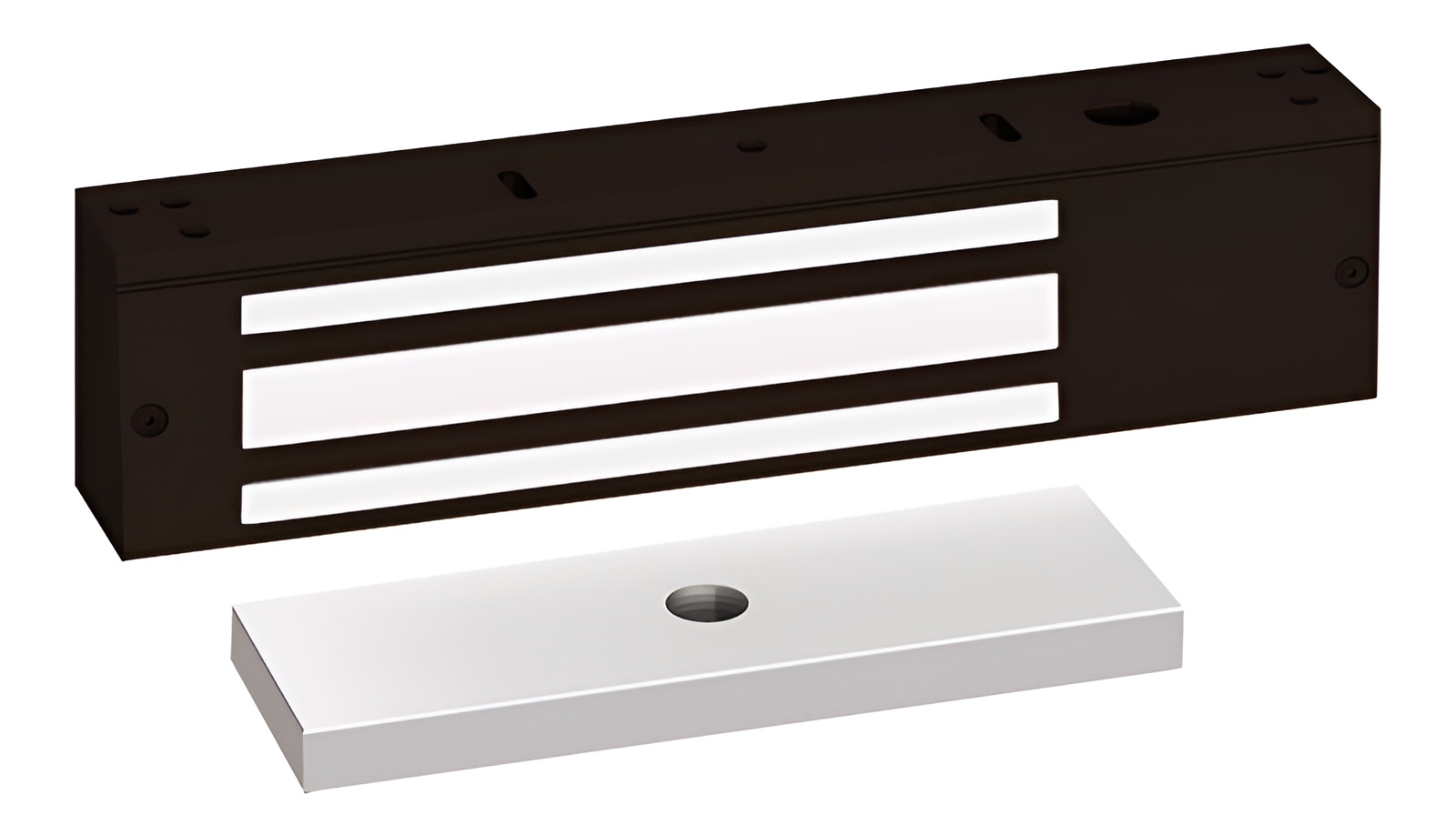

SDC 1581YD Single Mag Lock offers an innovative solution for securing interior and perimeter doors with its robust design and advanced features. This single electromagnetic lock is built with a powerful 650 lbs holding force, ensuring reliable security for a variety of applications including commercial buildings, warehouses, and long-term living facilities. Designed to be user-friendly, the SDC 1581YD features an automatic voltage sensing input, compatible with both 12V and 24V DC systems. The modular assembly allows for easy installation and maintenance without the need to remove the lock from the door frame, streamlining service and upgrades. The patented EMLock® design not only enhances the lock's functionality but also provides a sleek, less obtrusive appearance compared to traditional stainless steel options. Additionally, the lock is equipped with a door position sensor and is ANSI Grade 1 rated, ensuring it meets high industry standards for security and reliability. The Excel™ product line represents a cost-effective, fully featured alternative to low-cost imports, making it an ideal choice for professionals seeking quality and performance. Covered by a lifetime warranty, the SDC 1581YD is fully compatible with any access control system, making it a versatile addition to any security strategy.
Single Mag Lock
Single EMLock Magnetic Locks, Automatic Voltage Sensing Input, 650 lbs. Holding Force, Door Position Sensor, Black Anodized Aluminum
ANSI Grade 1, Modular Magnetic Lock, 650 lbs Holding Force. Field upgradeable outputs and servicing without removing from the door frame.
Suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability.
Our patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade, and maintain. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. The Excel™ product line is an economically priced, fully featured alternative to low-cost imports with a quick mount assembly to reduce installation time. They provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. All SDC magnetic locks are compatible with any access control system and covered by a lifetime warranty, see price list for details.
Applications
Commercial Residential: Commercial
Finish: 315/335
Finish Family: Black
Installation: Commercial
Operating Voltage: 12/24 VDC
Series: SDC Magnetic Locks and Door Holders
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
