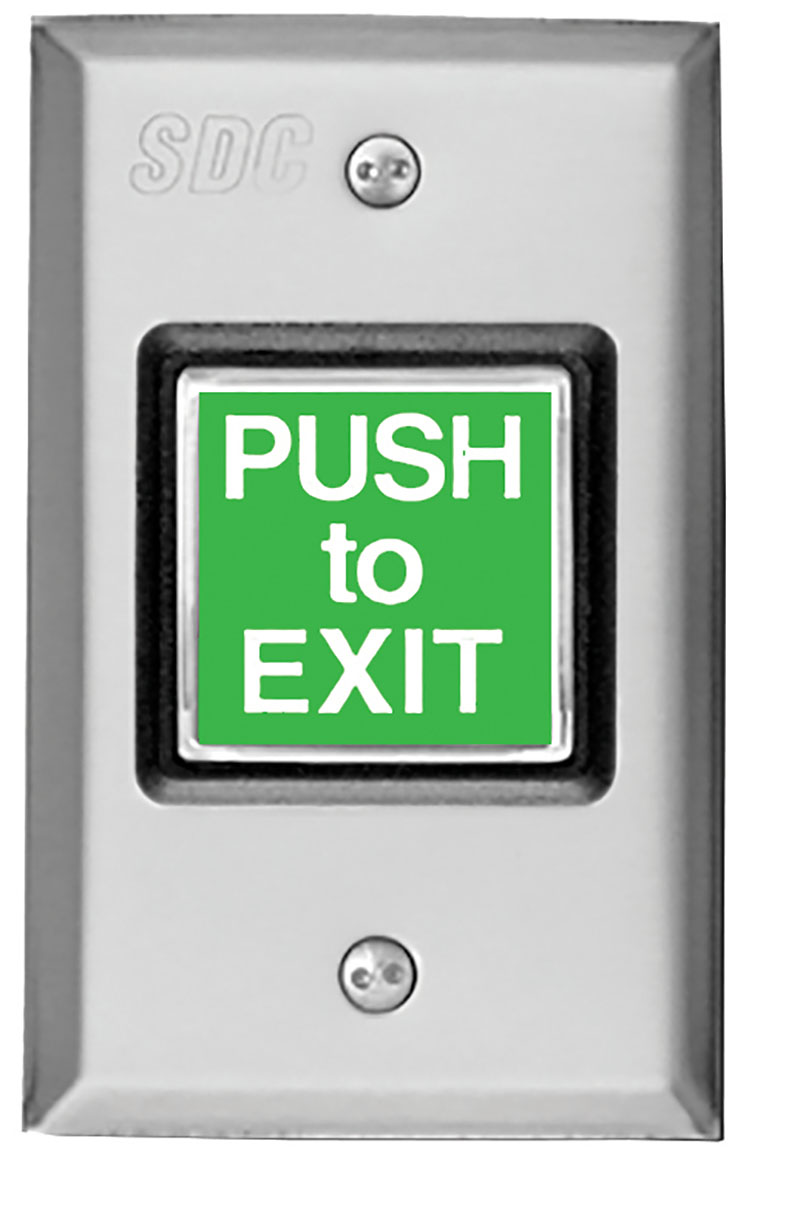

SDC 423U Illuminated Pushbutton Switch - 1 Gang

SDC 423U 1 Gang Illuminated Pushbutton is designed to enhance safety and convenience in commercial environments. This 2-inch exit switch operates at 12/24VDC and features a robust 2A DPDT contact, ensuring reliable performance. With the clear "PUSH TO EXIT" indication, users can easily locate the button, making it an essential addition to any exit strategy. The integrated electronic timer is a standout feature, adjustable from 1 to 60 seconds, allowing for customizable exit delays to accommodate various operational needs. Crafted from satin stainless steel, the button not only offers durability but also a sleek, professional appearance that fits seamlessly into modern architectural designs. Part of SDC's diverse lineup, the 423U is compatible with various exit button configurations, ensuring it meets diverse request-to-exit applications. For added versatility, SDC also offers motion sensors and wave-to-open switches, providing touchless solutions that enhance accessibility and compliance. Ideal for commercial installations, the SDC 423U combines functionality with a refined finish, making it a smart choice for building professionals and knowledgeable homeowners alike. Whether upgrading existing hardware or designing a new space, this illuminated pushbutton delivers both safety and style.

1 Gang Illuminated Pushbutton

2" Exit Switch, 12/24VDC, 2A DPDT Contact, "PUSH TO EXIT", Integrated Electronic Timer, Adjustable 1-60 Seconds, Satin Stainless Steel

A variety of exit buttons, push buttons and contact configurations to fit several request-to-exit application needs.

Additionally, SDC's wave-to-open switches and motion sensors provide hands free compliance and convenience for touchless applications.

410 Series

Narrow Square Push Button Switches

420 Series

Single Gang Square Push Button Switches

430 Series

1-1/2” Mushroom Button Switches

440 Series

2-5/8” Mushroom Button Switches

450 Series

Vandal Stainless Steel Button Switches

460 Series

Capacitive Stainless Steel Button Switches

470 Series

No Touch Wave-To-Open Switches

MD-31D Series

Request-To-Exit PIR Motion Sensors

EP499 Series

Explosion Proof

Resources

• SDC Exit Switches & Sensors Cut Sheet
