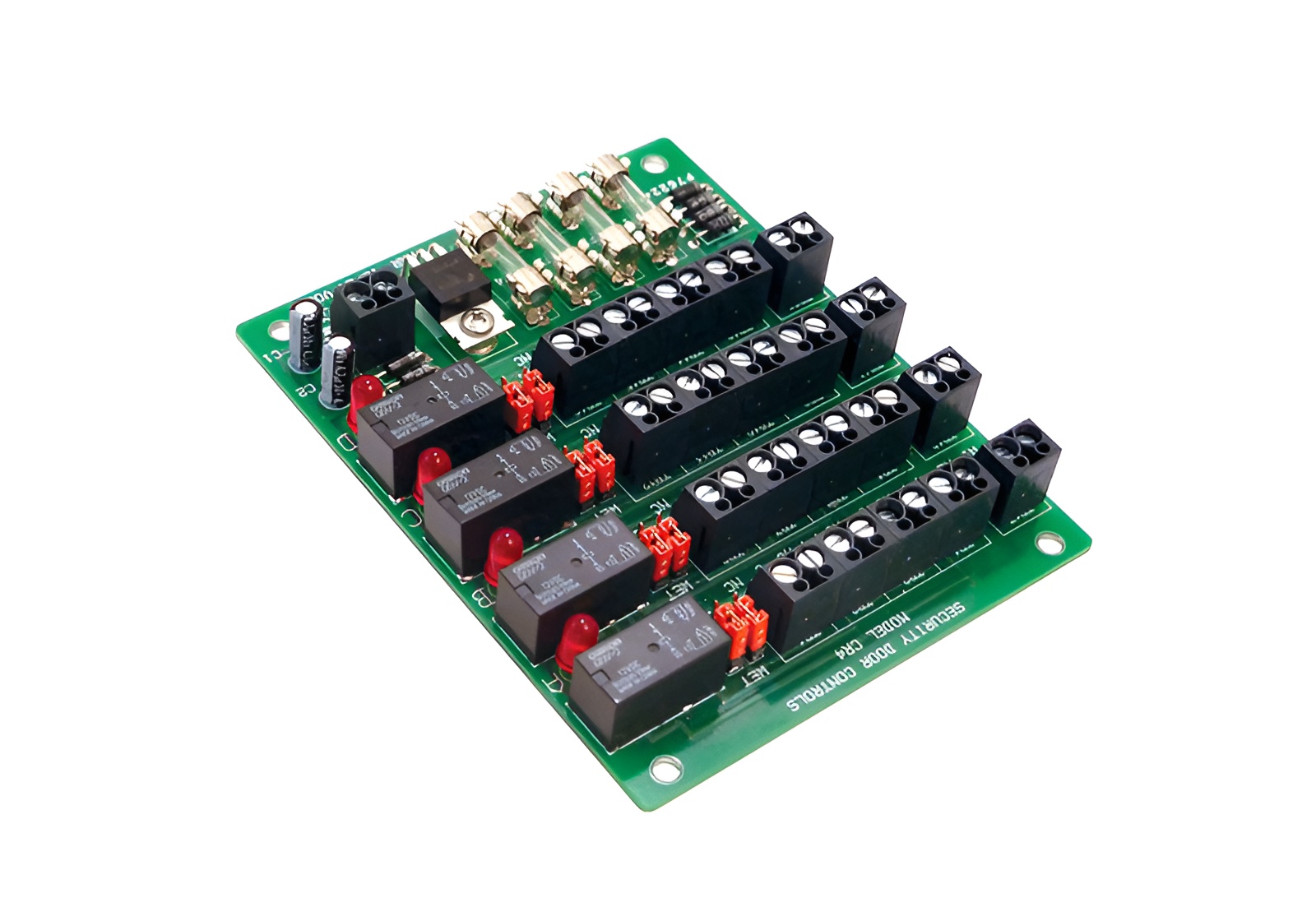

SDC CR4 Control Module - 4 Relay offers a robust solution for managing door control systems in commercial settings. This versatile door control board is designed for power supplies, featuring four fused SPDT field-selectable outputs that can operate in either wet or dry configurations. Additionally, it includes four non-fused SPDT outputs, each capable of handling up to 2 amps at 30VDC, ensuring reliable performance across a variety of applications. The SDC CR4 simplifies the installation and troubleshooting of access hardware components, making it easier for building professionals to integrate diverse systems. With four dry contact trigger inputs, this control module provides flexibility and adaptability to meet specific security requirements. Compatibility with various power supplies specifically developed for electric locks and access controls enhances its appeal for both new installations and retrofits. Designed for commercial use, the SDC CR4 is shipped via UPS and packaged individually. It operates on a transformer output of up to 5 amps, utilizing a direct current (DC) transformer type, making it an essential component for any advanced access control setup. Upgrade your door control systems with the reliability and efficiency of SDC’s CR4 Control Module.
Control Module - 4 Relay
Door Control Board for Power Supplies, Four Fused SPDT Field Selectable Wet or Dry Outputs, Four Non-Fused SPDT Outputs, 2 Amps at 30VDC, Four Dry Contact Trigger Inputs
Door control relay modules ensure compatibility of access hardware components and simplify system installation and troubleshooting. Different modules may be specified for one power supply.
Power Supplies have been developed specifically to support electric locks and access controls.
Commercial Residential: Commercial
Installation: Commercial
Output Volts: 30 V
Pack Qty: 1
Series: SDC Power Supplies
Subtype: Power Supplies
Transformer Output: Up to 5 Amps
Transformer Type: DC
Type: Power Supplies and Transformers
Unit of Measure: Each
Upc: 7.12905E+11
