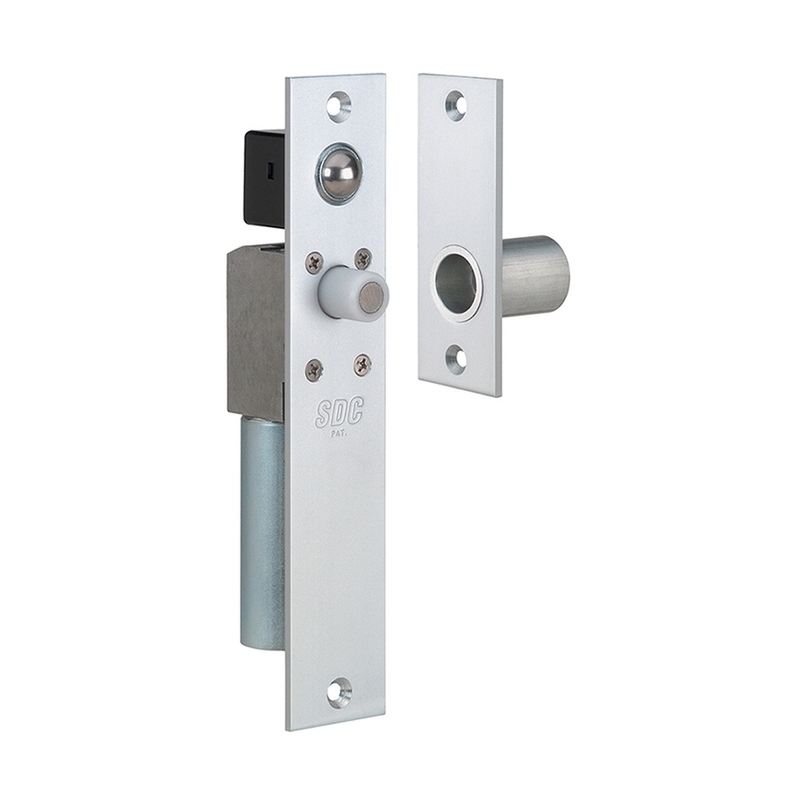

SDC FS23MIV Dual Right Angle Bolt Lock delivers superior security with its innovative dual failsafe feature, exclusive to SDC. Unlike conventional locking bolts that rely solely on a spring for retraction, the FS23MIV is designed to unlock with or without the assistance of the spring, ensuring reliability in all situations. This electric bolt lock is the only model listed by the California State Fire Marshal for securing perimeter entrance and emergency exit doors after hours, making it an ideal choice for safety-conscious facilities. Crafted with a sleek satin aluminum clear anodized finish, the FS23MIV is suitable for both metal and wood frame applications, enhancing the aesthetic of any door installation. Operating on a voltage of 12VDC or 24VDC, this electrically locked (fail safe) mortise lock features large repelling magnets within the bolt and strike. In the event of power interruption, the bolt is retracted and held back by a spring, and should that spring fail, repelling magnets will automatically eject the bolt from the strike, allowing for safe egress. Part of the SDC Cabinet, Gate, and Specialty Locks series, this electric lock is an essential addition for anyone prioritizing security and accessibility in their building projects.
Dual Right Angle Bolt Lock
Spacesaver Mortise Bolt Lock, Dual Failsafe, 12/24VDC, Satin Aluminum Clear Anodized
The FS23M dual failsafe feature is available only from SDC. Conventional failsafe locking bolts rely solely on a spring to retract the bolt while the FS23M bolt will unlock with or without the assistance of the spring. This is the only electric bolt lock listed by the California State Fire Marshal for locking of perimeter entrance and emergency exitdoors after-hours. Large repelling magnets are located within the bolt and strike. When power is interrupted the bolt is retracted and held back by a spring. Should the spring fail, repelling magnets eject the bolt from the strike, unlocking the door.
Cabinet Locks provide an easy, economical solution for security and keyless access control for a wide variety of cabinet doors, drawers, storage lockers and more.
Manufacturer surcharge: $ 0.0
Finish: 628/US28
Frame Application: Metal or Wood
Function: Electrically Locked (Fail Safe)
Operating Voltage: 12VDC/24VDC
Series: SDC Cabinet, Gate and Specialty Locks
Subtype: Electric Mortise Lock
Type: Electric Locks
Upc: 7.12905E+11
