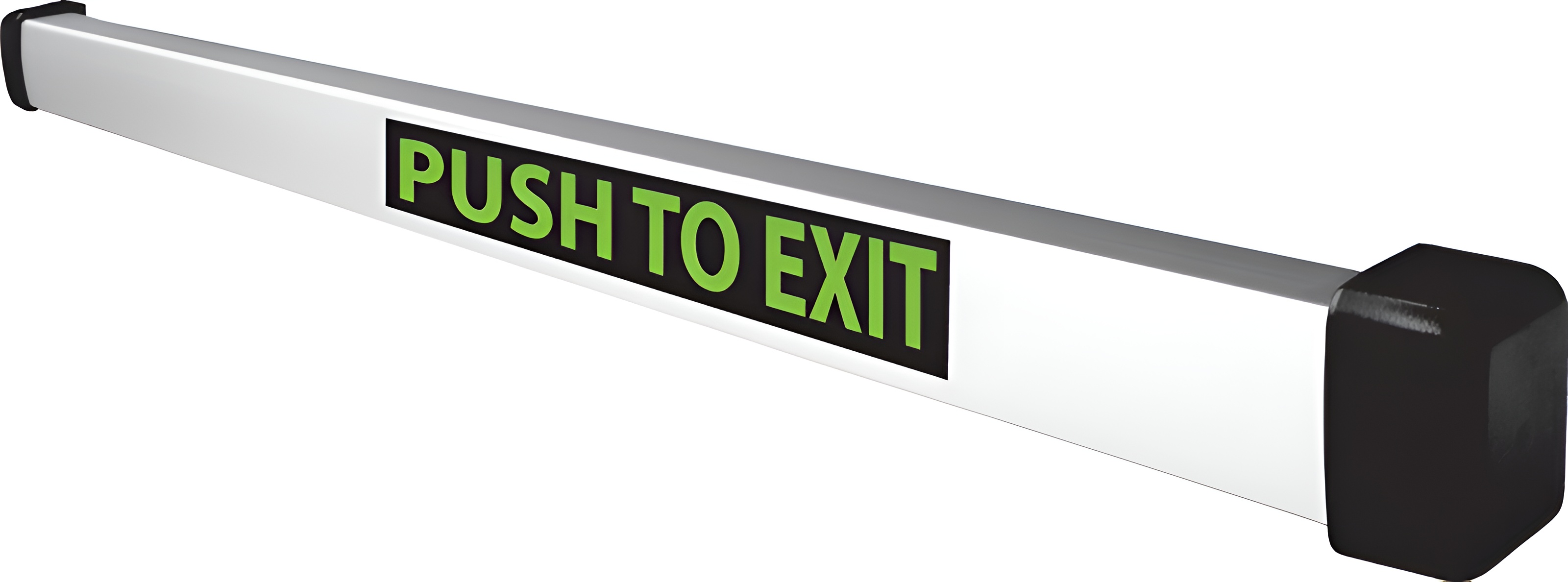

SDC MSB550-2S36 Dual Mechanical Switch Bar

SDC MSB550-2S36 Dual Mechanical Switch Bar delivers a reliable solution for safe and efficient egress through access-controlled doors. Designed with building codes in mind, this exit push bar features a mechanical switch that allows for uninhibited exit without the need for prior knowledge of operational requirements. With a single natural motion, users can easily exit secured areas equipped with magnetic locks. This push bar includes a PT-2U Power Transfer Loop and two SPDT contacts, ensuring seamless integration with existing access control systems. Its polished stainless steel finish (629/US32) not only enhances durability but also lends a sleek aesthetic suitable for commercial environments. Measuring 36 inches in length, the device is available in rim mount, mortise, and surface vertical rod configurations, catering to diverse installation needs. The SDC MSB550-2S36 is classified under the SDC Exit Devices and Sense Bars series and is specifically designed for commercial use. It does not include trim and is not fire-rated, making it a specialized choice for request-to-exit applications. With its robust construction and user-friendly design, this mechanical switch bar is an excellent addition to any access control setup, prioritizing safety and ease of use.

Dual Mechanical Switch Bar

Exit Pushbar with Mechanical Switch, Includes PT-2U Power Transfer Loop, 2 SPDT Contacts, Bright Stainless Steel

Building codes essentially state that egress through access controlled doors must not require prior knowledge of operational requirements. Request-to-exit push bars provide uninhibited egress through access controlled openings equipped with magnetic locks, while eliminating the need for prior knowledge of egress operation and enabling egress with a single natural motion.

Available in rim mount, mortise and surface vertical rod configurations.
