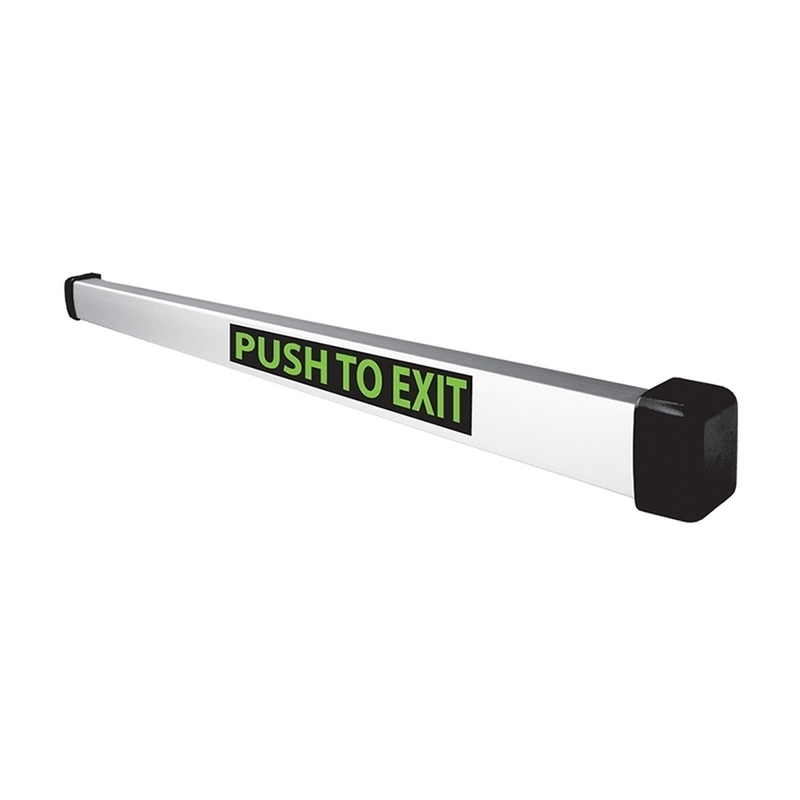

SDC MSB550V36 Mechanical Switch Bar

SDC MSB550V36 Mechanical Switch Bar offers a reliable solution for egress through access-controlled doors, ensuring compliance with building codes that require easy exit without prior knowledge of operational requirements. This exit push bar features a mechanical switch and comes equipped with a PT-2U Power Transfer Loop, allowing for seamless integration with magnetic locks. Its design promotes uninhibited egress, enabling individuals to exit with a simple, natural motion-an essential feature for safety in commercial environments. Measuring 36 inches in length, the MSB550V36 is constructed with a matte silver finish (628/US28) that not only enhances its aesthetic appeal but also adds durability. The device is suitable for various configurations, including rim mount, mortise, and surface vertical rod options, catering to diverse installation needs. Designed specifically for commercial applications, this active dummy device is part of the SDC Exit Devices and Sense Bars series, making it a reliable choice for building professionals and facility managers. While it is not fire-rated, its robust construction and functionality make it an ideal choice for enhancing safety and accessibility in any commercial setting. Trust the SDC MSB550V36 for a dependable exit solution that prioritizes both security and ease of use.

Mechanical Switch Bar

Exit Pushbar with Mechanical Switch, Includes PT-2U Power Transfer Loop, Satin Aluminum Clear Anodized

Building codes essentially state that egress through access controlled doors must not require prior knowledge of operational requirements. Request-to-exit push bars provide uninhibited egress through access controlled openings equipped with magnetic locks, while eliminating the need for prior knowledge of egress operation and enabling egress with a single natural motion.

Available in rim mount, mortise and surface vertical rod configurations.
