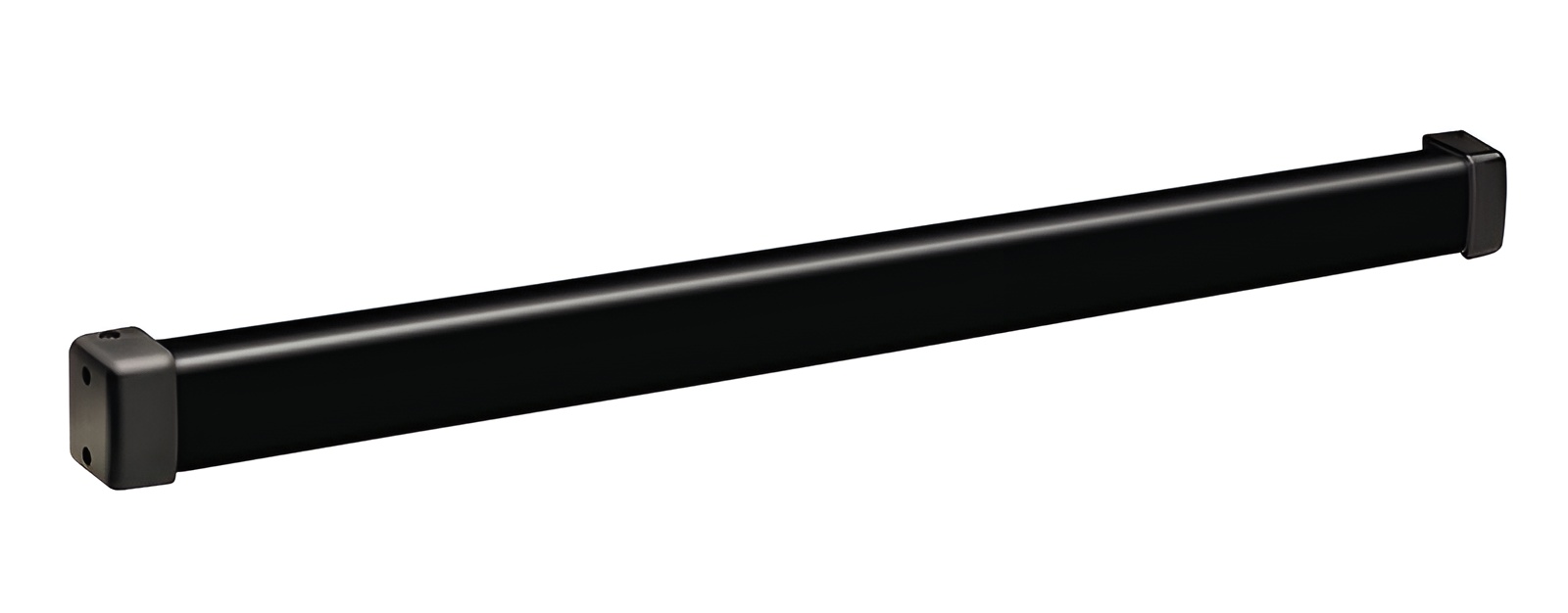

SDC PSB560Y36 Pressure Sensor Bar

SDC PSB560Y36 Pressure Sense Bar is engineered to ensure a seamless egress experience through access-controlled doors. This advanced SureExitSense Bar features a durable black anodized aluminum construction and comes with a 10 ft. cable/connector along with a PT-2U armored power transfer loop, making it a robust solution for commercial applications. The patented pressure sense technology is designed to comply with building codes that dictate egress must be achievable without prior knowledge of operational requirements. When slight pressure is applied to the non-latching bar, either of the two redundant solid-state pressure sensors is activated, prompting the immediate release of electromagnetic door locks. This feature guarantees safe and efficient exit in emergency situations. Measuring 36 inches in length, the PSB560 is available in various configurations, including rim mount, mortise, and surface vertical rod options, enhancing its versatility for different door setups. Designed specifically for commercial installation, this active dummy device with a switch falls under the SDC Exit Devices and Sense Bars series, making it a reliable choice for professionals seeking quality and compliance in their security solutions.

Pressure Sense Bar

SureExitSense Bar, Includes 10 Ft. Cable/Connector and PT-2U Armored Power Transfer Loop, Black Anodized Aluminum

Stable and Reliable Pressure Sense Technology Building codes essentially state that egress through access controlled doors must not require prior knowledge of operational requirements. Meeting this criteria, SDCÍs patented PSB560 Sure Exit Pressure Sense Bar is designed to release electromagnetic door locks for uninhibited egress. When slight pressure is applied to the non-latching bar, either of the two redundant solid state pressure sensors are actuated causing the electronics to immediately release the electromagnetic door locks.

Available in rim mount, mortise and surface vertical rod configurations.
