SDC PTH-10Q-DPS Power Transfer Hinge offers a reliable solution for integrating electrical components into doors while maintaining a sleek and professional appearance. This full mortise hinge features ten conductors, supporting up to 1 Amp at 12/24V per pair, making it ideal for use with electric locks and exit devices. Crafted from satin stainless steel with a matte silver finish, it not only enhances durability but also complements various architectural styles. Designed for commercial applications, the SDC PTH-10Q-DPS ensures a secure and concealed pathway for wiring, reducing the risk of vandalism and damage. Its non-removable pin type adds an extra layer of security, making it suitable for high-traffic areas such as public facilities and airports. This hinge also includes a door status contact, allowing for effective monitoring and control of access, which is vital for preventing theft and managing pedestrian flow. The standard weight and five knuckles of this hinge ensure smooth operation and longevity, making it a dependable choice for any commercial installation. With its ability to control wandering patients and guard against infant abductions, the SDC PTH-10Q-DPS Power Transfer Hinge is a valuable addition to any security-conscious environment.
Power Transfer hinge

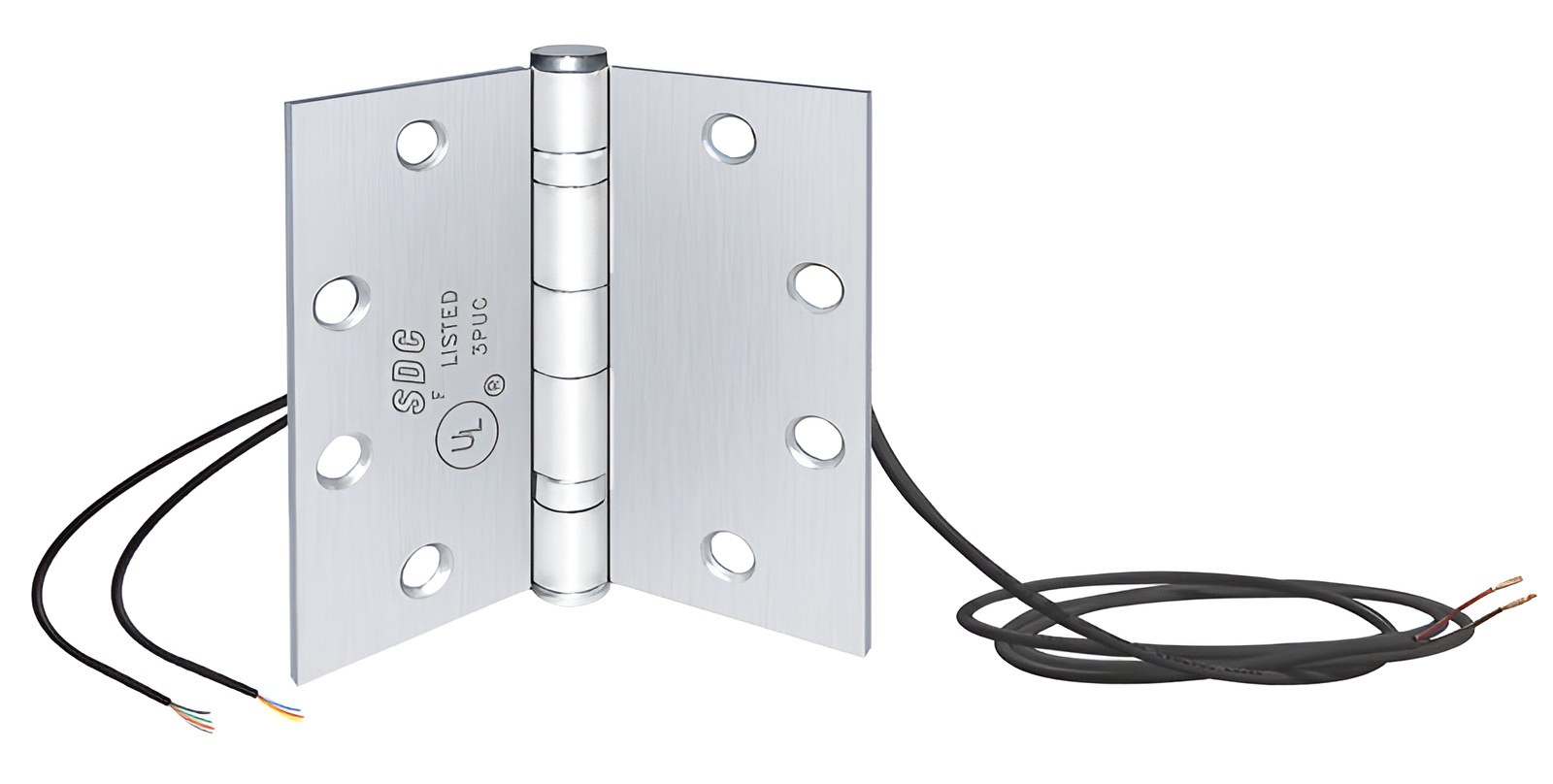

PTH Series Power Transfer Hinge, Ten (10) Conductor at 1 Amp, 12/24V Per Pair, 4.5" by 4.5" Standard Weight, with Door Status Contact, Satin Stainless Steel
Electric Power transfer hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices.
Stop Theft, Control Pedestrians in Public Facilities & Airports, Control Wandering Patients, Guard Against Infant Abduction.
Bearing Type: Pin in Barrel
Commercial Residential: Commercial
Finish: 630/US32D
Finish Family: Matte Silver
Hinge Type: Hinge, Full Mortise
Installation: Commercial
Knuckles: 5
Pin Type: Non-Removable
Power Transfer: 10 Wire
Series: SDC Delayed Egress Locks and Electrical Accessories
Subtype: Electrified Hinges
Tip Style: Standard
Type: Hinges and Pivots
Weight: Standard Weight
