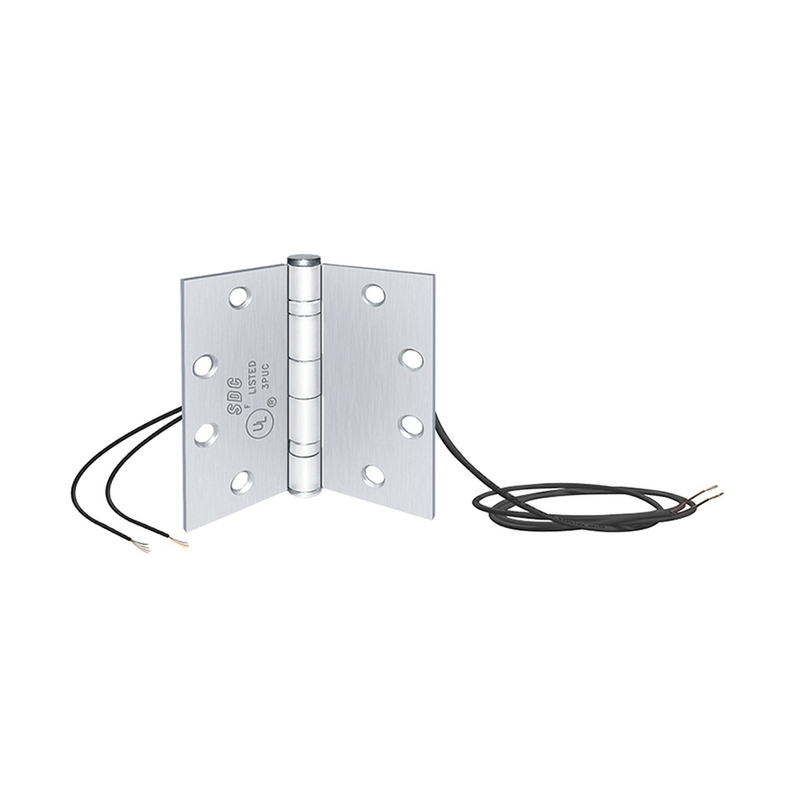

SDC PTH-10Q Power Transfer Hinge

SDC PTH-10Q Power Transfer Hinge offers a robust solution for integrating electrical systems into door hardware. This full mortise hinge features ten conductors, capable of handling 1 Amp at 12/24V per pair, ensuring a reliable power transfer from the frame to the door. With dimensions of 4.5" by 4.5", it is designed for standard weight applications, making it suitable for a variety of commercial settings. Constructed from satin stainless steel, the PTH-10Q not only meets aesthetic needs with its matte silver finish but also provides a vandal-resistant design, which is crucial for high-traffic areas like public facilities and airports. This hinge effectively supports electric locks and exit devices, helping to prevent theft and control pedestrian access, while also enhancing safety features in sensitive environments such as hospitals. The hinge includes five knuckles and a non-removable pin type for added security, making it a durable choice for commercial installations. Additionally, its seamless integration into existing door systems ensures a clean look while maintaining functionality. Ideal for projects that require electrical access without compromising on security, the SDC PTH-10Q is a practical addition to any building professional's toolkit.

Power Transfer hinge

PTH Series Power Transfer Hinge, Ten (10) Conductor at 1 Amp, 12/24V Per Pair, 4.5" by 4.5" Standard Weight, Satin Stainless Steel

Electric Power transfer hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices.

Stop Theft, Control Pedestrians in Public Facilities & Airports, Control Wandering Patients, Guard Against Infant Abduction.
