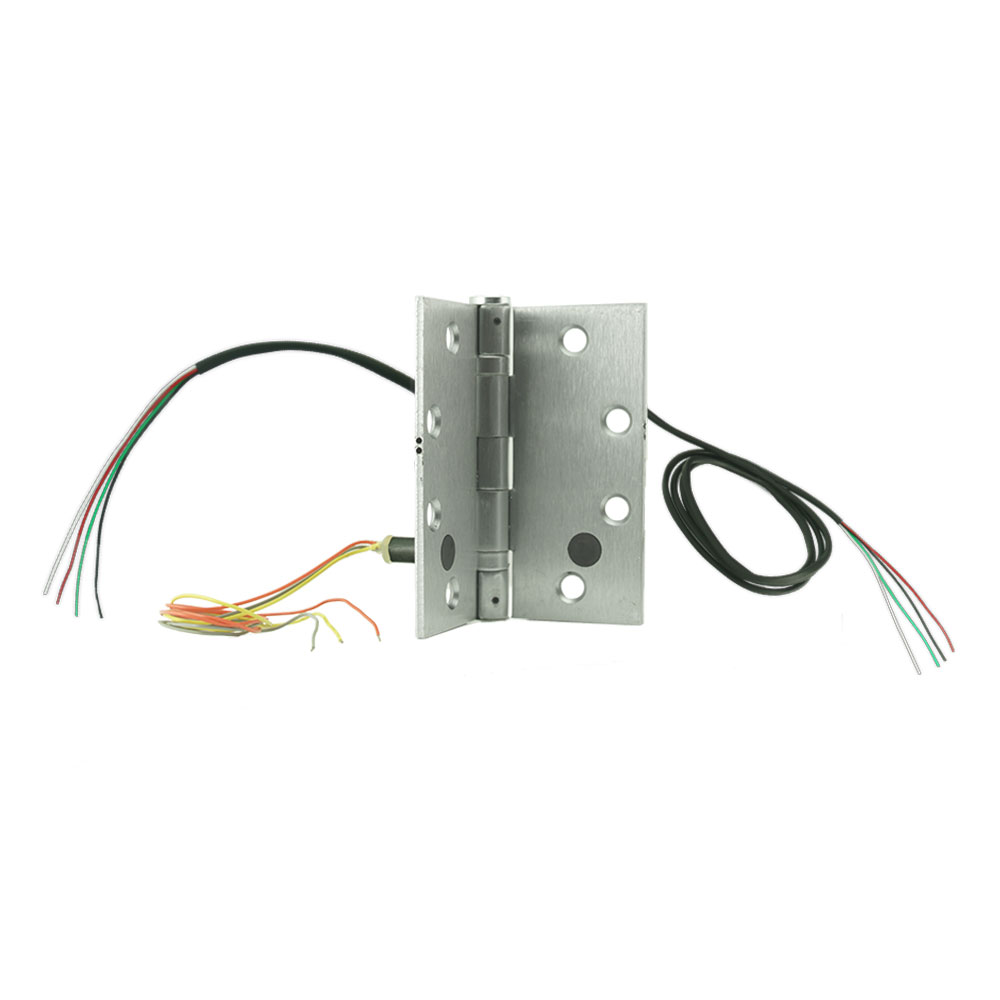

SDC PTH-2-4QDPS Power Transfer Hinge is engineered to seamlessly integrate power transfer capabilities into your access control systems. This robust hinge features a 16 Amp inrush capacity, ensuring reliable performance even under demanding conditions. With six conductors, it efficiently accommodates a range of electrical needs, including a door status contact that provides critical feedback for security monitoring. Designed for commercial applications, the PTH-2-4QDPS offers 1-Pair of 16 Amp inrush and up to 4 Amp continuous, along with 2-Pair of 1 Amp at 12/24V. The concealed door position contact operates at 250 mA @ 30VDC, ensuring optimal functionality while maintaining a sleek appearance. Measuring 4-1/2" x 4-1/2", this standard weight hinge is finished in a sophisticated 626 dull chrome, making it suitable for various architectural styles. As part of the SDC Access Control series, this hinge is a perfect fit for commercial installations that prioritize security and convenience. Each unit ships via UPS, making it simple to obtain when you need it. Invest in the SDC PTH-2-4QDPS Power Transfer Hinge and enhance your door hardware solutions with reliable power transfer and advanced access control features.
Power Transfer hinge
16 Amp Inrush, 6 Conductor Power Transfer Hinge, with Door Status Contact, 1-Pair 16 Amp Inrush, 4 Amp Continuous; 2-Pair 1 Amp @ 12/24V, Concealed Door Position Contact, 250 mA @ 30VDC, 4-1/2" x 4-1/2", Standard Weight, 626 Dull Chrome
SDC has a variety of standalone digital keypad and proximity card access control systems equipment to meet any need.
Manufacturer surcharge: $ 0.0
Commercial Residential: Commercial
Installation: Commercial
Pack Qty: 1
Series: SDC Access Control
Subtype: Access Control
Type: Access Control
Unit of Measure: Each
