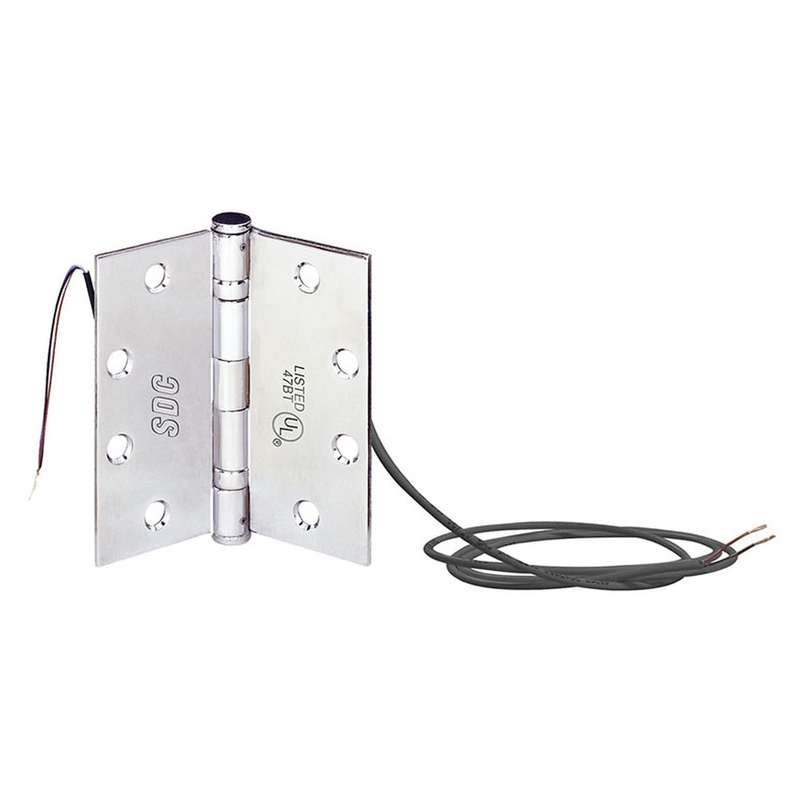

SDC PTH-4Q Power Transfer Hinge

SDC PTH-4Q Power Transfer Hinge offers a robust solution for electrically powered doors, designed with a four-conductor system that handles 1 Amp at 12/24V per pair. Measuring 4.5" by 4.5", this standard weight hinge is constructed from satin stainless steel, ensuring durability and a professional appearance. This electric power transfer hinge provides a concealed and vandal-resistant method for routing wires from the door frame to doors equipped with electric locks and exit devices. Ideal for various commercial applications, it enhances security measures by effectively stopping theft, controlling pedestrian access in public facilities and airports, managing wandering patients, and guarding against infant abduction. The SDC PTH-4Q features a pin-in-barrel bearing type and a non-removable pin, providing added security and stability. Its full mortise hinge type is suitable for commercial installations, while the matte silver finish (630/US32D) complements modern architectural designs. With five knuckles for strength and a standard tip style, this hinge is built to last. Designed for use with SDC Delayed Egress Locks and Electrical Accessories, the PTH-4Q is an excellent choice for any facility prioritizing both functionality and security.

Power Transfer hinge

PTH Series Power Transfer Hinge, Four (4) Conductor at 1 Amp, 12/24V Per Pair, 4.5" by 4.5" Standard Weight, Satin Stainless Steel

Electric Power transfer hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices.

Stop Theft, Control Pedestrians in Public Facilities & Airports, Control Wandering Patients, Guard Against Infant Abduction.
