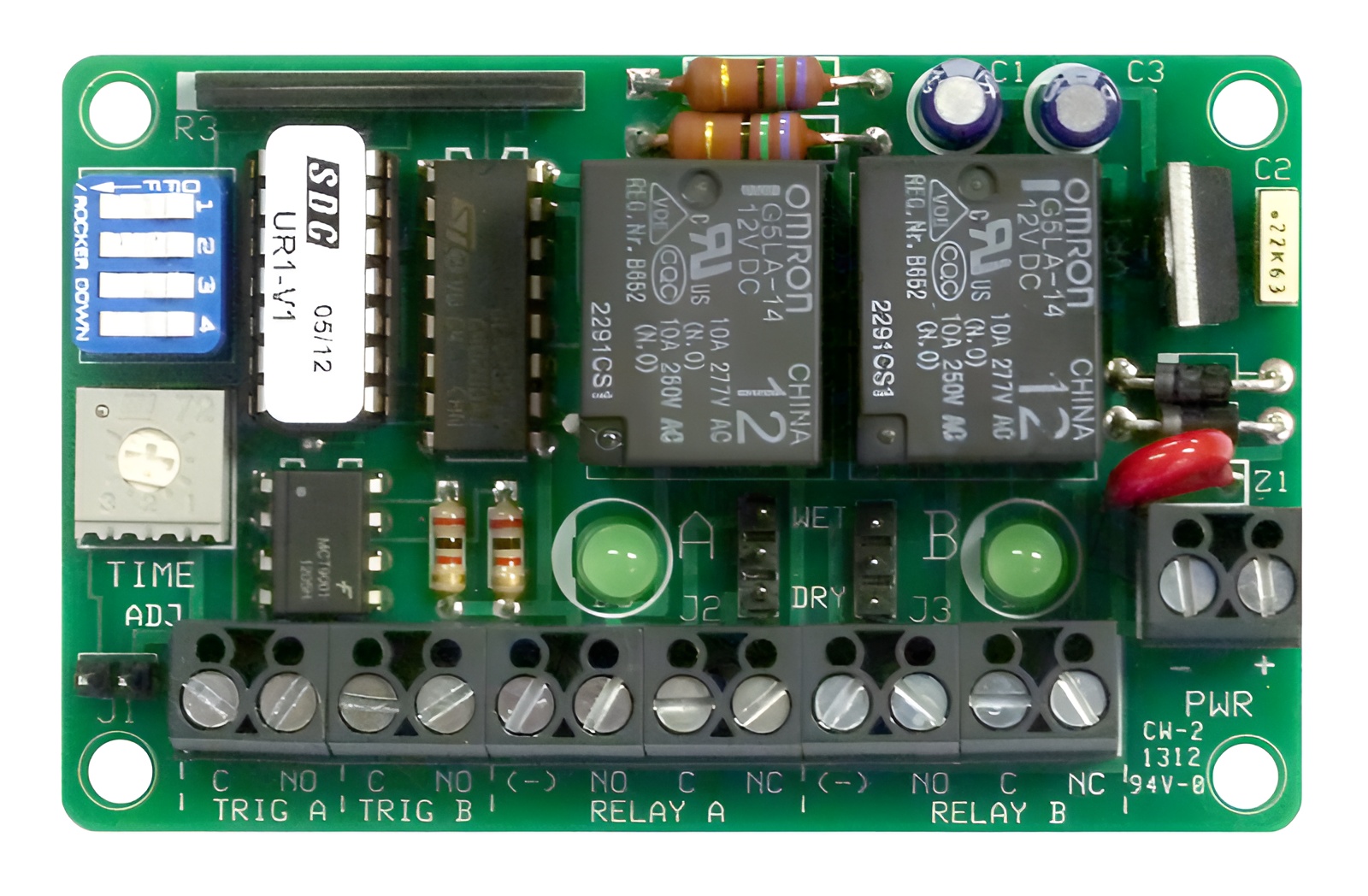

SDC UR-1 Controller - 2 Relays offers a versatile solution for managing access control across up to two doors. This universal controller features 12 selectable relay and system logic modules, allowing for tailored lock control and monitoring. It operates at 12 or 24 volts, providing a robust output of 120/175mA. The controller is equipped with two Form "A" SPDT, N.O. inputs and two Form "C" SPDT outputs, ensuring compatibility with various systems. The UR Series simplifies installation with individually configurable relay output modes, which can be set as either Dry Contact or Voltage (Wet) Output. Users can choose to operate relays independently or in tandem, enhancing operational flexibility. This adaptability makes the UR-1 an ideal choice for both commercial environments and complex security needs. Designed with the professional in mind, SDC’s access control systems include a range of standalone digital keypads and proximity card readers, ensuring comprehensive security solutions tailored to your requirements. The UR-1 Controller is shipped via UPS, making it easy to acquire and integrate into your existing security infrastructure. Elevate your access control with the SDC UR-1 Controller, where functionality meets reliability.

Controller - 2 Relays

Universal Controller for up to 2 Doors, 12 Selectable Relay and System Logic Modules, 12/24 at 120/175mA, 2 Form "A" SPDT, N. O. Inputs, 2 Form "C" SPDT Outputs

UR Series Universal Door Controllers provide a choice of individual dip switch selectable relay operating modes or system modes for lock control, monitoring, communicating door or lock system logic. Relay output modes may be individually configured as a Dry Contact or Voltage (Wet) Output. Relays may be configured to work independently or in tandem with adjacent relay.

SDC has a variety of standalone digital keypad and proximity card access control systems equipment to meet any need.
