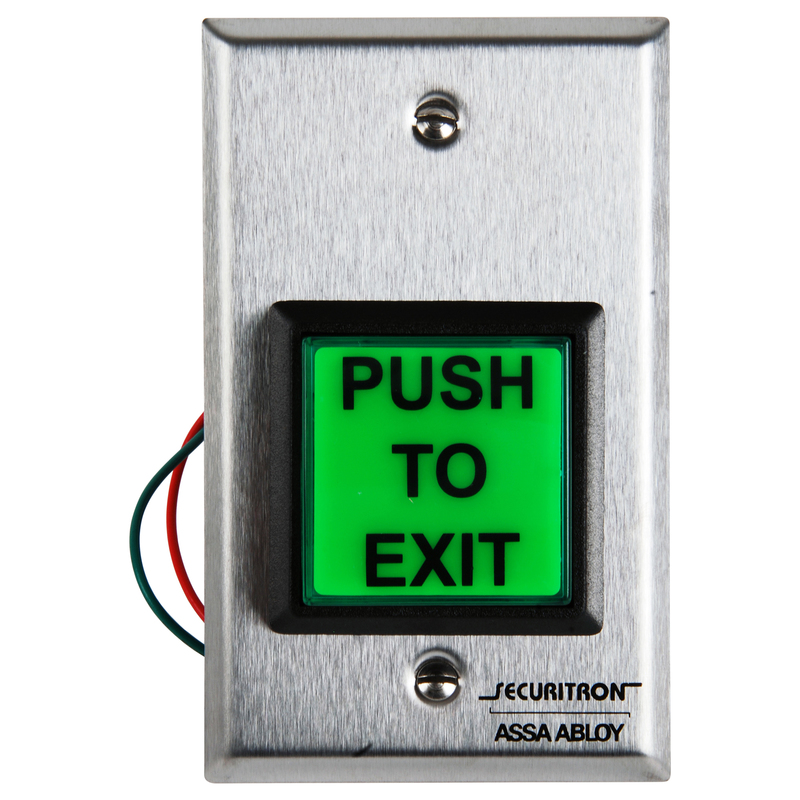

Securitron EEB2 Emergency Exit Button with 30 Second Timer SG Green / Red / Handicap Satin Stainless Steel Finish is engineered for reliability and safety in emergency situations. Designed as a backup device to comply with BOCA, NFPA, IBC, and VBC codes, this exit button ensures efficient access during critical moments. Featuring SPST 3 Amp Wet Normally Closed contacts, the EEB2 allows for momentary activation, releasing the door for a 30-second duration. For added convenience, users can re-trigger the button for an additional 30 seconds of release, making it an ideal solution for high-traffic areas. Constructed from durable satin stainless steel, the EEB2 not only meets fire-rated requirements but also boasts a sleek appearance that blends seamlessly with any commercial environment. The compact dimensions of 2-3/4" x 4-1/2" and a button size of 2" x 2" make it easy to install and operate. Additionally, this product is backed by MagnaCare, offering a limited lifetime warranty with no fault, no questions asked, providing peace of mind for building professionals and property owners alike. With an operating voltage of 12 or 24 Volt DC / AC and UL 294 Listing, the Securitron EEB2 is a dependable choice for enhancing safety and accessibility in your facility.
As the world’s premier supplier of electric locking systems and access control components, Securitron, an ASSA ABLOY Group company, excels in manufacturing a wide range of products, from electromagnetic locks and accessories, to exit devices, power supplies, digital entry systems and much more. Securitron is known for its continued commitment to excellence in customer service and product quality.
Attributes
Ansi: 294
Application: CM EL
Baa Qualified: Yes
Burglar Rated: No
Button Color: Clear
Button Label: PUSH TO EXIT or ADA Symbol
Button Size: 2" x 2"
Category: Commercial Electronic Accessories
Clazz: SE
Color: Satin Stainless Steel
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Current 12v DC (m A): 28
Current 24v DC (m A): 26
Dimension: 2-3/4" x 4-1/2"
Finish: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: No
Hazardous Material: NO
Height (in): 4.5
Illumination: Optional
Installation: Commercial
Item Class Description: Emergency Exit Button with 30 Second Timer SG, Green / Red / Handicap
Item Type Keyword: Button
LED: Yes
LED Indicates: NA
Limited Warranty: Lifetime
Manufacturer Warranty: Limited Lifetime Warranty
Material: Stainless Steel
Maximum Operating Temperature (° F): 110
Minimum Operating Temperature (° F): 32
Mounting: Single Gang or Narrow Stile
Mounting Plate Size: 1 Gang
No Of Inners: 1
Number Of Inners: 1
Operating Voltage: 12 or 24 Volt DC / AC
Options: Illumination Kits
Order_ Qty: 1
Origin: USA
PO date: 2024-09-09
Pack Qty: 1
Plastic Color: Black
Product Dimension: 2-3/4" x 4-1/2"
Product Height: 2.5"
Product Length: 4.5"
Product Width: 2"
Relay Action: Time Delay
Relay Type: N/C
Restrictions: None
Series: Securitron Exit Devices
Ship Weight: 0.5 lbs.
Size: 2" square or 1x3/4"
Subcategory: Buttons and Actuators
Subtype: Electronic Accessories
Switch: SPDT - Single Pole Double Throw
Switching Capacity (amps): 3
Type: Electronics
Ul Listing: 294
Ul Listing Type: UL 294 Listed
Unit of Measure: Each
Upc: 78460702807988
Weather Resistance: Indoor use only
Width (in): 2.75
