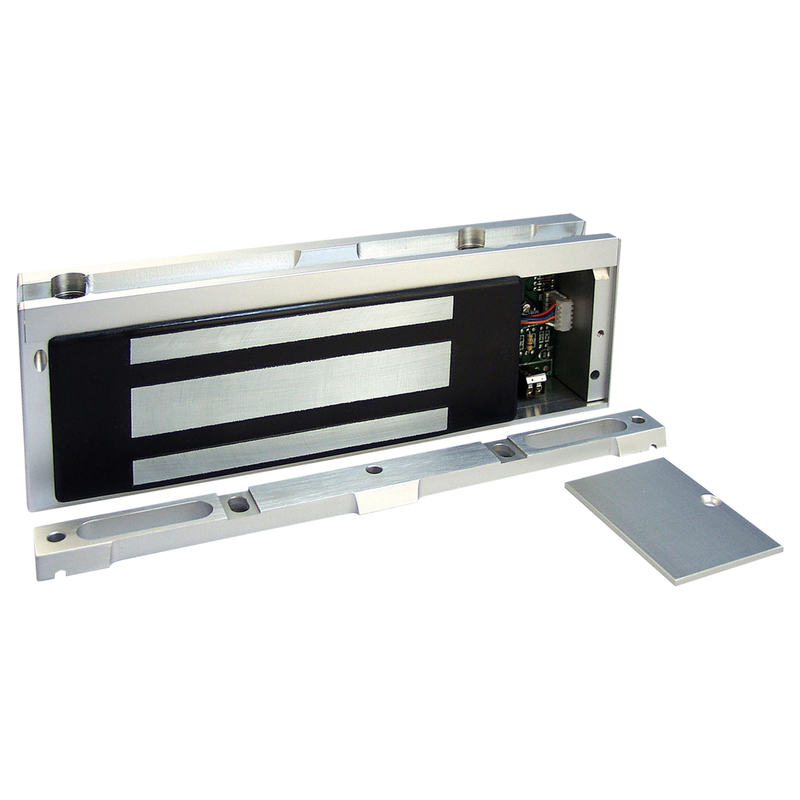

Securitron M68 Maglock

Your Price: $522.60

Retail Price:$871.000

Your Savings:$348.40(40%)

Maglock, 1200lb Holding Force, Bracket Mount, 12/24VDC, Satin Aluminum Clear Anodized

Part Number : STR_M68

Availability: 34 In Stock

Quantity

Description

Securitron M68 Maglock

Ideal for traffic control in high-use areas where higher security is needed, the M68 electromagnetic lock provides reliability, durability and strength with low maintenance and efficient power consumption. Bracket mounting and wiring chamber provide ease of installation. Automatic dual-voltage. Instant release circuit with no residual magnetism. Efficient, low power usage. Rust resistant with all ferrous metal surfaces plated for durability. Holding Force: 1,200 lbs. (544kg). Dimensions: Magnalock: 10-1/2"L x 2"D x 3-5/8"H, Strike: 6"L x 1/2"D x 2-3/4"H. Electrical: 250 mA at 12 VDC, 125 mA at 24 VDC. Operating Temperature: +32 to +110F [0 to +43C]. Indoor use only.

Attributes

Manufacturer surcharge: $ 0.0

Ansi: A156.23, E18501-1000

Baa Qualified: Yes

Base Material: Aluminum

Burglar Rated: No

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Current 12v DC (m A): 275

Current 24v DC (m A): 150

Finish: 628/US28

Finish Description: Satin Aluminum Clear Anodized

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Grade: Grade 2

Holding Force (lbs): 1200

Installation: Commercial

Limited Warranty: Lifetime

Magnet Depth (in): 2

Magnet Height (in): 3.625

Magnet Length (in): 10.5

Maximum Operating Temperature (° F): 110

Minimum Operating Temperature (° F): 32

Operating Voltage: 12VDC/24VDC

Origin: USA

Outdoor Rated: No

Pack Qty: 1

Preload Capable: Yes

Product Height: 3.63"

Product Length: 10.5"

Product Width: 2"

Restrictions: None

Series: Securitron Smart Magnalocks

Ship Weight: 13 lbs.

Subtype: Maglock

Type: Electric Strikes, Bolts, Magnets

Ul Listing: 10C, 294,

Unit of Measure: Each

Voltage: 12/24
