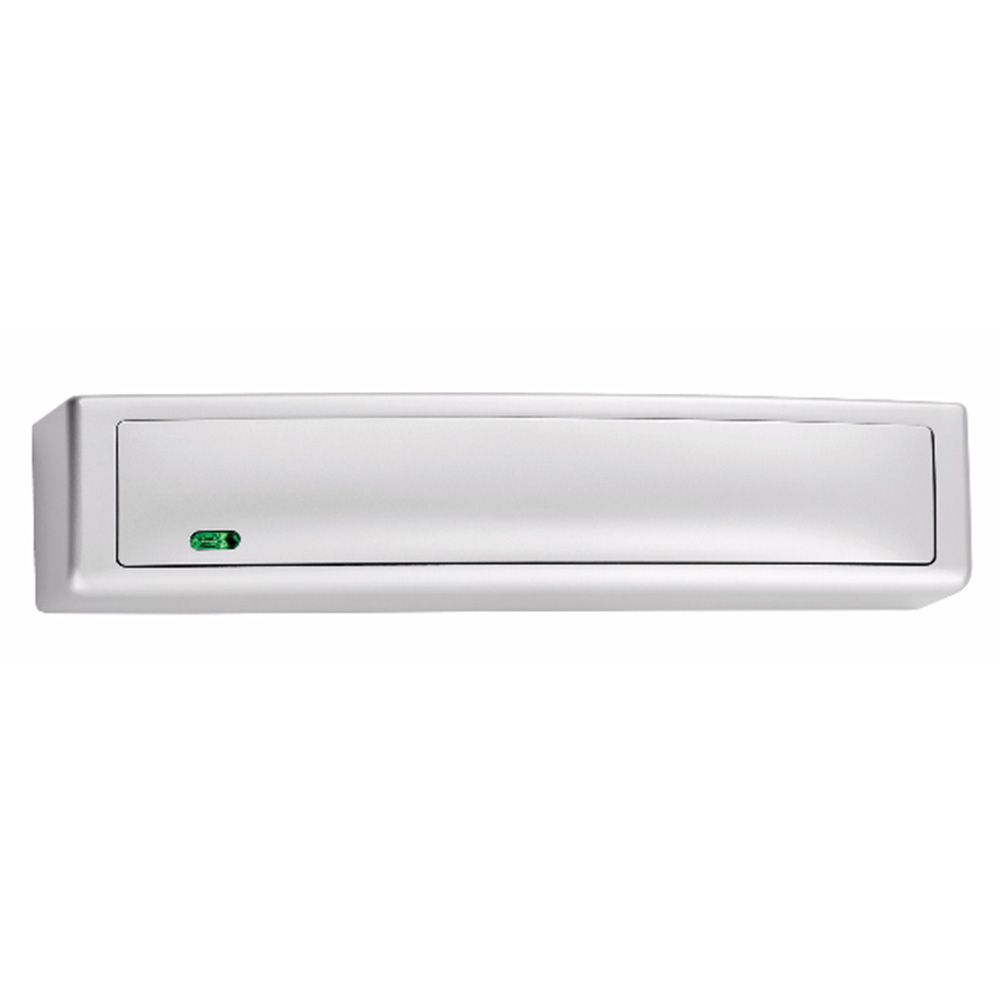

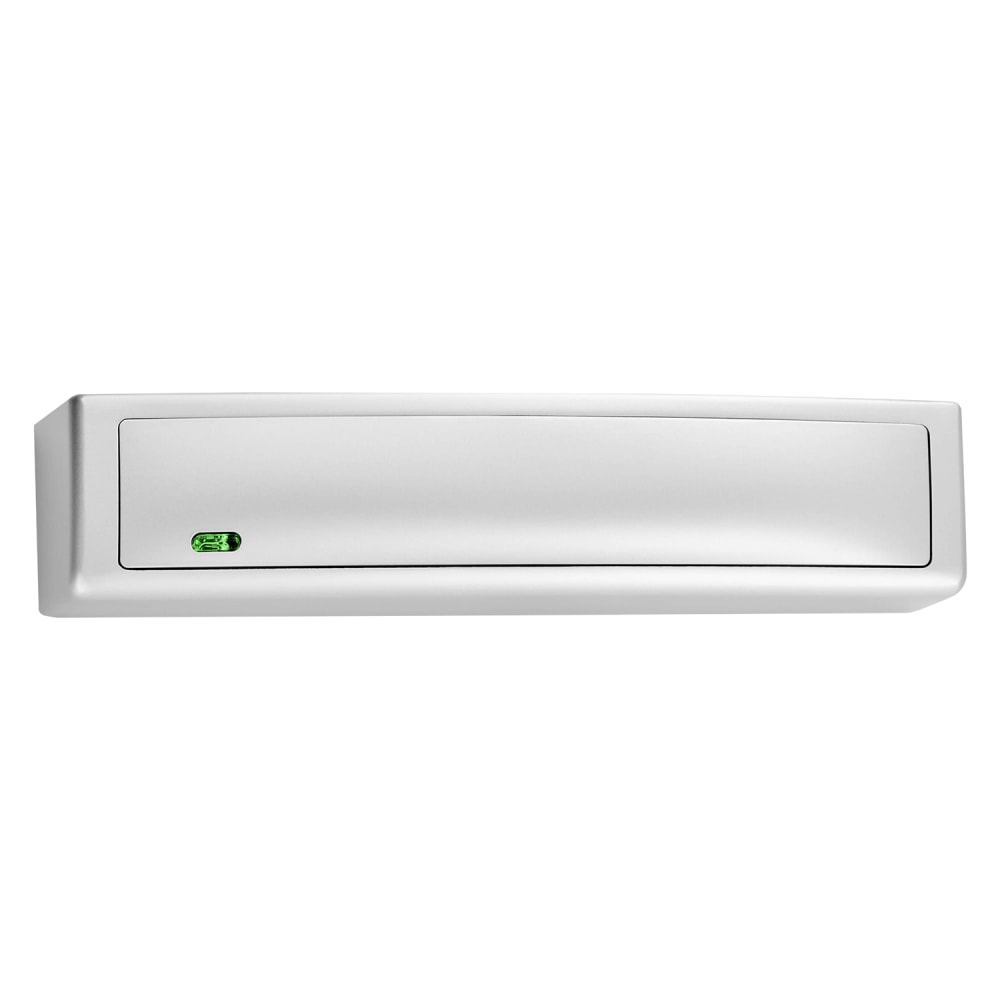

Securitron M680EBD628 EcoMag 1200 Pound Intelligent Magalock with BondStat Monitor and Door Position Switch in an elegant aluminum finish combines exceptional security with advanced technology. This innovative electromagnetic lock is designed to deliver a robust 1200-pound holding force, making it ideal for high-traffic commercial environments. The M680E model features automatic dual voltage capability, allowing it to operate on either a 12 or 24 VDC power supply, ensuring flexibility for various installation needs. Its collapsing blind nuts provide secure anchoring with a tensile strength of 1000 pounds, ensuring resilience under pressure. Manufactured in an ISO9001 certified facility in Phoenix, AZ, you can trust in the quality and reliability of this product. Additionally, the EcoMag includes a BondStat monitor and door position switch, enhancing security by providing real-time monitoring of the locking status. With the MagnaCare warranty, you receive lifetime replacement coverage, with no questions asked, solidifying Securitron’s commitment to customer satisfaction. The M680E is UL listed for safety and fire rating, making it a reliable choice for your security needs. Dimensions of the lock are 11-1/2" x 2-1/2" x 2-1/8", and it is designed for doors with a thickness of 1-3/4".
As the world’s premier supplier of electric locking systems and access control components, Securitron, an ASSA ABLOY Group company, excels in manufacturing a wide range of products, from electromagnetic locks and accessories, to exit devices, power supplies, digital entry systems and much more. Securitron is known for its continued commitment to excellence in customer service and product quality.
Attributes
Manufacturer surcharge: $ 0.0
Application: CM EL
Category: Commercial Electronic Devices
Clazz: SE
Commercial Residential: Commercial
Country of Origin: Usa
Current 12v DC (m A): 515
Current 24v DC (m A): 325
Dimension: 11-1/2" x 2-1/2" x 2-1/8"
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: 628 Satin aluminum, clear anodized
Finish Code: 628
Finish Description: Satin Aluminum Clear Anodized
Finish Family: Matte Silver
Fire Rated: Yes
Function: Electrically Locked (Fail Safe)
Grade: Grade 2
Hazardous Material: NO
Holding Force: 1200 Pound
Holding Force (lbs): 1200
Installation: Commercial
Magnet Depth (in): 2.5
Magnet Height (in): 2.5625
Magnet Length (in): 11.5
Magnet Size: 2-9/16" x 11-1/2" x 2-1/2"
Manufacturer Warranty: Limited Lifetime Warranty
Material: Stainless Steel
Maximum Operating Temperature (° F): 110
Minimum Operating Temperature (° F): 32
Monitoring Options: BondSTAT Monitor & Door Position Switch
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
Outdoor Rated: No
Power Supply: Wired
Preload Capable: Yes
Product Type Used With: Maglocks
Series: M680E Series
Ship Weight: 8 lbs.
Subcategory: Maglocks
Ul Listing Type: UL10C, UL1034, UL294
Unit of Measure: Each
Upc: SEC100M680EBD628
Voltage: 12/24
