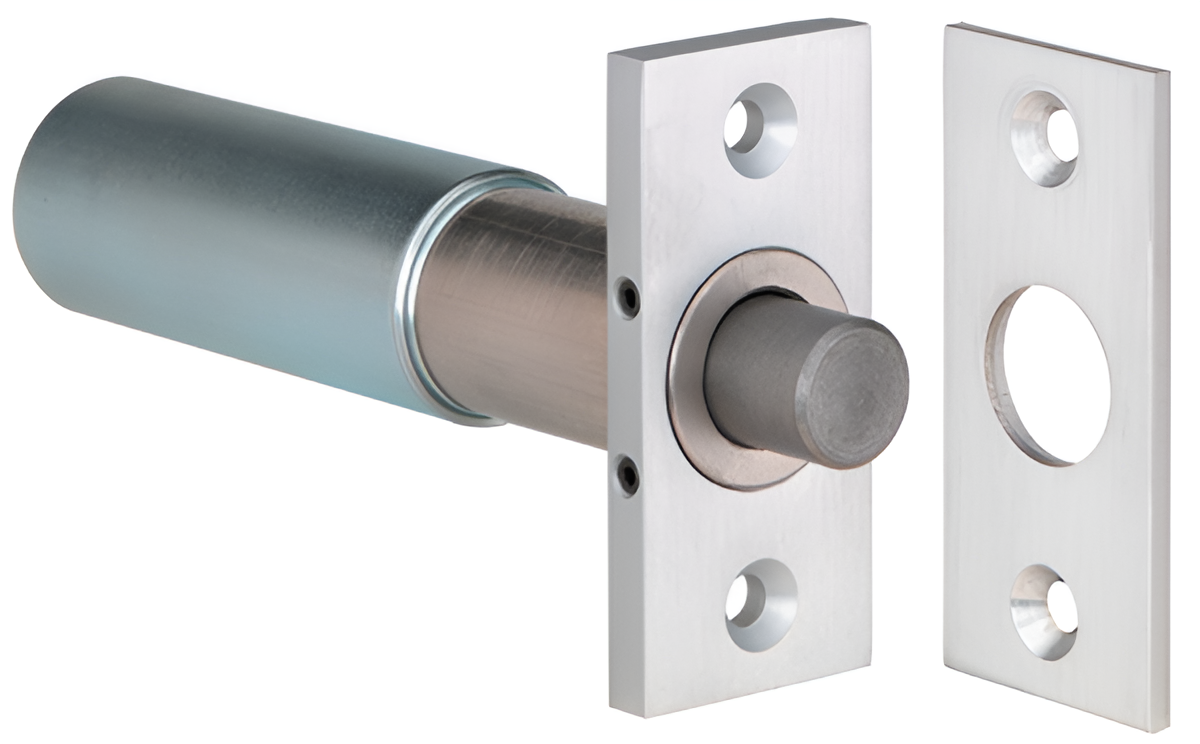

Security Door Controls 110I-V Direct Throw Mortise Bolt Lock, Failsafe, 628/US28 Satin Aluminum

Security Door Controls 110I-V Direct Throw Mortise Bolt Lock is a reliable solution for securing your property with its failsafe operation. Designed specifically for mortise mounting, this lock features a sturdy 1/2" diameter stainless steel bolt that provides a robust barrier against unauthorized access. The bolt throw is adjustable up to 1/2", accommodating varying door gaps, making it ideal for unique applications. This model stands out with its field-selectable dual voltage inputs of 12/24 VDC, allowing for versatility in installation. It draws 900 mA at 12 VDC and 450 mA at 24 VDC, ensuring efficient power consumption. With a durable finish in satin aluminum (V/628), the lock not only performs well but also complements a variety of architectural styles. The 110I-V is part of a broader line of SDC bolt locks, which includes features like voltage and current spike protection, highlighting its reliability in demanding environments. Weighing in at just 2 lbs, it is easy to handle during installation. This direct throw bolt lock is an excellent choice for building professionals and homeowners seeking quality security solutions. Ensure peace of mind with the Security Door Controls 110I-V, designed to meet your locking needs effectively.

Direct Throw Mortise Bolt Lock, Failsafe, 628/US28 Satin Aluminum

Conventional direct throw bolt locks are the most basic bolt locks available. All SDC bolt locks are available in failsafe or failsecure operation. Not recommended for wood applications. 110I and 210H models feature a bolt assembly that is adjustable forward up to 1" past the face plate to accommodate wide door gaps or special applications. 160I and 260H models feature the same adjustable bolt assembly and are also equipped with an automatic relock ball switch. Automatic relock ball switches keep the bolt retracted while the door is open. The door depresses the ball switch on closure, causing the bolt to project automatically, locking the door. Additionally, ball switches are field adjustable to compensate for wide door gap and bidirectional to permit use on swinging and sliding doors. 180AI and 280AH models feature a universal surface mount design with an automatic relock switch to provide controlled access of doors, closets and cabinets.

Features:

• Conventional direct throw design
• Stainless steel bolt
• Field selectable dual voltage
• Voltage and current spike protection
• Power regulator included
• For 180A and 280A models only

Models:

• 110I: Direct throw mortise bolt lock, failsafe
• 160I: Direct throw mortise bolt lock, auto-relock, failsafe
• 180AI: Direct throw surface mount bolt lock, failsafe
• 210H: Direct throw mortise bolt lock, failsecure
• 260H: Direct throw mortise bolt lock, auto-relock, failsecure
• 280AH: Direct throw surface mount bolt lock, failsecure

110I Specifications:

• Mount: Mortise
• Operation: Failsafe
• Bolt: 1/2" Diameter stainless steel
• Bolt Throw: 1/2", Adjustable
• Faceplate: 2-3/4" x 1-1/4" x 1/4"
• Strike: 2-3/4" x 1-1/4" x 1/8"
• Backset: 5-1/4"
• ID Requirements: 2-3/4" x 1/4" x 4-5/8"
• Weight: 2 lbs
• Input: 12/24 VDC ± 10%
• Current Draw: 900 mA @ 12 VDC, 450 mA @ 24 VDC
• Finish: V/628 - Dull aluminum
