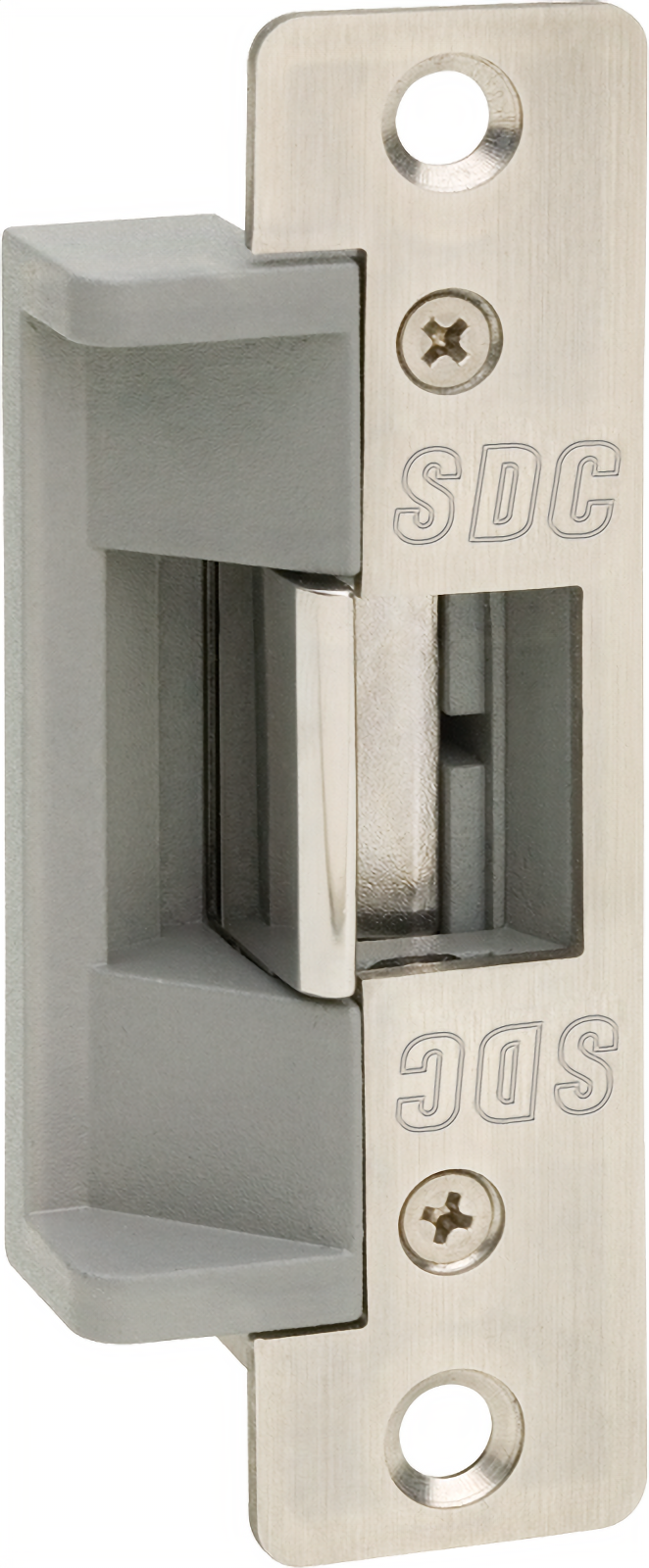

Security Door Controls 15-4F-12-U Value Electric Strike, 12VDC, Fail Safe, 1-1/4"W x 4-7/8"H x 1-1/2"D, SS

Security Door Controls 15-4F-12-U Value Electric Strike is expertly designed for use with 5/8-inch latchbolt cylindrical locksets, ensuring robust security for your premises. This electric strike operates at 12VDC and features a fail-safe mechanism, making it ideal for environments where safety is paramount. With dimensions of 1-1/4 inches wide, 4-7/8 inches high, and 1-1/2 inches deep, its compact profile allows for easy installation even in tight jamb spaces. Constructed from durable stainless steel, the 15-4F-12-U boasts a corrosion-resistant finish and a solid die-cast body, ensuring longevity and reliability. It accepts both 5/8-inch throw latchbolts and up to 3/4-inch throw latchbolts with a 1/8-inch door gap, making it versatile for various applications. The internally mounted solenoid and deadlocking mechanism enhance security, while the non-handed design simplifies installation across different door orientations. Ideal for aluminum and hollow metal frames, this electric strike is not recommended for wooden applications. Whether you're upgrading existing systems or installing new access control solutions, the Security Door Controls 15-4F-12-U Value Electric Strike provides a dependable choice for enhancing your security measures.

Value Electric Strike for 5/8in Latchbolt Cylindrical, 12VDC, Fail Safe, 1-1/4in W x 4-7/8in H x 1-1/2in D, 630/US32D Stainless Steel

15 series value 5/8" latchbolt electric strikes are centerline latch entry strikes designed for use with cylindrical locksets and metal frames. 15 series strikes accept 5/8" throw latchbolts or up to 3/4" throw latchbolts with 1/8" door gap. The 15 series electric strikes incorporates all stainless steel deadlocking mechanism and an internally mounted solenoid. The compact low profile design enables quick and easy installation where jamb space is limited. Centerline latch entry strikes require the latch to enter at the strike "centerline" located exactly between the top and bottom of the strike faceplate.

Features:

• For use with 5/8" latchbolt, or up to 3/4" latchbolt with 1/8" door gap
• Specify of failsafe or fail secure
• Non-handed
• All stainless steel parts with durable die case body for corrosion resistance
• 630 Satin stainless steel face plate. Specify 12VDC or 24VDC
• Not recommended for wood applications

Specifications:

• Voltage: 150 mA @ 24VDC / 200 mA @ 12VDC
• Dimensions: 1-1/4" W x 4-7/8" H x 1-1/2" D (31.8W x 124H x 38.1D mm)

Models:

Resources

• Cut Sheet
• Installation Sheet
