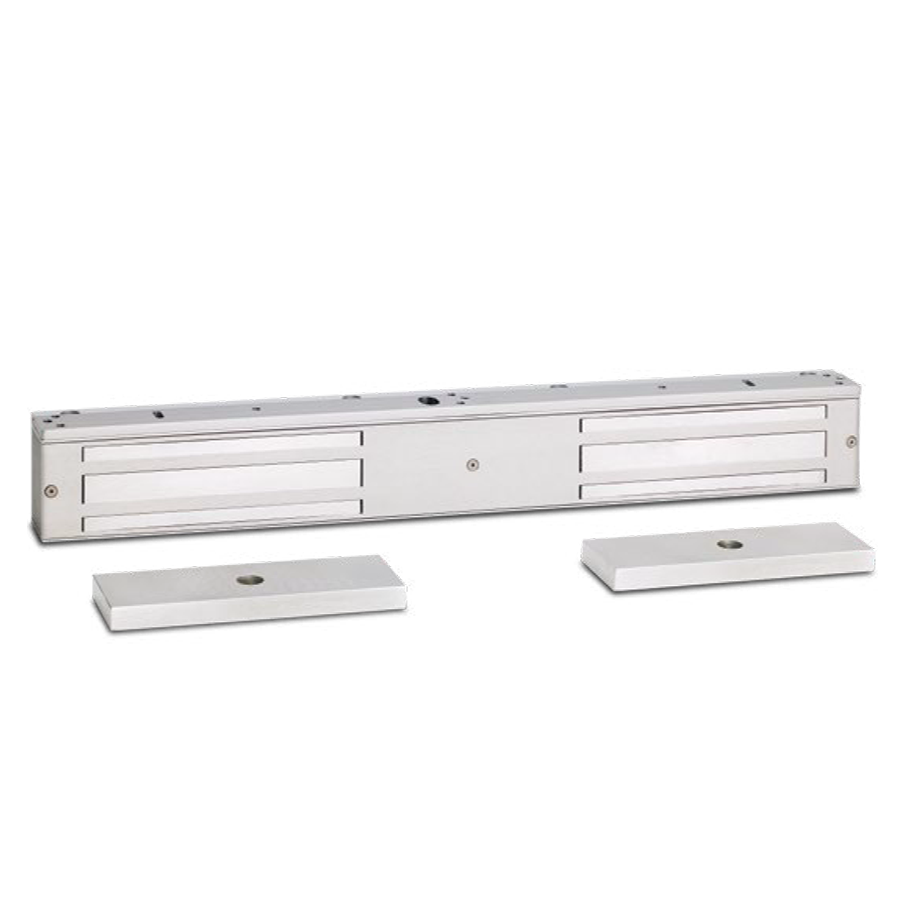

Security Door Controls 1512-V 1650lbs EMLock Double Door Electromagnetic Lock, 12/24VDC, UL Listed, Grade 1

Security Door Controls 1512-V 1650lbs EMLock Double Door Electromagnetic Lock offers unparalleled security for both interior and perimeter exit doors. With a robust holding force of 1,650 lbs, this Grade 1 UL Listed lock is engineered for reliability and ease of use. Its innovative EMLock design features a modular assembly, simplifying installation and maintenance while ensuring a sleek, polished look with its satin aluminum finish. The 1512-V operates on auto-sensing dual voltage (12/24VDC), making it versatile for various applications. Its interlocking quick mount assembly allows for hands-free wiring and secure mounting, enhancing installation efficiency. With added features like voltage and current spike protection, instant release anti-residual magnetism circuitry, and adjustable relock time delay (1-30 seconds), this lock is designed to meet the demands of modern security systems. This electromagnetic lock is compatible with any access control system and comes with a lifetime limited warranty, ensuring peace of mind for users. Optional features, such as door position status and visual status indicators, provide additional monitoring capabilities. Whether for aluminum frame doors or hollow metal constructions, the 1512-V is adaptable and reliable, making it a top choice for security professionals and discerning homeowners alike.

1650lbs EMLock Double Door Electromagnetic Lock, 12/24VDC, UL Listed, Grade 1, 628/US28 Satin Aluminum

SDC’s electromagnetic locks are suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability. The patented EMLock design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade and maintain. The housing design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks are UL listed and ANSI grade 1 compliant. EMLocks are compatible with any access control system and covered by a lifetime limited warranty. SDC’s 1510 series locks provide 1,650 lbs of holding force for increased security and are adaptable to virtually any application when used in conjunction with SDC’s vast offering of mounting brackets, kits and hardware.

Features:

• Uniform design and installation
• Wire access chamber with terminal block
• Interlocking quick mount assembly
• Auto-sensing dual voltage
• Voltage and current spike protection
• Instant release anti-residual magnetism circuitry
• Captive lock mounting screws
• Self-drilling and tapping sheet metal screws
• 10/32" machine screws included
• Field upgradeable without removing from the frame

Optional Features:

• Door position status (DPS)
• Bond alert status (BAS)
• Anti-tamper status (ATS)
• Relock time delay (RTD)
• Visual status indicator (LED) - requires field installation and additional wiring.

Models:

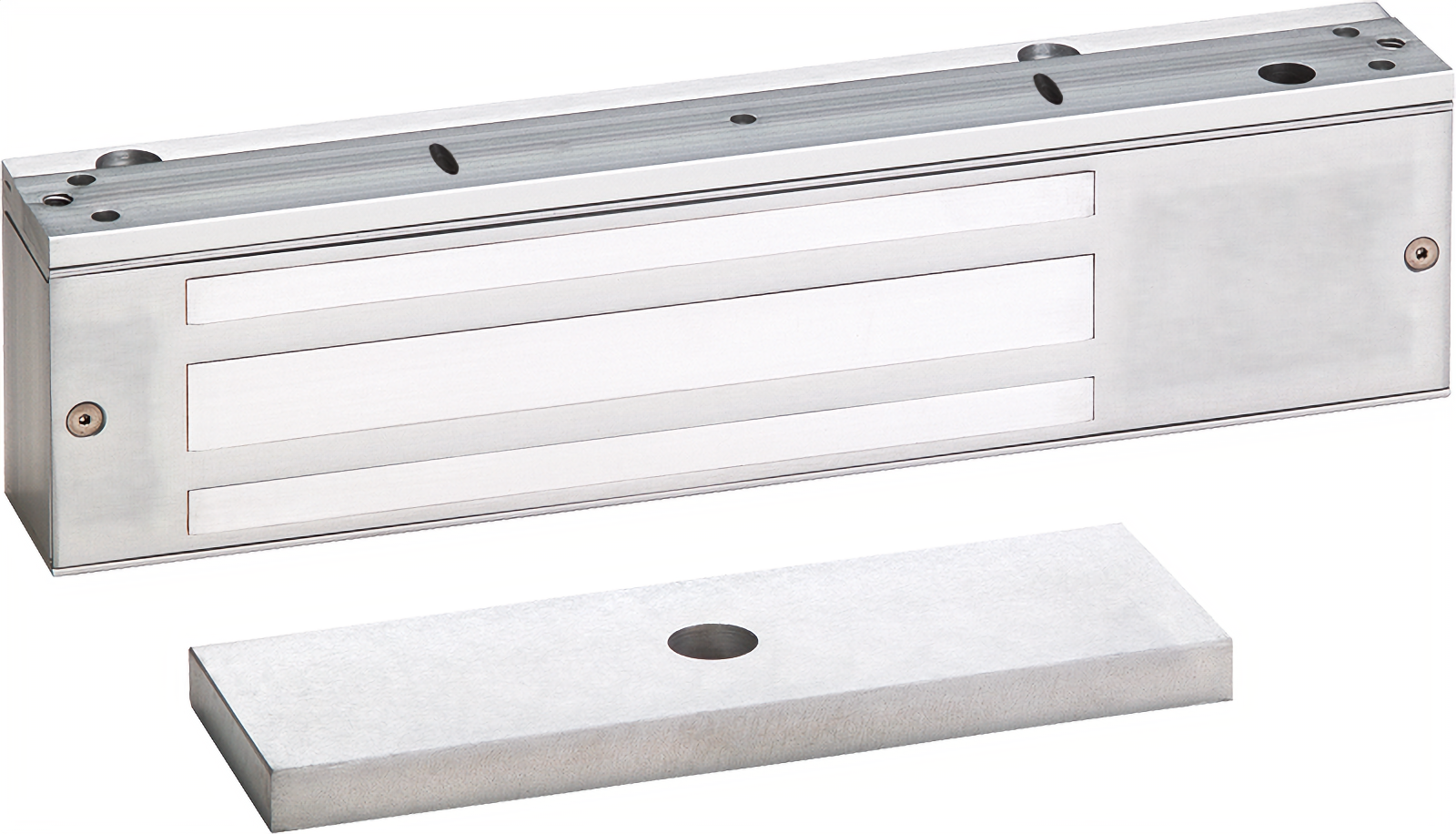

• 1511: Single EMLock, 1650lbs
• 1512: Double EMLock, 1650lbs

Applications:

• Aluminum Frame/Aluminum Glass Door:
• Utilize angle brackets for push-side mounting. See related products to order AB angle brackets, HDB glass door mounting kits, TJ top jamb mounting kits and more optional mounting hardware.
• Single swing door push-side mounting
• Double swing doors push-side mounting
• Hollow Metal or Aluminum Frame/Glass Door Without Top Rail:
• Utilize glass door mounting kits and angle brackets for push side mounting. See related products to order AB angle brackets, HDB glass door mounting kits, TJ top jamb mounting kits and more optional mounting hardware.
• Single swing door push-side mounting
• Double swing doors push-side mounting
• Hollow Metal Frame/Wood or Hollow Metal Door:
• No additional hardware required for push-side mounting. Utilize filler plate for smaller soffits. Utilize top jamb mounting kits for pull-side mounting. See related products to order AB angle brackets, HDB glass door mounting kits, TJ top jamb mounting kits and more optional mounting hardware.
• Single swing door push-side mounting
• Double swing doors push-side mounting
• Single swing door pull-side mounting

1511 Specifications:

• Housing: Aluminum
• Door Type: Swing, single
• Holding Force: 1,650lbs
• Dimensions: 11" x 2-7/8" x 1-5/8" Housing, 7-3/8" x 2-3/8" x 5/8" armature
• Weight: 11lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 350 mA @ 24 VDC, 670 mA @ 12 VDC
• Monitoring Contacts: SPDT, dry 250 mA @ 30 VDC resistive
• Relock Time Delay (RTD): Electronic timer, adjustable (1-30 seconds)

1512 Specifications:

• Housing: Aluminum
• Door Type: Swing, double
• Holding Force: 1,650lbs
• Dimensions: 22" x 2-3/4" x 1-9/16" Housing, 7-3/8" x 2-3/8" x 5/8" armature
• Weight: 27lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 700 mA @ 24 VDC, 1.34 Amps @ 12 VDC
• Monitoring Contacts: SPDT, dry 250 mA @ 30 VDC resistive
• Relock Time Delay (RTD): Electronic timer, adjustable (1-30 seconds)

Finishes:

• V/628 - Dull aluminum
• Y/335 - Dull black
• C/605 - Bright brass
• X/710 - Dark bronze
• Q/626 - Dull chrome
• P/625 - Bright chrome
