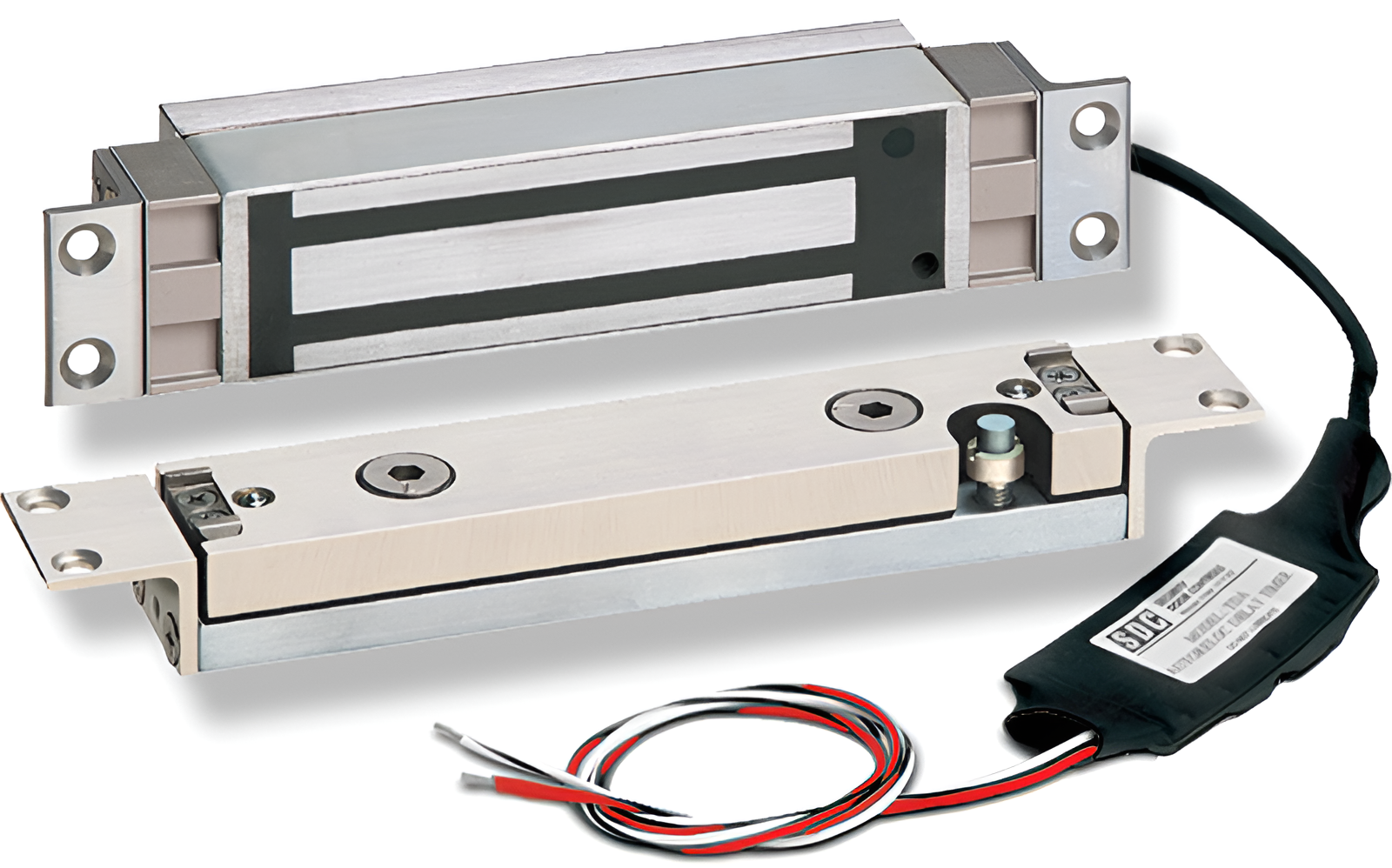

Security Door Controls 1562-ITC 2000lbs Hi/Shear Concealed Electromagnetic Lock, UL Listed, Satin Aluminum

Security Door Controls 1562-ITC 2000lbs Hi/Shear Concealed Electromagnetic Lock combines robust security with an architecturally refined design. This lock features a holding force of 2000lbs, making it suitable for a variety of applications, including commercial grade hollow metal and wood doors. Designed for mortise mounting, the 1562-ITC fits seamlessly into 7/8in to 1-1/8in deep inverted top channels, ensuring a sleek appearance. Engineered for reliability, the lock incorporates advanced electronic circuitry, which includes an auto-sensing dual voltage input (12/24 VDC) and a door alignment relock sensor. The floating armature assembly and special alloy steel shear tabs allow for adjustable lateral and vertical alignment, accommodating doors that may be warped or misaligned. Noise dampeners further enhance the user experience by minimizing the sound associated with locking and unlocking. Constructed from durable aluminum, the 1562-ITC is UL Listed and classified as Grade 1, ensuring it meets high standards of safety and durability. Optional features such as door position status (DPS) and visual status indicators add versatility for monitoring applications. With a weight of just 5 lbs, it offers a perfect balance of strength and ease of installation, making it an ideal choice for professionals and discerning homeowners alike.

2000lbs Hi/Shear Concealed Electromagnetic Lock, External Electronics, 650/350mA 12/24VDC, Fits in 7/8in to 1-1/8in Deep Inverted Top Channel, UL Listed, Grade 1, 628/US28 Satin Aluminum

HiShear electromagnetic shear locks are designed, engineered and built in America for openings that require an architecturally superior appearance. Recognized as a cut above alternatives on the market, SDC shear locks provide high security with a failsafe locking mechanism to meet a variety of door opening applications. The patented HiShear design incorporates a floating armature assembly and special alloy steel locking tabs on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors. Advanced electronic circuitry incorporates a door alignment relock sensor as well as an automatic sensing dual voltage input. Noise dampeners greatly reduce the noise associated with locking and unlocking when compared to other shear locks on the market. HiShear magnetic shear locks are ideal for use on commercial grade hollow metal and wood doors with metal frames and Herculite doors with top rails. The innovative 1560 series concealed electromagnetic shear locks are available with 2000lbs and 2700lbs holding force for standard 13/4" to 2" frames with internal electronics, as well as narrow 11/4" to 11/2" frames with external electronics.

Features:

• Fully concealed mortise design
• Floating armature assembly
• Special alloy steel shear tabs
• Auto-sensing dual voltage
• Door alignment relock sensor
• Adjustable lateral and vertical alignment
• Noise dampeners
• Optional: Door position status (DPS)
• Optional: Bond alert status (BAS)
• Optional: Visual status indicator (LED). Mounts separately through the frame and may be used to indicate lock is energized or wired to monitoring contacts.

Models:

• 1561: Concealed shear lock, integrated electronics, 2000lbs
• 1562: Concealed shear lock, external electronics, 2000lbs
• 1565: Concealed shear lock, integrated electronics, 2700lbs
• 1566: Concealed shear lock, external electronics, 2700lbs

1561 Specifications:

• Housing: Aluminum
• Mount: Mortise
• Holding Force: 2,000lbs
• Dimensions: 8" x 1-1/2" x 1-5/8" Lock, 8-7/16" x 1-3/8" x 7/8" armature
• Weight: 5 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 350 mA @ 24 VDC, 650 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC Resistive

1562 Specifications:

• Housing: Aluminum
• Mount: Mortise
• Holding Force: 2,000lbs
• Dimensions: 8" x 1-1/2" x 1-1/4" Lock, 8-7/16" x 1-3/8" x 7/8" armature
• Weight: 5 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 350 mA @ 24 VDC, 650 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC Resistive

1565 Specifications:

• Housing: Aluminum
• Mount: Mortise
• Holding Force: 2,700lbs
• Dimensions: 10-7/16" x 1-1/2" x 1-5/8" Lock, 11" x 1-3/8" x 7/8" armature
• Weight: 7 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 400 mA @ 24 VDC, 800 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC Resistive

1566 Specifications:

• Housing: Aluminum
• Mount: Mortise
• Holding Force: 2,700lbs
• Dimensions: 10-7/16" x 1-1/2" x 1-1/16" Lock, 11" x 1-3/8" x 7/8" Armature
• Weight: 7 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 400 mA @ 24 VDC, 800 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC Resistive
