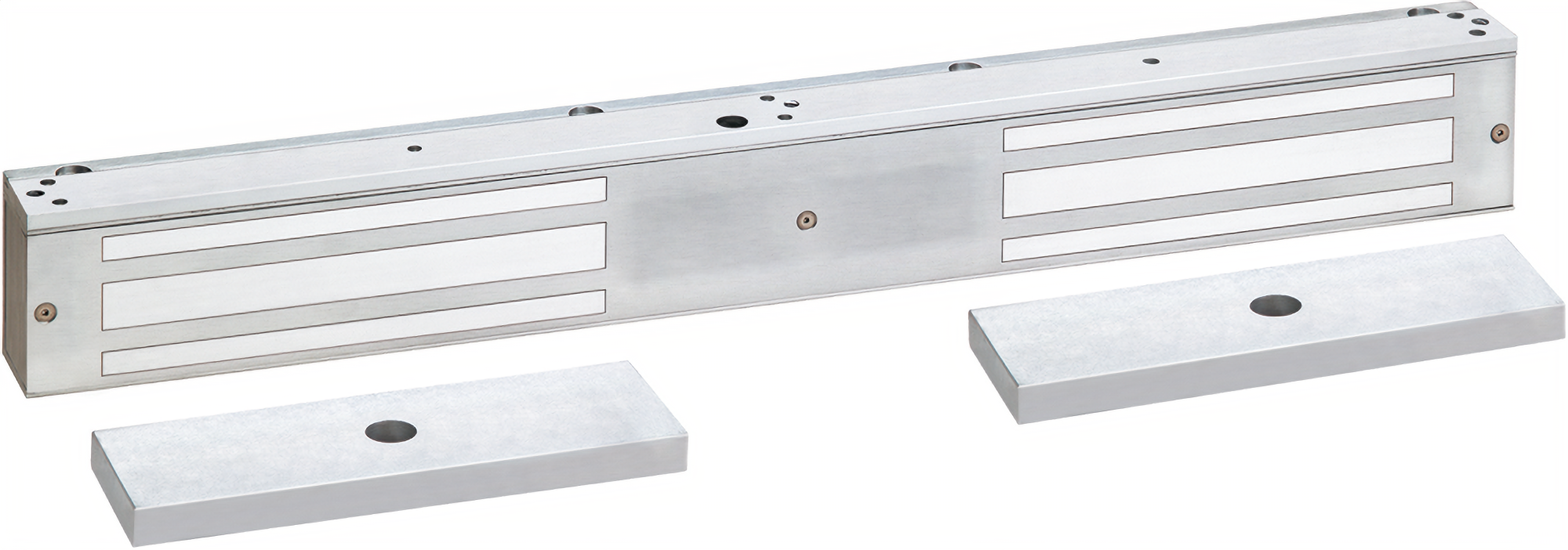

Security Door Controls 1572-V 1200lbs EMLock Double Door Electromagnetic Lock, 12/24VDC, UL Listed, Satin Aluminum

Security Door Controls 1572-V 1200lbs EMLock Double Door Electromagnetic Lock offers unparalleled security and reliability for your access control needs. With a robust 1,200 lbs of holding force, this Grade 1 UL Listed lock is designed for both durability and performance, making it suitable for various applications including interior doors and perimeter exits. This double door electromagnetic lock operates on an auto-sensing dual voltage system (12/24 VDC) and features a wire access chamber with a terminal block for easy installation. Its innovative interlocking EZ mount assembly allows for hands-free wiring, simplifying installation and maintenance. The lock is built with voltage and current spike protection, ensuring long-term reliability. Additional features include captive mounting screws, self-drilling sheet metal screws, and an adjustable relock time delay of 1-30 seconds. Optional enhancements such as door position status, bond alert status, and visual status indicators can be integrated to further elevate security management. The sleek satin aluminum finish enhances the lock’s aesthetic appeal without compromising on strength. With compatibility for various access control systems and a lifetime limited warranty, the Security Door Controls 1572-V provides a comprehensive, dependable solution for modern security requirements.

1200lbs EMLock Double Door Electromagnetic Lock, 12/24VDC, UL Listed, Grade 1, 628/US28 Satin Aluminum

SDC’s electromagnetic locks are suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability. The patented EMLock design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade and maintain. The housing design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks are UL listed and ANSI grade 1 compliant. EMLocks are compatible with any access control system and covered by a lifetime limited warranty. SDC’s 1570 series locks provide 1,200 lbs of holding force and are adaptable to virtually any application when used in conjunction with SDC’s vast offering of mounting brackets, kits and hardware.

Features:

• Uniform design and installation
• Wire access chamber with terminal block
• Interlocking quick mount assembly
• Auto-sensing dual voltage
• Voltage and current spike protection
• Instant release anti-residual magnetism circuitry
• Captive lock mounting screws
• Self-drilling and tapping sheet metal screws
• 10/32" machine screws included
• Field upgradeable without removing from the frame

Optional Features:

• Door position status (DPS)
• Bond alert status (BAS)
• Anti-tamper status (ATS)
• Relock time delay (RTD)
• Visual status indicator (LED). Requires field installation and additional wiring.

Models:

• 1571: Single EMLock, 1200lbs
• 1572: Double EMLock, 1200lbs

Applications:

• Aluminum Frame/Aluminum Glass Door:
• Utilize angle brackets for push-side mounting. See related products to order AB angle brackets, HDB glass door mounting kits, TJ top jamb mounting kits and more optional mounting hardware.
• Single swing door push-side mounting
• Double swing doors push-side mounting
• Hollow Metal or Aluminum Frame/Glass Door Without Top Rail:
• Utilize glass door mounting kits and angle brackets for push side mounting. See related products to order AB angle brackets, HDB glass door mounting kits, TJ top jamb mounting kits and more optional mounting hardware.
• Single swing door push-side mounting
• Double swing doors push-side mounting
• Hollow Metal Frame/Wood or Hollow Metal Door:
• No additional hardware required for push-side mounting. Utilize filler plate for smaller soffits. Utilize top jamb mounting kits for pull-side mounting. See related products to order AB angle brackets, HDB glass door mounting kits, TJ top jamb mounting kits and more optional mounting hardware.
• Single swing door push-side mounting
• Double swing doors push-side mounting
• Single swing door pull-side mounting

1571 Specifications:

• Housing: Aluminum
• Door Type: Swing, single
• Holding Force: 1,200lbs
• Dimensions: 11" x 2-7/8" x 1-5/8" Housing, 7-3/8" x 2-3/8" x 5/8" armature
• Weight: 11 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 125 mA @ 24 VDC, 250 mA @ 12 VDC
• Door Position Status (DPS), Bond alert status (BAS): SPDT 250 mA @ 30 VDC resistive
• Anti-Tamper Status (ATS): SPDT 5 Amp @ 125 VAC resistive
• Relock Time Delay(RTD): Electronic timer, adjustable (1-30 seconds)

1572 Specifications:

• Housing: Aluminum
• Door Type: Swing, double
• Holding Force: 1,200lbs
• Dimensions: 22" x 2-7/8" x 1-5/8" Housing, 7-3/8" x 2-3/8" x 5/8" armature
• Weight: 27 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 250 mA @ 24 VDC, 500 mA @ 12 VDC
• Door Position Status (DPS), Bond alert status (BAS): SPDT 250 mA @ 30 VDC resistive
• Anti-Tamper Status (ATS): SPDT 5 Amp @ 125 VAC resistive
• Relock Time Delay (RTD): Electronic timer, adjustable (1-30 seconds)

Finishes:

• V/628 - Dull aluminum
• Y/335 - Dull black
• C/605 - Bright brass
• X/710 - Dark bronze
• Q/626 - Dull chrome
• P/625 - Bright chrome
