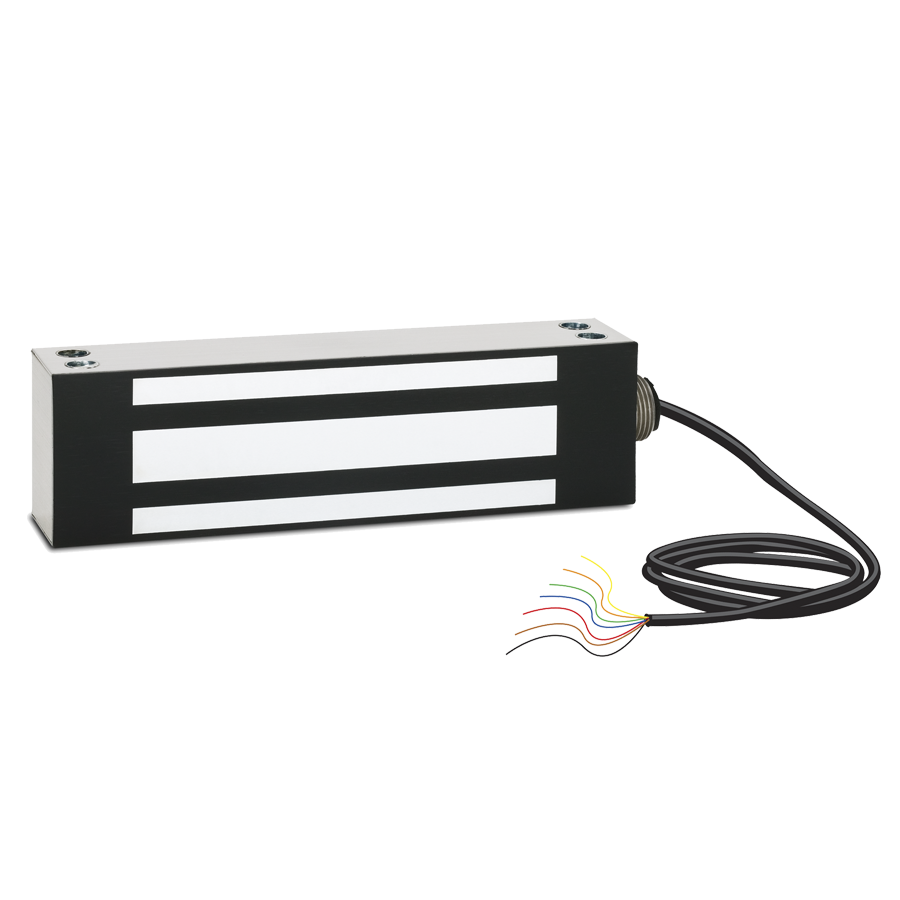

Security Door Controls 1575-U 1200lbs EMLock Standard Mount with Bond Sensor Door Position Switch, UL Listed

Security Door Controls 1575-U 1200lbs Electromagnetic Gate Lock (EMLock) offers robust security for both pedestrian and vehicle gates, delivering an impressive 1200lbs of holding force. This standard mount lock is designed with versatility in mind, making it compatible with various gate types, including manual and automatic, swinging and sliding, tubular and iron gates. Constructed from durable stainless steel with a weather-resistant epoxy-sealed design, the 1575-U ensures reliable performance in diverse environments. Its innovative floating armature compensates for misalignment, enhancing the lock's effectiveness. The lock also features a threaded conduit fitting for secure wiring protection against the elements. Equipped with advanced monitoring features, including a Door Position Switch (DPS) and Bond Alert Status (BAS), this electromagnet provides real-time status updates for improved security management. The field-selectable dual voltage capability (12/24 VDC) allows for easy integration into existing systems, while its low power consumption makes it an efficient choice for any security setup. With certifications including ANSI and UL listings, the Security Door Controls 1575-U is a Grade 1 lock, ensuring top-tier security for your gates. Ideal for a range of applications, this electromagnetic gate lock is the reliable choice for building professionals and discerning homeowners alike.

1200lbs Electromagnetic Gate Lock (EMLock) Standard Mount with Bond Sensor and Door Position Switch, Weather Resistant, 12/24VDC, UL Listed, Grade 1 630/US32D Stainless Steel

SDC’s magnetic gate locks provide 1200lbs of holding force and enable the access and egress control of pedestrian and vehicle gates. Access controls such as card readers, digital keypads and remote control stations provide gate and lock control. Compatible with manual and automatic, swinging and sliding, tubular and iron gates. The floating armature design compensates for gate misalignment with the electromagnet. SDC magnetic gate locks are totally sealed in an epoxy filled stainless steel case. A threaded conduit fitting ensures weather resistant protection of the wiring.

Features:

• Epoxy sealed electronics
• Threaded conduit fitting
• Stainless steel housing
• Wire leads, 3 feet
• Field selectable dual voltage
• Voltage and current spike protection
• Low power consumption
• Door position status (DPS)
• Bond alert status (BAS)
• Finish: U/630 - Dull stainless

Models:

• 1575: Single magnetic gate lock, 1200lbs, weatherized
• 1576: Single magnetic gate lock, face-drilled, 1200lbs, weatherized

Applications:

• With no moving parts to bind or wear, SDC’s magnetic gate locks are inherently failsafe and will unlock automatically during a power outage. For security applications, SDC power supplies with backup batteries, can provide continuous operation during a power outage.
• Door Applications: 1575U for Outswing Doors
• Door Applications: 1576U for Inswing Doors
• Gate Applications: 1575U for Swinging Gates
• Gate Applications: 1576U for Swinging Gates
• Gate Applications: 1576U for Sliding Gates

1575 Specifications:

• Housing: Stainless steel
• Holding Force: 1,200lbs
• Dimensions: 8-11/16" x 2-1/2" x 1-5/8" housing, 7-3/4" x 2-13/32" x 5/8" armature
• Weight: 11 lbs
• Input: 12/24 VDC ± 10% Field selectable
• Current Draw: 225 mA @ 24 VDC 450 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC resistive

1576 Specifications:

• Housing: Stainless steel face-drilled
• Holding Force: 1,200lbs
• Dimensions: 8-11/16" x 2-1/2" x 1-5/8" housing, 7-3/4" x 2-13/32" x 5/8" armature
• Weight: 10lbs
• Input: 12/24 VDC ± 10% Field selectable
• Current Draw: 225 mA @ 24 VDC 450 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC resistive
