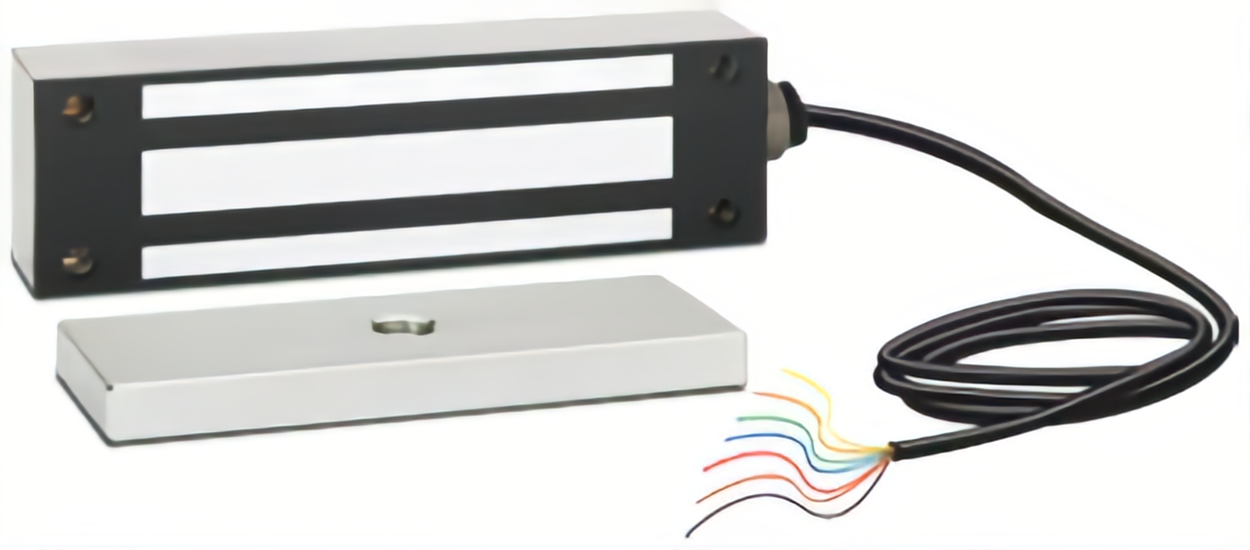

Security Door Controls 1576-U 1200lbs EMLock Gate Electromagnetic Lock, Weather Resistant, UL Listed, Grade 1

Security Door Controls 1576-U 1200lbs EMLock Gate Electromagnetic Lock offers robust security solutions for both pedestrian and vehicle gates. With a remarkable holding force of 1200lbs, this face-drilled mount lock is engineered for reliability and ease of use. Its weather-resistant design, featuring epoxy-sealed electronics and stainless steel housing, ensures durability in various environmental conditions. This electromagnetic lock is compatible with manual and automatic gates, including swinging and sliding models of tubular and iron types. The floating armature design allows for compensation in gate misalignment, ensuring a secure fit. The product also includes essential monitoring features such as a door position switch and bond alert status, enhancing security awareness. Field-selectable dual voltage options (12/24 VDC) provide flexibility for various installations, while the low power consumption and voltage spike protection ensure energy efficiency. Weighing in at just 10lbs, the 1576-U is easy to install without compromising on strength or security. With its UL listing and Grade 1 certification, this electromagnetic lock meets high industry standards, making it a reliable choice for access control systems. Elevate your security measures with the Security Door Controls 1576-U, designed for peace of mind and dependable performance.

1200lbs EMLock Gate Electromagnetic Lock, Face Drilled Mount with Bond Sensor and Door Position Switch, Weather Resistant,12/24VDC, UL Listed, Grade 1, 630/US32D Stainless Steel

SDC’s magnetic gate locks provide 1200lbs of holding force and enable the access and egress control of pedestrian and vehicle gates. Access controls such as card readers, digital keypads and remote control stations provide gate and lock control. Compatible with manual and automatic, swinging and sliding, tubular and iron gates. The floating armature design compensates for gate misalignment with the electromagnet. SDC magnetic gate locks are totally sealed in an epoxy filled stainless steel case. A threaded conduit fitting ensures weather resistant protection of the wiring.

Features:

• Epoxy sealed electronics
• Threaded conduit fitting
• Stainless steel housing
• Wire leads, 3 feet
• Field selectable dual voltage
• Voltage and current spike protection
• Low power consumption
• Door position status (DPS)
• Bond alert status (BAS)
• Finish: U/630 - Dull stainless

Models:

• 1575: Single magnetic gate lock, 1200lbs, weatherized
• 1576: Single magnetic gate lock, face-drilled, 1200lbs, weatherized

Applications:

• With no moving parts to bind or wear, SDC’s magnetic gate locks are inherently failsafe and will unlock automatically during a power outage. For security applications, SDC power supplies with backup batteries, can provide continuous operation during a power outage.
• Door Applications: 1575U for Outswing Doors
• Door Applications: 1576U for Inswing Doors
• Gate Applications: 1575U for Swinging Gates
• Gate Applications: 1576U for Swinging Gates
• Gate Applications: 1576U for Sliding Gates

1575 Specifications:

• Housing: Stainless steel
• Holding Force: 1,200lbs
• Dimensions: 8-11/16" x 2-1/2" x 1-5/8" housing, 7-3/4" x 2-13/32" x 5/8" armature
• Weight: 11 lbs
• Input: 12/24 VDC ± 10% Field selectable
• Current Draw: 225 mA @ 24 VDC 450 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC resistive

1576 Specifications:

• Housing: Stainless steel face-drilled
• Holding Force: 1,200lbs
• Dimensions: 8-11/16" x 2-1/2" x 1-5/8" housing, 7-3/4" x 2-13/32" x 5/8" armature
• Weight: 10lbs
• Input: 12/24 VDC ± 10% Field selectable
• Current Draw: 225 mA @ 24 VDC 450 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC resistive
