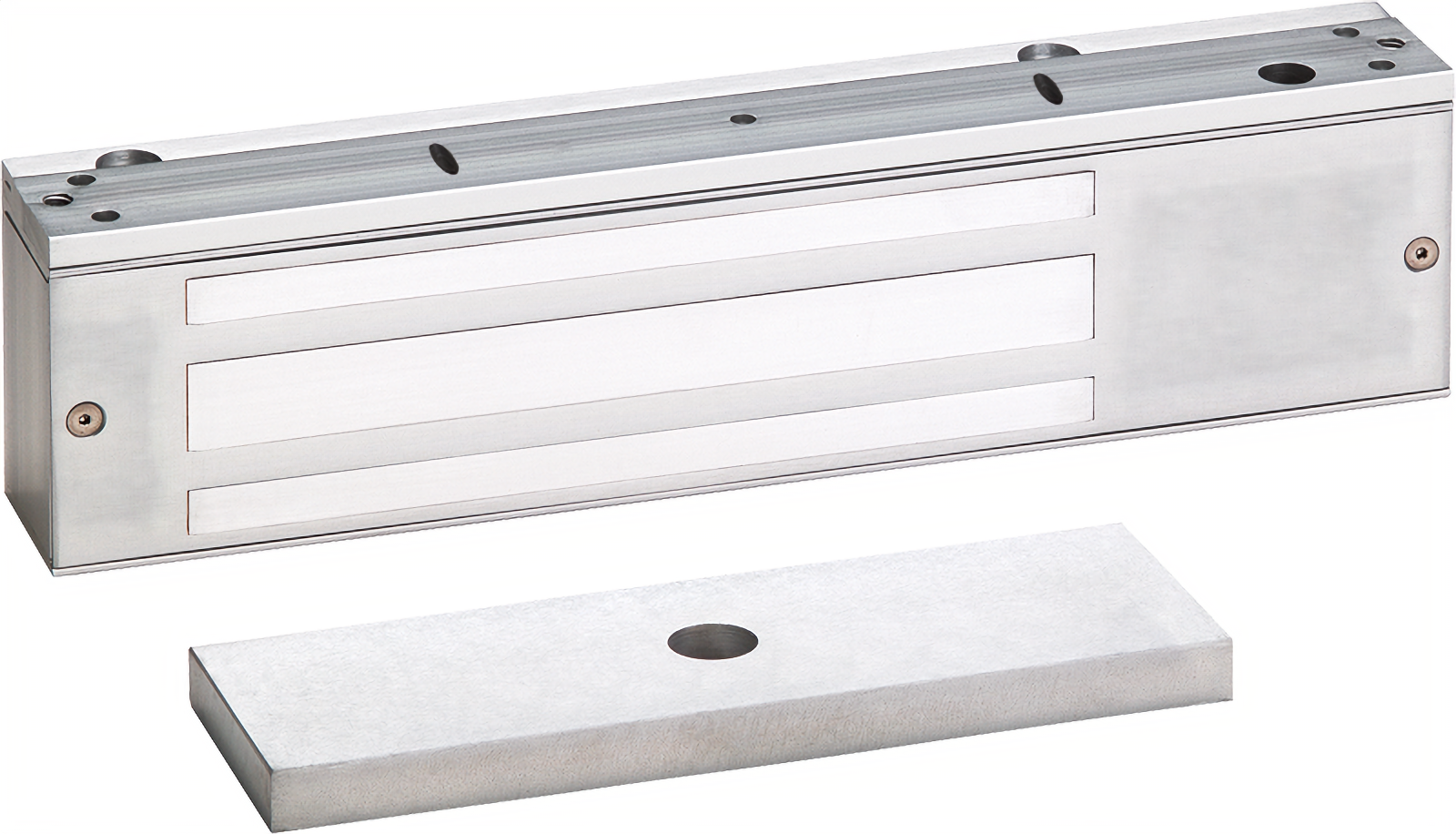

Security Door Controls 1581-V 650lbs EM Lock, Single Door, 12/24VDC, UL Listed, Grade 1, Satin Aluminum

Security Door Controls 1581-V 650lbs EM Lock is a cutting-edge solution for anyone looking to enhance the security of their single swing doors. This impressive electromagnetic lock delivers a robust 650lbs of holding force, making it ideal for high-traffic areas requiring reliable access control. Designed for both 12V and 24VDC systems, the auto-sensing feature ensures seamless integration into various applications. Constructed from durable aluminum and finished in a sleek satin aluminum (628/US28), the 1581-V not only provides strength but also offers a professional aesthetic. Its innovative interlocking EZ mount assembly simplifies installation, allowing for efficient wiring and secure mounting. This lock is UL listed and ANSI grade 1 compliant, ensuring high safety standards are met. Additional features include voltage and current spike protection, instant release anti-residual magnetism circuitry, and captive mounting screws, which enhance the overall reliability and ease of maintenance. Optional features like Door Position Status (DPS) and a Visual Status Indicator (LED) can be added for enhanced monitoring capabilities. Whether for aluminum frame doors, hollow metal doors, or double swing configurations, the Security Door Controls 1581-V EM Lock is adaptable to meet a variety of security needs, making it a top choice among building professionals and knowledgeable homeowners alike.

650lbs EM Lock, Single Door Electromagnetic Lock, 12/24VDC, UL Listed, Grade 1, 628/US28 Satin Aluminum

SDC’s electromagnetic locks are suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability. The patented EMLock design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade and maintain. The housing design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks are UL listed and ANSI grade 1 compliant. EMLocks are compatible with any access control system and covered by a lifetime limited warranty. SDC’s 1580 series locks provide 650lbs of holding force for traffic control and are adaptable to virtually any application when used in conjunction with SDC’s vast offering of mounting brackets, kits and hardware.

Features:

• Uniform design and installation
• Wire access chamber with terminal block
• Interlocking quick mount assembly
• Auto-sensing dual voltage
• Voltage and current spike protection
• Instant release anti-residual magnetism circuitry
• Captive lock mounting screws
• Self-drilling and tapping sheet metal screws
• 10/32" machine screws included

Optional Features:

• Door position status (DPS)
• Bond alert status (BAS)
• Anti-tamper status (ATS)
• Visual status indicator (LED). Requires field installation and additional wiring.

Models:

• 1581: Single EMLock, 650lbs
• 1582: Double EMLock, 650lbs

Applications:

• Aluminum Frame/Aluminum Glass Door:
• Utilize angle brackets for push-side mounting. See related products to order AB angle brackets, HDB glass door mounting kits, TJ top jamb mounting kits and more optional mounting hardware.
• Single swing door push-side mounting
• Double swing doors push-side mounting
• Hollow Metal or Aluminum Frame/Glass Door Without Top Rail:
• Utilize glass door mounting kits and angle brackets for push side mounting. See related products to order AB angle brackets, HDB glass door mounting kits, TJ top jamb mounting kits and more optional mounting hardware.
• Single swing door push-side mounting
• Double swing doors push-side mounting
• Hollow Metal Frame/Wood or Hollow Metal Door:
• No additional hardware required for push-side mounting. Utilize filler plate for smaller soffits. Utilize top jamb mounting kits for pull-side mounting. See related products to order AB angle brackets, HDB glass door mounting kits, TJ top jamb mounting kits and more optional mounting hardware.
• Single swing door push-side mounting
• Double swing doors push-side mounting
• Single swing door pull-side mounting

1581 Specifications:

• Housing: Aluminum
• Door Type: Swing, single
• Holding Force: 650lbs
• Dimensions: 8-3/4" x 2-1/8" x 1-1/4" housing, 6-3/8" x 1-1/2" x 1/2" armature
• Weight: 5 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 220 mA @ 24 VDC, 440 mA @ 12 VDC
• Door Position Status (DPS): SPDT 250 mA @ 30 VDC Resistive
• Bond Alert Status (BAS): SPST 250 mA @ 30 VDC Resistive
• Anti-Tamper Status (ATS): SPDT 5 Amp @ 125 VAC Resistive

1582 Specifications:

• Housing: Aluminum
• Door Type: Swing, double
• Holding Force: 650lbs
• Dimensions: 17-1/2" x 2-1/8" x 1-1/4" housing, 6-3/8" x 1-1/2" x 1/2" armature
• Weight: 8 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 440 mA @ 24 VDC, 880 mA @ 12 VDC
• Door Position Status (DPS): SPDT 250 mA @ 30 VDC Resistive
• Bond Alert Status (BAS): SPST 250 mA @ 30 VDC Resistive
• Anti-Tamper Status (ATS): SPDT 5 Amp @ 125 VAC Resistive

Finishes:

• V/628 - Dull aluminum
• Y/335 - Dull black
• C/605 - Bright brass
• X/710 - Dark bronze
• Q/626 - Dull chrome
• P/625 - Bright chrome

Resources

• Cut Sheet
