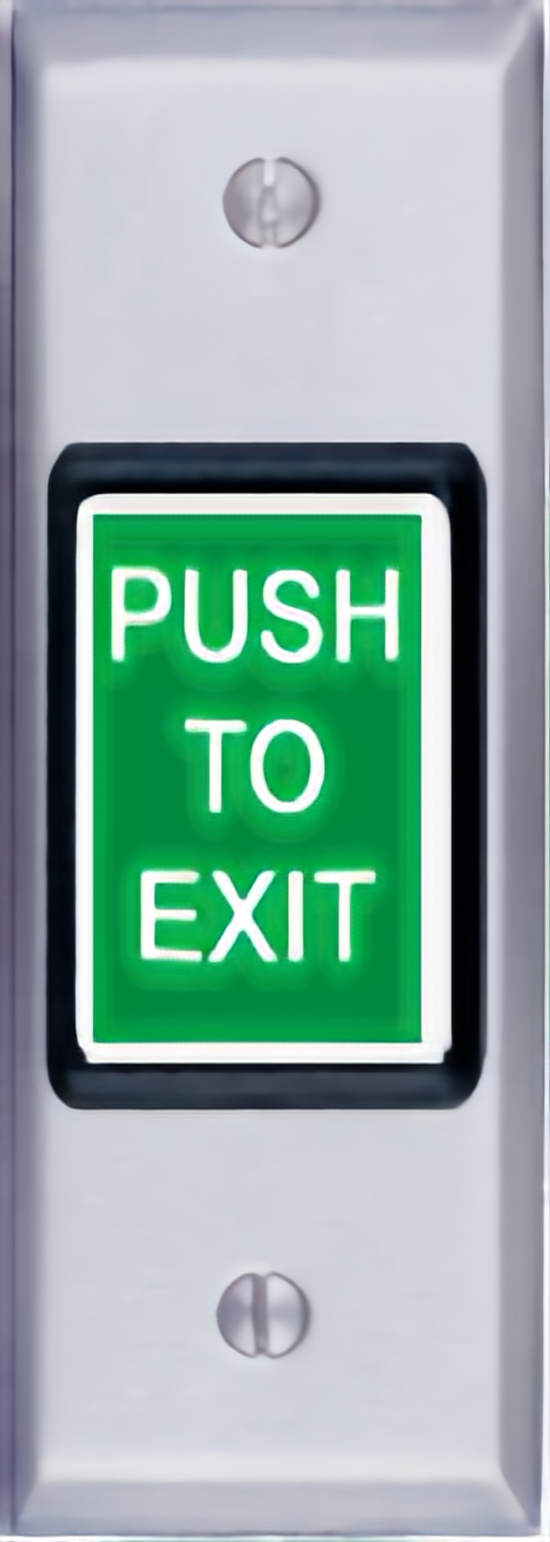

Security Door Controls 412N-U Momentary Narrow Push Button Switch is designed for seamless access control in both commercial and residential applications. This illuminated push-to-exit sign features a green and red lens, ensuring visibility and compliance with NFPA requirements. Crafted from durable 630/US32D stainless steel, the 1-3/4in x 4-1/2in switch is robust enough to withstand high traffic areas while maintaining a sleek appearance. This momentary switch is equipped with auto-sensing dual voltage capabilities, operating efficiently at 12/24 VDC ± 10%. The SPDT contact rating of 5 Amps at 30 VDC resistive guarantees reliable performance. With a surface mount design, installation is straightforward and adaptable to numerous environments. The 412N-U model is complemented by a large, conspicuous push button for easy activation, meeting various building codes including IBC and NFPA standards. Ideal for egress doors, this switch can be utilized alongside motion sensors to enhance security and accessibility. Whether integrating into a new construction project or upgrading an existing access control system, the Security Door Controls 412N-U provides a dependable and compliant solution for effective egress management.
Momentary Narrow Push Button Switch, Illuminated Push-to-Exit Sign, Green and Red Lens Included, Auto-Sensing Dual Voltage, 1-3/4in x 4-1/2in, 630/US32D Stainless Steel
The illuminated switch button is two inches square for easy activation and is visually conspicuous. The high impact resistant material stands up to abuse. The "push to exit" sign complies with NFPA requirements. The 410 series narrow frame mount exit switch assemblies include a large push button on a narrow frame mount plate with push switch signage "push to exit". Code compliant manual releasing devices and sensors 413MN exit switches used together with MD-31D motion sensors comply with manual releasing device and sensor device requirements for access-controlled egress doors per the following codes:
Features:
Models:
412N Specifications:
413N Specifications:
Specifications 413MN:
413PN Specifications:
414N Specifications:
415N Specifications:
Finishes:
Alternate Codes: 141931, 412N-U, 412NU, SDC412NU
Button Type: Green/Red Lens, Illuminated, Narrow, Square
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
Certifications: BOCA National Building Code 1017.4.5, IBC International Code 1008.1.3.4, IFC International Fire Code 1008.1.3.4, NFPA 101 Life Safety Code 7.2.1.6.2, NFPA 1.15.5.3.2, SBCCI Standard Building Code 1012.7
Door Application: Pushplates/Buttons & Switches
Faceplate Size: 1.75" x 4.5"
Finish Code: 630
Finish Color: Satin Stainless Steel
Lead Length: 6"
Manufacturer: Security Door Controls
Material: Stainless Steel
Mounting: Surface
Relay Type: SPDT
Series: 410
Signage: "PUSH TO EXIT"
Switch Type: Momentary (MO)
Voltage: 12, 24
Voltage Type: VDC - Direct
Weight: 0.5lbs
Wire Gauge: 20
