Security Door Controls 55-ABC-U Universal Electric Strike for Cylindrical/Mortise Locks, 12/24 AC/DC, Fail Safe/SecureSecurity Door Controls 55-ABC-U Universal Electric Strike provides versatile access control solutions for both cylindrical and mortise locks, excluding deadbolts. Designed for easy integration, this electric strike operates on 12/24 AC/DC voltage and offers field-selectable fail-safe or fail-secure options, making it suitable for diverse security needs. This multi-application kit includes one electric strike and three interchangeable faceplates, accommodating a variety of installations: a cylindrical faceplate, and two mortise faceplates-one for deadlatch below and another for deadlatch above. With a 3/4" latchbolt and a keeper depth of 1-3/8", the 55-ABC-U ensures reliable performance and easy compatibility with hollow metal frames. Constructed from satin stainless steel with a durable finish, this grade 1 electric strike has a dynamic strength rating of 70 lbs and a holding force of up to 2500 lbs, ensuring robust security. The latch bolt throw measures 3/4", and the product weighs 3 lbs, making it both lightweight and strong. Certifications include A156.31, ANSI, BHMA, UL 1034, and UL 10C, affirming its safety and reliability. Whether you are a building professional or a knowledgeable homeowner, the Security Door Controls 55-ABC-U Electric Strike is an excellent choice for enhancing your security system.
Universal Electric Strike for Cylindrical and Mortise Locks (No Deadbolt), 12/24 AC/DC, FS Fail Safe/FSE Fail Secure, Latchbolt Position Monitor, Includes 3 Faceplates 4-7/8in x 1-1/4in, 630/US32D Stainless Steel
Notice: The info below is not item specific.

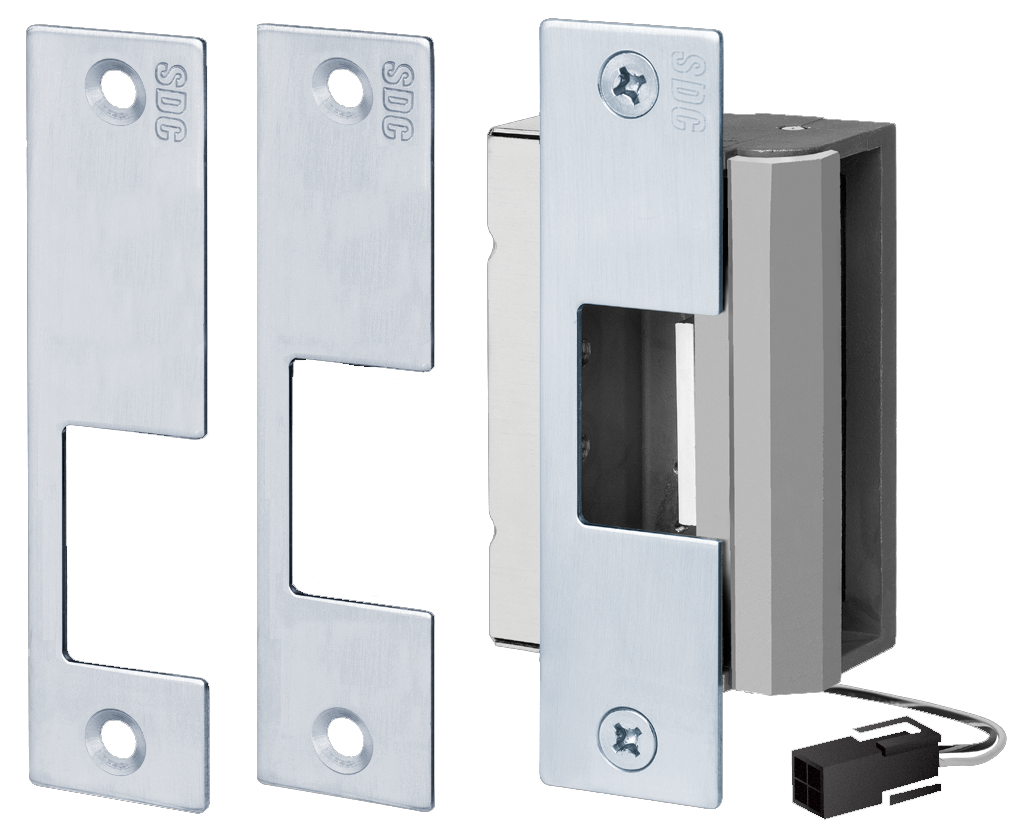

Multi-application kits include one electric strike and three faceplates. Faceplates are interchangeable for cylindrical lockset, mortise lockset without deadbolt and mortise exit device applications.
Kit Components:
- (1) 3/4" Latchbolt electric strike
- (1) Cylindrical faceplate
- (1) Mortise faceplate - deadlatch below
- (1) Mortise faceplate - deadlatch above
Features
- (1) 3/4" Latchbolt electric strike
- (1) Mortise faceplate - deadlatch above
- (1) Mortise faceplate - deadlatch below
- (1) Cylindrical faceplate
Attributes
Alternate Codes: 55-ABC-U, 55-ABCU, 55ABCU, SDC55-ABCU
Bolt Throw: 1"
Category: Access Control, Electric Strikes
Certifications: A156.31, ANSI, BHMA, UL 1034, UL 10C
Current Draw: 300 mA @ 24 VDC, 600 mA @ 12VDC
Door Application: Electric Strikes
Door Frame Type: Hollow Metal Frame
Dynamic Strength: 70lbs
Faceplate Style: Multi-Application Kit
Fail Safe/ Fail Secure: Field Selectable
Finish Code: 630
Finish Color: Satin Stainless Steel
Grade: Grade 1
Handing: Non-Handed
Holding Force: 2500lbs
Keeper Depth: 1-3/8"
Latch Throw: 3/4"
Manufacturer: Security Door Controls
Material: Stainless Steel
Series: 55
Voltage: 12, 24
Voltage Type: Field Selectable, VDC - Direct
Weight: 3lbs
