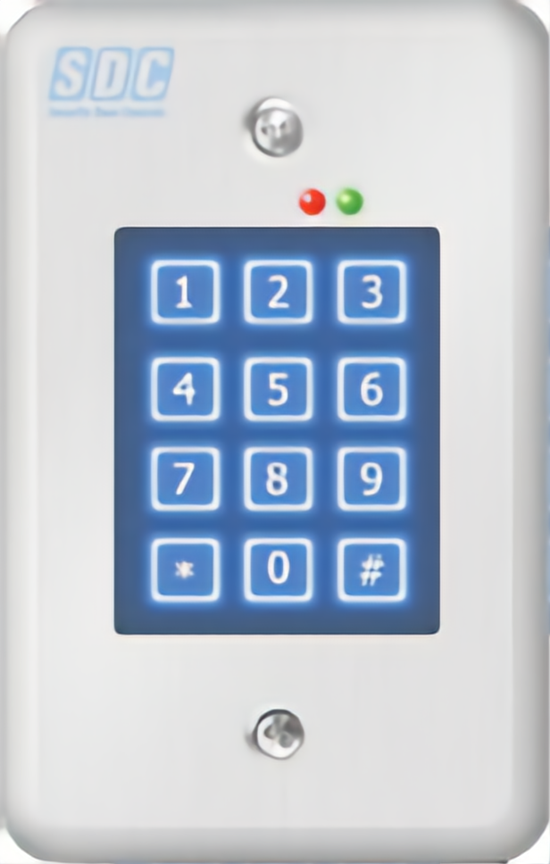

Security Door Controls 918-U Indoor Digital Keypad, 500 Users, 1-6 Digit Pin, Stainless Steel, LED Status

Security Door Controls 918-U Stand Alone Indoor Digital Keypad offers a robust access control solution tailored for facilities requiring secure entry for up to 500 users. This sleek, surface-mounted keypad features a durable brushed stainless steel faceplate, ensuring both resilience and style. Users can easily enter a personal identification number (PIN) consisting of 1 to 6 digits to activate the outputs, which can be configured as timed or latching relay activations. The 12-key illuminated and moisture-resistant design enhances usability in various indoor environments, while the tamper-resistant screws provide added security. With tactile keys that allow for adjustable audible feedback and visual status indicators, the 918-U ensures a user-friendly experience. This keypad is equipped with four outputs-two relays and two solid-state outputs-making it versatile for various applications. Designed for seamless integration, the 918-U operates in a wide temperature range of -4ºF to +140ºF and humidity levels of 5% to 95% non-condensing. Its compact dimensions of 3" W x 4-3/4" H x 1-1/2" D make it suitable for single gang wall mounting, while the keypad programming options, including anti-passback and request-to-exit features, further enhance its functionality. For reliable and secure access control, the Security Door Controls 918-U is an outstanding choice.

Stand Alone Indoor Digital Keypad, 500 User, 1-6 Digit Pin, Surface Mount, 3in x 5-3/4 x 1in, Keypad Programming, 4 Outputs, 2 Relays and 2 Solid State Outputs Timed or Latching, LED Status, 630/US32D Stainless Steel

SDC’s 918 series of indoor standalone digital keypads are designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (pin). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. 918W models are designed to interface with SDC’s IPPro or most access control systems, providing a standard 26-bit Wiegand output.

Features:

• 12-key illuminated, moisture-resistant keypad
• Thick stainless steel faceplate
• Tamper-resistant screws
• Keypad programmable
• Tactile keys with selectable audible levels or key depression or output activation
• Adjustable audible annunciation
• Visual status indicators (LED)

Self-Contained Keypads Only Features:

• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry pin’s to relays 1 and/or 2
• Choice of door sense or relay inhibit input
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)

Models:

• 918: Indoor self-contained keypad
• 918W: Indoor Weigand output keypad

Applications:

• Single gang wall mount
• Dual LED Status Indicators:
• Configurable illumination: on, off, timed
• LED status: access, lockout
• Self-Contained Keypad Programming Options: SDC’s EntryCheck keypads includes a door sense/inhibit input feature. When programmed for "door sense", a door position status (DPS) switch wired into the input and detects a "forced entry" or "door ajar" condition. When programmed for "inhibit Input", a maintained switch or automatic timer wired into a the input will disable the activation of the main relay. EntryCheck keypads also have a request-to-exit (REX) input for connection to an exit switch and/or fire access key switch for fire/emergency access. When access is granted, the shunt option is activated shunting alarm contacts on the door or gate. This prevents triggering of an alarm during authorized access.

918 Specifications:

• Keypad: Brushed stainless steel 3/32" thick
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
• Wiring: Screw terminals
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 3"W x 43/4"H x 11/2"D (1/4" wall projection)
• Weight: 0.5lbs

918W Specifications:

• Keypad: Brushed stainless steel 3/32" thick
• Input: 5-16 VDC
• Current: 30mA Typical, 150mA maximum
• Output: 26-bit Wiegand only
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 3"W x 43/4"H x 11/2"D (1/4" wall projection)
• Weight: 0.5lbs

Finishes:

• U/630 - Dull stainless
• S/629 - Bright stainless
• D/606 - Dull brass
• C/605 - Bright brass
• G/612 - Dull bronze
• F/611 - Bright bronze
• H/613 - Dark oil rubbed bronze
• Q/626 - Dull chrome
• P/625 - Bright chrome

Resources

• Cut Sheet
