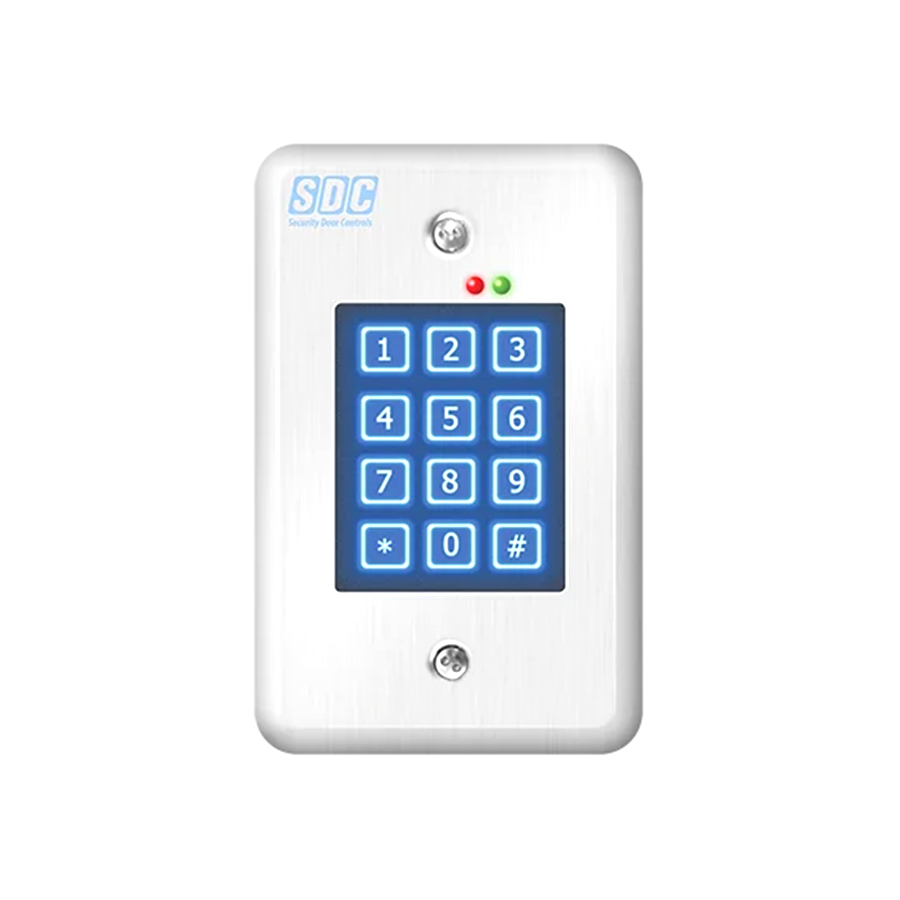

Security Door Controls 918W-U Indoor Keypad w/ Weigand Output, LED Status, Adjustable Annunciation, Stainless Steel

Security Door Controls 918W-U Indoor Keypad w/ Weigand Output offers a robust solution for managing access at a single entry point, accommodating up to 500 unique user codes. Designed for indoor use, this keypad is crafted with a 3/32" thick brushed stainless steel faceplate, ensuring both durability and aesthetic appeal. The 12-key illuminated, moisture-resistant keypad allows for easy operation even in low-light conditions, while tamper-resistant screws enhance security. Equipped with adjustable audible annunciation and visual status indicators, the 918W-U provides clear feedback during operation, helping users to confirm access. The keypad interfaces seamlessly with SDC’s IPPro and most access control systems through its standard 26-bit Wiegand output. Key features include two SPDT relays, which can be configured for timed or latching outputs, and a request-to-exit (REX) input for enhanced functionality. With an operating temperature range of -4ºF to +140ºF and humidity tolerance of 5% to 95% non-condensing, the 918W-U is built to perform in a variety of environments. Whether for commercial or residential applications, this reliable keypad is an excellent choice for those seeking a user-friendly, secure access control solution.

Indoor Keypad w/ Weigand Output, Visual Status Indicators (LED), Adjustable Audible Annunciation, 630/US32D Stainless Steel Faceplate

SDC’s 918 series of indoor standalone digital keypads are designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (pin). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. 918W models are designed to interface with SDC’s IPPro or most access control systems, providing a standard 26-bit Wiegand output.

Features:

• 12-key illuminated, moisture-resistant keypad
• Thick stainless steel faceplate
• Tamper-resistant screws
• Keypad programmable
• Tactile keys with selectable audible levels or key depression or output activation
• Adjustable audible annunciation
• Visual status indicators (LED)

Self-Contained Keypads Only Features:

• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry pin’s to relays 1 and/or 2
• Choice of door sense or relay inhibit input
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)

Models:

• 918: Indoor self-contained keypad
• 918W: Indoor Weigand output keypad

Applications:

• Single gang wall mount
• Dual LED Status Indicators:
• Configurable illumination: on, off, timed
• LED status: access, lockout
• Self-Contained Keypad Programming Options: SDC’s EntryCheck keypads includes a door sense/inhibit input feature. When programmed for "door sense", a door position status (DPS) switch wired into the input and detects a "forced entry" or "door ajar" condition. When programmed for "inhibit Input", a maintained switch or automatic timer wired into a the input will disable the activation of the main relay. EntryCheck keypads also have a request-to-exit (REX) input for connection to an exit switch and/or fire access key switch for fire/emergency access. When access is granted, the shunt option is activated shunting alarm contacts on the door or gate. This prevents triggering of an alarm during authorized access.

918 Specifications:

• Keypad: Brushed stainless steel 3/32" thick
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Switch to Common Outputs 3 & 4 – 100mA @ 30VDC
• Wiring: Screw terminals
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 3"W x 43/4"H x 11/2"D (1/4" wall projection)
• Weight: 0.5lbs

918W Specifications:

• Keypad: Brushed stainless steel 3/32" thick
• Input: 5-16 VDC
• Current: 30mA Typical, 150mA maximum
• Output: 26-bit Wiegand only
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 3"W x 43/4"H x 11/2"D (1/4" wall projection)
• Weight: 0.5lbs

Finishes:

• U/630 - Dull stainless
• S/629 - Bright stainless
• D/606 - Dull brass
• C/605 - Bright brass
• G/612 - Dull bronze
• F/611 - Bright bronze
• H/613 - Dark oil rubbed bronze
• Q/626 - Dull chrome
• P/625 - Bright chrome
