Security Door Controls 920PW Weigand Output Keypad w/ Prox. Reader, 125kHz, 5-16VDC, LED Indicators

Security Door Controls 920PW Indoor/Outdoor Wiegand Output Keypad w/ Integrated Prox. Reader offers robust access control for both residential and commercial applications. Designed to support up to 500 users, this versatile keypad features an illuminated 12-key configuration that ensures easy use even in low-light conditions. The durable die-cast metal housing is not only weatherproof but also vandal-resistant, making it ideal for outdoor settings. With a wide input voltage range of 5-16 VDC, the keypad operates efficiently while drawing a typical current of only 30mA. Visual status indicators, including dual LED lights, provide immediate feedback on access status, enhancing user experience. The integrated proximity reader adds an extra layer of convenience, allowing entry via either a personal identification number (PIN) or a proximity card. The 920PW is compatible with SDC’s IPPro and most standard access control systems, utilizing a 26-bit Wiegand output for seamless integration. Additional features include a built-in tamper switch, weather resistance, and a compact design (3" W x 5-3/4" H x 1-7/16" D), making it a practical solution for modern security needs. Enhance your access control system with the reliability and functionality of the Security Door Controls 920PW keypad.

Indoor/Outdoor Weigand Output Keypad w/ Integrated Prox. Reader, 125kHz Reader, 5-16VDC Input, Visual Status Indicators (LED), 689 Aluminum Powder Coat Finish

SDC’s EntryCheck 920 series indoor/outdoor digital keypads are designed to control access of a single entry point with up to 500 users. Each user is assigned a personal identification number (pin). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Featuring heavy cast vandal resistant housing and cast metal blue backlit keys. 920P models add HID proximity reader capability to the keypad. 920PW models are designed to interface with SDC’s IPPro or most access control systems providing a standard 26-bit Wiegand output. SDC’s 921P models are indoor/outdoor standalone digital keypads with proximity reader and controller (two-piece configuration), designed to control access of a single entry point with up to 500 users. Each user is assigned a proximity card and/or a personal identification number (pin). Presentation of a proximity card or keypad entry of a code activates one or both of the output relays which releases an electric door lock.

Features:

• Digital keypad with backlit keys
• 12-key illuminated, moisture-resistant keypad
• Weather and vandal resistant housing with tactile keys
• Built-in tamper switch
• Keypad programmable
• Visual status indicators (LED)

Self-Contained Keypads Only Features:

• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry PIN’s to relays 1 and/or 2
• Choice of door sense or relay inhibit input
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)

Integrated Proximity Readers Only Features:

• 3 user modes - Pin or card, card only, card and Pin

Models:

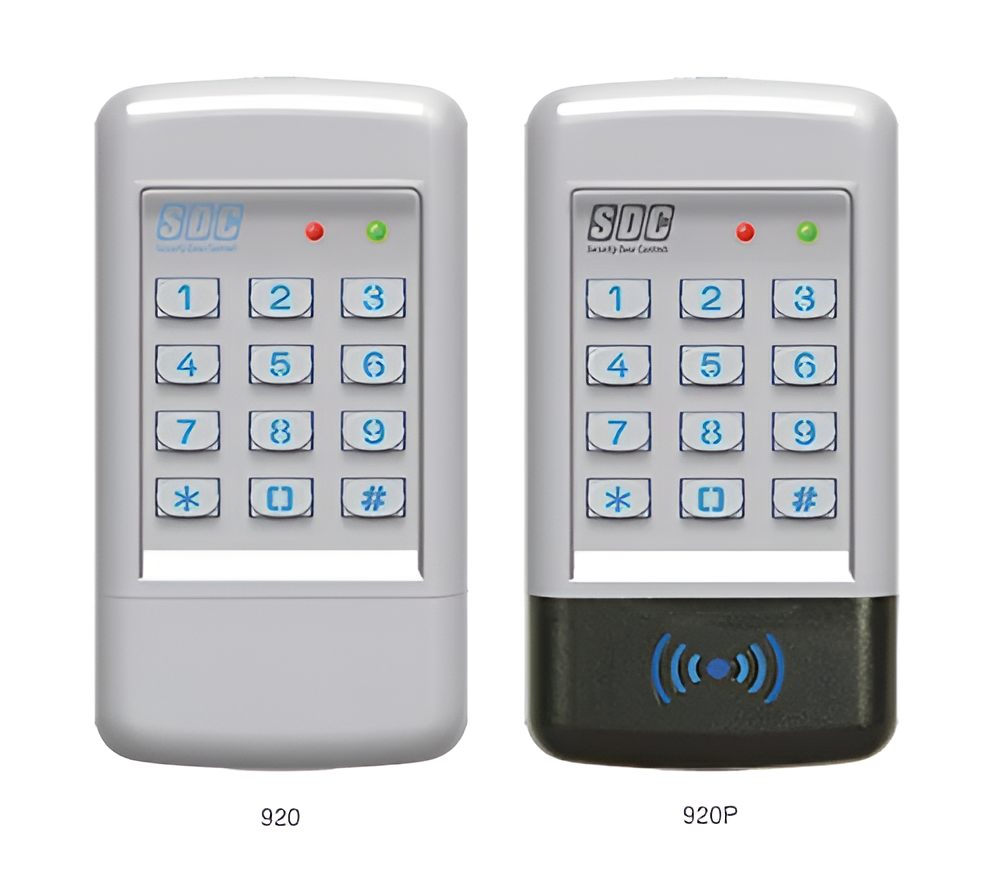

• 920: Indoor/outdoor self-contained keypad
• 920P: Indoor/outdoor self-contained keypad with integrated proximity reader
• 920PW: Indoor/outdoor Weigand output keypad with integrated proximity reader
• 921P: Indoor/outdoor self-contained keypad with integrated proximity reader, external electronics

Applications:

• Single gang wall or surface mount
• Dual LED Status Indicators:
• Configurable illumination: on, off, timed
• LED status: access, lockout
• Self-Contained Keypad Programming Options: SDC’s EntryCheck keypads includes a door sense/inhibit input feature. When programmed for "door sense", a door position status (DPS) switch wired into the input and detects a "forced entry" or "door ajar" condition. When programmed for "inhibit input", a maintained switch or automatic timer wired into a the input will disable the activation of the main relay. EntryCheck keypads also have a request-to-exit (REX) input for connection to an exit switch and/or fire access key switch for fire/emergency access. When access is granted, the shunt option is activated shunting alarm contacts on the door or gate. This prevents triggering of an alarm during authorized access.

920 Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Aluminum powder coat
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Outputs 3 & 4, 100mA @ 30VDC
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 3" W x 5-3/4" H x 1-7/16" D (11/2" wall projection)
• Weight: 2 lbs

920P Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Aluminum powder coat
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Outputs 3 & 4, 100mA @ 30VDC
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 3" W x 5-3/4" H x 1-7/16" D (11/2" wall projection)
• Weight: 2 lbs

920PW Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Aluminum powder coat
• Input: 5-16 VDC
• Current: 30mA Typical, 150mA maximum
• Output: 26-bit Wiegand or 4-bit word (keypad) 26-bit Wiegand, 125kHz (reader)
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 3" W x 5-3/4" H x 1-7/16" D (11/2" wall projection)
• Weight: 2 lbs

921P Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Aluminum powder coat
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Outputs 3 & 4, 100mA @ 30VDC
• Wiring: Pigtail connector to user cable to control box
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions:
• Keypad - 3" W x 5-3/4" H x 1-7/16" D (1-1/2" wall projection)
• Enclosure - 7-3/4" W x 5-3/4" H x 3-1/2" D
• Weight: 3 lbs
