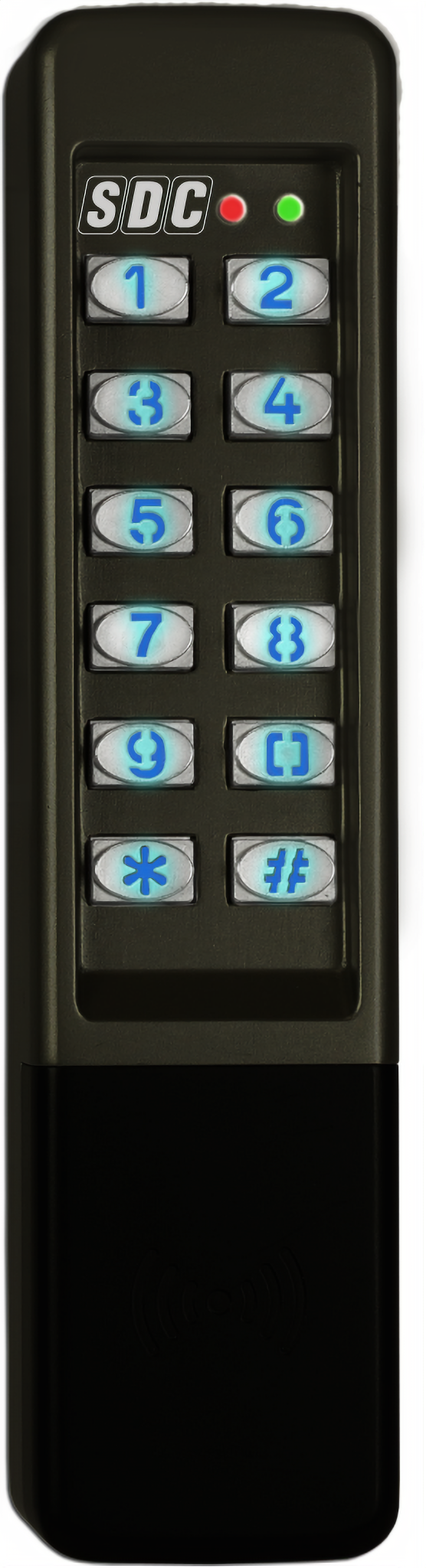

Security Door Controls 923 Narrow Weatherized Digital Keypad, 500 Users, 1-6 Digit PIN, Black Finish

Security Door Controls 923 Narrow Stand Alone Indoor/Outdoor Digital Weatherized Keypad is an advanced access control solution designed for both indoor and outdoor applications. With the capacity to manage up to 500 unique user codes, this keypad provides efficient security for any facility. Featuring a robust die-cast metal construction with a sleek black powder coat finish, it is built to withstand the elements and resist vandalism. The keypad is equipped with a 12-key illuminated, moisture-resistant interface, making it easy to use in various lighting conditions. Users can enter a personal identification number (PIN) ranging from 1 to 6 digits to activate the output relays, which can be set for timed or latching operation. The device includes dual visual status indicators for clear feedback on access status and lockout conditions. Key features also include a built-in tamper switch for added security, keypad programmability, and compatibility with both relay and solid-state outputs. Operating effectively in temperatures from -4ºF to +140ºF, the 923 keypad is ideal for tight spaces with its narrow dimensions of 1-3/4" W x 7-5/16" H x 1-3/8" D. Enhance your security strategy with the reliability and durability of the Security Door Controls 923 Keypad.

Narrow Stand Alone Indoor/Outdoor Digital Weatherized Keypad, 500 User, 1-6 Digit Pin, Surface Mount, 1-3/4in x 7-5/16in x 1-3/8in, Keypad Programming, 4 Outputs, 2 Relays and 2 Solid State Outputs Timed or Latching, LED Status, 335 Black Powder Coat Finish

SDC’s EntryCheck 923 series narrow indoor/outdoor standalone digital keypads are designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (pin). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. 923P models add HID proximity reader capability to the keypad and 923PW models are designed to interface with SDC’s IPPro and most access control systems providing a standard 26-bit Wiegand output.

Features:

• Digital keypad with backlit keys
• 12-key illuminated, moisture-resistant keypad
• Weather and vandal resistant housing with tactile keys
• Built-in tamper switch
• Keypad programmable
• Visual status indicators (LED)

Self-Contained Keypads Only Features:

• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry pin’s to relays 1 and/or 2
• Choice of door sense or relay inhibit input
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)

Integrated Proximity Readers Only Features:

• 3 user modes - Pin or card, card only, card and pin

Models:

• 923: Indoor/outdoor narrow self-contained keypad
• 923P: Indoor/outdoor narrow self-contained keypad with integrated proximity reader
• 923PW: Indoor/outdoor narrow Weigand output keypad with integrated proximity reader

Applications:

• Narrow surface, mullion or frame mount
• Dual LED Status Indicators:
• Configurable illumination: on, off, timed
• LED status: access, lockout
• Self-Contained Keypad Programming Options: SDC’s EntryCheck keypads includes a door sense/inhibit input feature. When programmed for "door sense", a door position status (DPS) switch wired into the input and detects a "forced entry" or "door ajar" condition. When programmed for "inhibit input", a maintained switch or automatic timer wired into a the input will disable the activation of the main relay. EntryCheck keypads also have a request-to-exit (REX) input for connection to an exit switch and/or fire access key switch for fire/emergency access. When access is granted, the shunt option is activated shunting alarm contacts on the door or gate. This prevents triggering of an alarm during authorized access.

923 Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Black powder coat
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Switch to common outputs 3 & 4 – 100mA @ 30VDC
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 1-3/4" W x 7-5/16" H x 1-3/8" D (1-1/2" wall projection)
• Weight: 1.65 lbs

923P Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Black powder coat
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Switch to common outputs 3 & 4 – 100mA @ 30VDC
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 1-3/4" W x 7-5/16" H x 1-3/8" D (1-1/2" wall projection)
• Weight: 1.65 lbs

923PW Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Black powder coat
• Input: 5-16 VDC
• Current: 30mA Typical, 150mA maximum
• Output:
• 26-bit Wiegand or 4-bit word (keypad)
• 26-bit Wiegand, 125kHz (reader)
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 1-3/4" W x 7-5/16" H x 1-3/8" D (1-1/2" wall projection)
• Weight: 1.65 lbs
