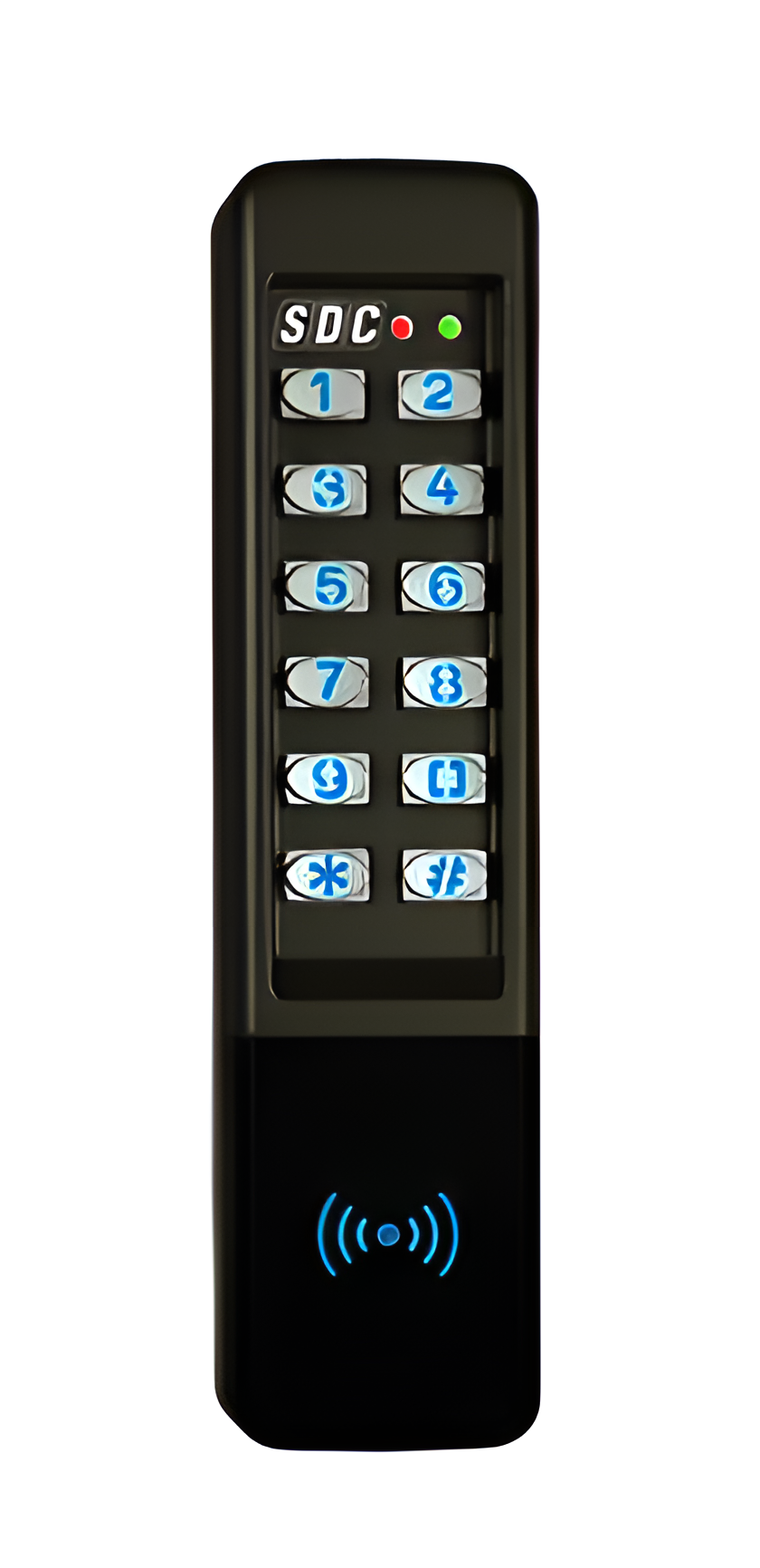

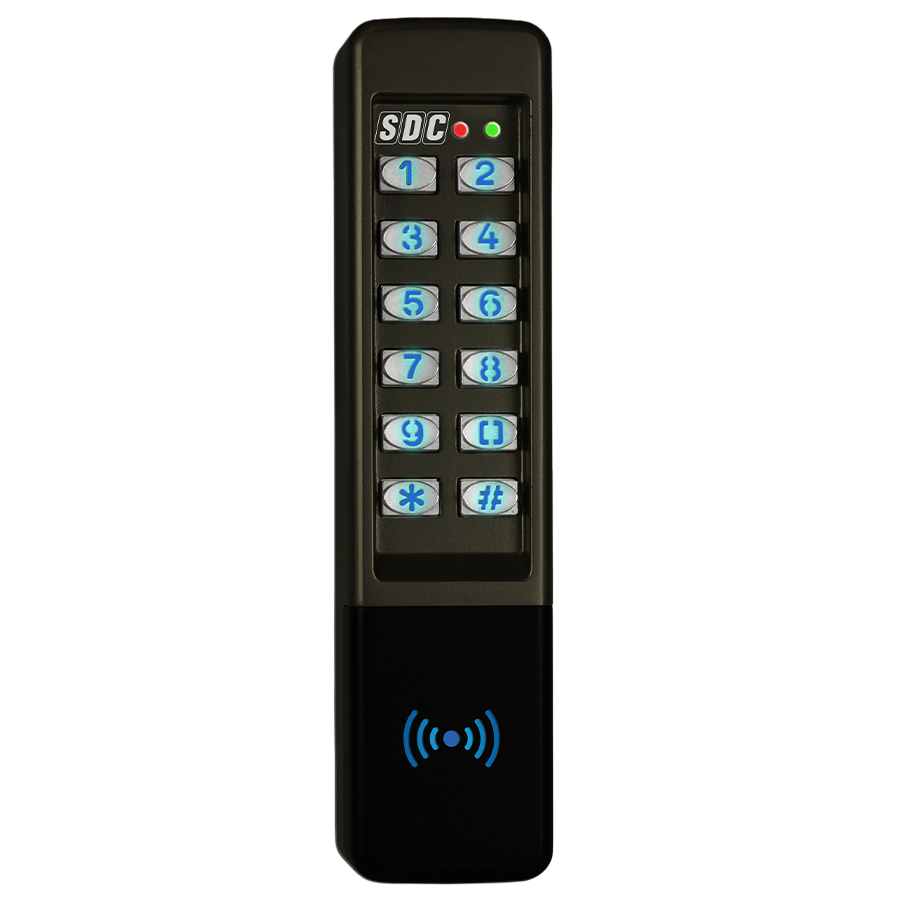

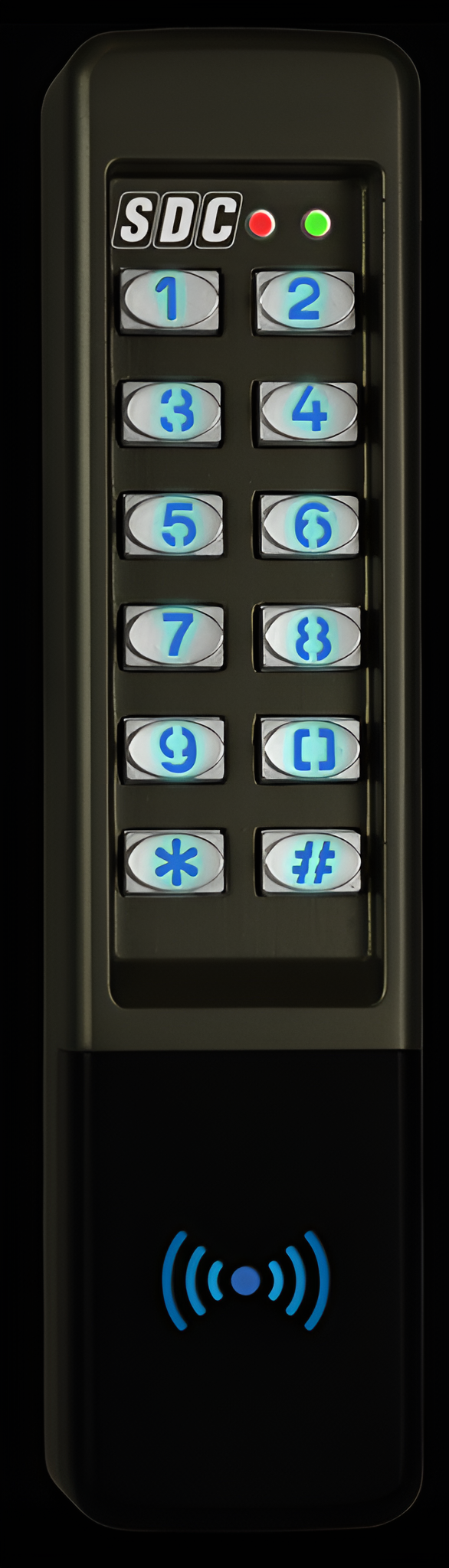

Security Door Controls 923PW Narrow Indoor/Outdoor Keypad w/ Prox Reader, 125kHz, LED Indicators, Black Finish

Security Door Controls 923PW Narrow Indoor/Outdoor Weigand Output Keypad w/ Integrated Prox. Reader offers a versatile solution for secure access control at a single entry point, accommodating up to 500 users. This robust keypad features a 125kHz proximity reader, allowing for seamless integration into SDC’s IPPro and most access control systems with its standard 26-bit Wiegand output. Designed for both indoor and outdoor use, the 923PW boasts a die-cast metal construction with a black powder coat finish, ensuring durability against weather and vandalism. The illuminated, 12-key keypad is moisture-resistant and equipped with visual status indicators (LED), providing users with clear feedback during operation. The built-in tamper switch enhances security, while the keypad's programmability allows for custom configurations. With a wide operating temperature range of -4ºF to +140ºF and humidity tolerance from 5% to 95%, the 923PW is engineered to perform in diverse environments. It supports timed or latching outputs, request-to-exit functionality, and features like anti-passback and anti-tailgate measures for added security. Overall, the Security Door Controls 923PW is an ideal choice for professionals seeking reliable access control solutions without compromising on quality or ease of use.

Narrow Indoor/Outdoor Weigand Output Keypad w/ Integrated Prox. Reader, 125kHz Reader, 5-16VDC Input, Visual Status Indicators (LED), 335 Black Powder Coat Finish

SDC’s EntryCheck 923 series narrow indoor/outdoor standalone digital keypads are designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (pin). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. 923P models add HID proximity reader capability to the keypad and 923PW models are designed to interface with SDC’s IPPro and most access control systems providing a standard 26-bit Wiegand output.

Features:

• Digital keypad with backlit keys
• 12-key illuminated, moisture-resistant keypad
• Weather and vandal resistant housing with tactile keys
• Built-in tamper switch
• Keypad programmable
• Visual status indicators (LED)

Self-Contained Keypads Only Features:

• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry pin’s to relays 1 and/or 2
• Choice of door sense or relay inhibit input
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)

Integrated Proximity Readers Only Features:

• 3 user modes - Pin or card, card only, card and pin

Models:

• 923: Indoor/outdoor narrow self-contained keypad
• 923P: Indoor/outdoor narrow self-contained keypad with integrated proximity reader
• 923PW: Indoor/outdoor narrow Weigand output keypad with integrated proximity reader

Applications:

• Narrow surface, mullion or frame mount
• Dual LED Status Indicators:
• Configurable illumination: on, off, timed
• LED status: access, lockout
• Self-Contained Keypad Programming Options: SDC’s EntryCheck keypads includes a door sense/inhibit input feature. When programmed for "door sense", a door position status (DPS) switch wired into the input and detects a "forced entry" or "door ajar" condition. When programmed for "inhibit input", a maintained switch or automatic timer wired into a the input will disable the activation of the main relay. EntryCheck keypads also have a request-to-exit (REX) input for connection to an exit switch and/or fire access key switch for fire/emergency access. When access is granted, the shunt option is activated shunting alarm contacts on the door or gate. This prevents triggering of an alarm during authorized access.

923 Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Black powder coat
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Switch to common outputs 3 & 4 – 100mA @ 30VDC
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 1-3/4" W x 7-5/16" H x 1-3/8" D (1-1/2" wall projection)
• Weight: 1.65 lbs

923P Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Black powder coat
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Switch to common outputs 3 & 4 – 100mA @ 30VDC
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 1-3/4" W x 7-5/16" H x 1-3/8" D (1-1/2" wall projection)
• Weight: 1.65 lbs

923PW Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Black powder coat
• Input: 5-16 VDC
• Current: 30mA Typical, 150mA maximum
• Output:
• 26-bit Wiegand or 4-bit word (keypad)
• 26-bit Wiegand, 125kHz (reader)
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 1-3/4" W x 7-5/16" H x 1-3/8" D (1-1/2" wall projection)
• Weight: 1.65 lbs
