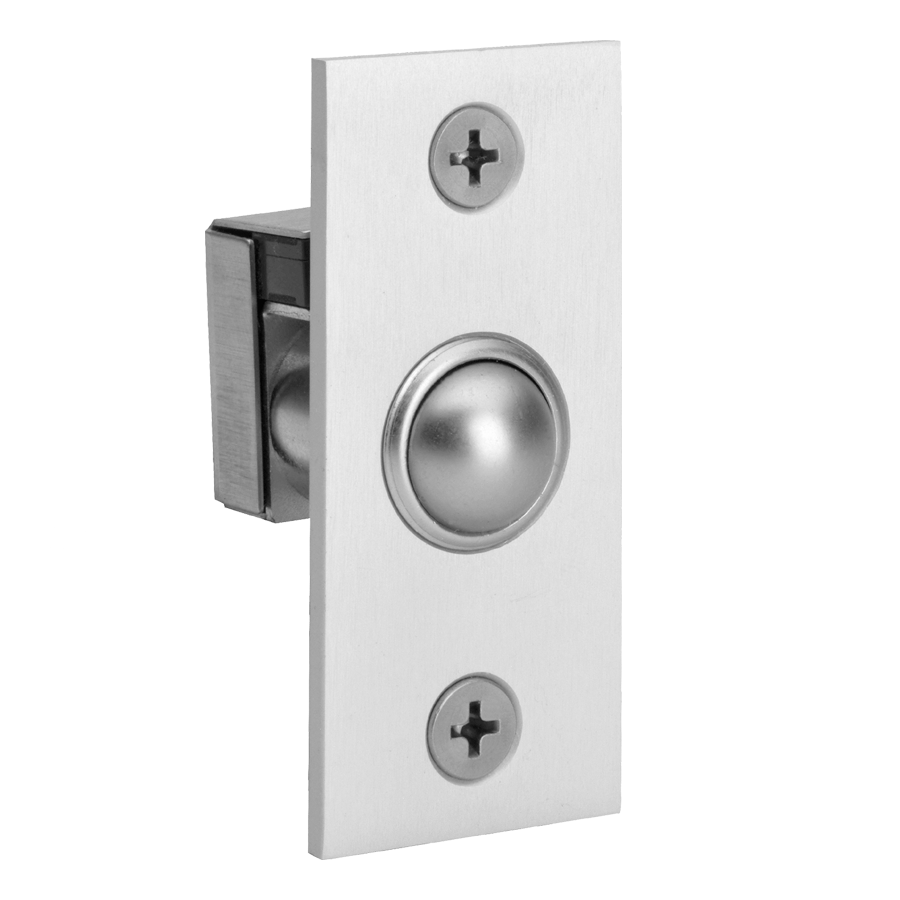

Security Door Controls DPS-11 Adjustable SPDT Door Position Ball Switch, Satin Aluminum Faceplate

Security Door Controls DPS-11 Door Position Adjustable Ball Switch SPDT is an essential component for effective door position monitoring. Designed with precision, this electromechanical ball switch provides a reliable means to track whether a door is open or closed, ensuring the integrity of your access control system. Installed within the door frame, the DPS-11 operates seamlessly with alarm panels and door controllers, alerting facility management to any changes in door status. Constructed with a satin aluminum faceplate (628), the DPS-11 measures 2-3/4" x 1-1/4" x 1/8" and features a maximum door gap of 3/16", making it suitable for a variety of applications, including swinging and sliding doors. The adjustable ball design accommodates wider door gaps, ensuring versatility in installation. With a contact rating of 5 Amps at 30 VDC resistive, this switch is built to handle high-current applications, such as mantraps and auto relock systems. The DPS-11 is a dependable choice for professionals seeking a cost-effective solution for door position status monitoring, making it an invaluable addition to any access control setup. Ensure your facility's security with this robust and reliable door position sensor.

Door Position Adjustable Ball Switch SPDT, 2-3/4in x 1-1/4in x 1/8 Faceplate, 3/16 Max Space, 628/US28 Satin Aluminum

SDC’s DPS series sensors employ electromechanical ball switches to provide a cost-effective means of monitoring door position status (DPS). DPS monitors the current position of the door, open or closed. DPS switches change state when the door is opened or closed. Installed in the edge of the door frame, DPS switches are wired into remote devices, typically alarm panels or door controllers, to notify facility management of a change in state - aiding in an access control system’s integrity. To ensure an access control system’s integrity, DPS switches should be used in conjunction with a locking device and a form of lock status monitoring dependent on the application - lock status, bond alert status (BAS), etc.

Features:

• Door position status (DPS)
• Electromechanical ball switches
• Adjustable for wide door gap

Models:

• DPS-11: Adjustable ball, SPDT
• DPS-11-2: Adjustable ball, SPDT (2)

Applications:

• Compatible with swinging or sliding doors.
• Recommended uses include communicating doors, mantraps, auto relock switches and high current applications.

DPS-11 Specifications:

• Faceplate: Aluminum, 628
• Dimensions: 2-3/4" x 1-1/4" x 1/8"
• Weight: 1 lb
• Contact: SPDT
• Rating: 5 Amp @ 30 VDC resistive
• Depth: 1-1/4"
• Door Gap (Max): 3/16"

DPS-11-2 Specifications:

• Faceplate: Aluminum, 628
• Dimensions: 2-3/4" x 1-1/4" x 1/8"
• Weight: 1 lb
• Contact: SPDT (2)
• Rating: 5 Amp @ 30 VDC resistive
• Depth: 1-1/4"
• Door Gap (Max): 3/16"
