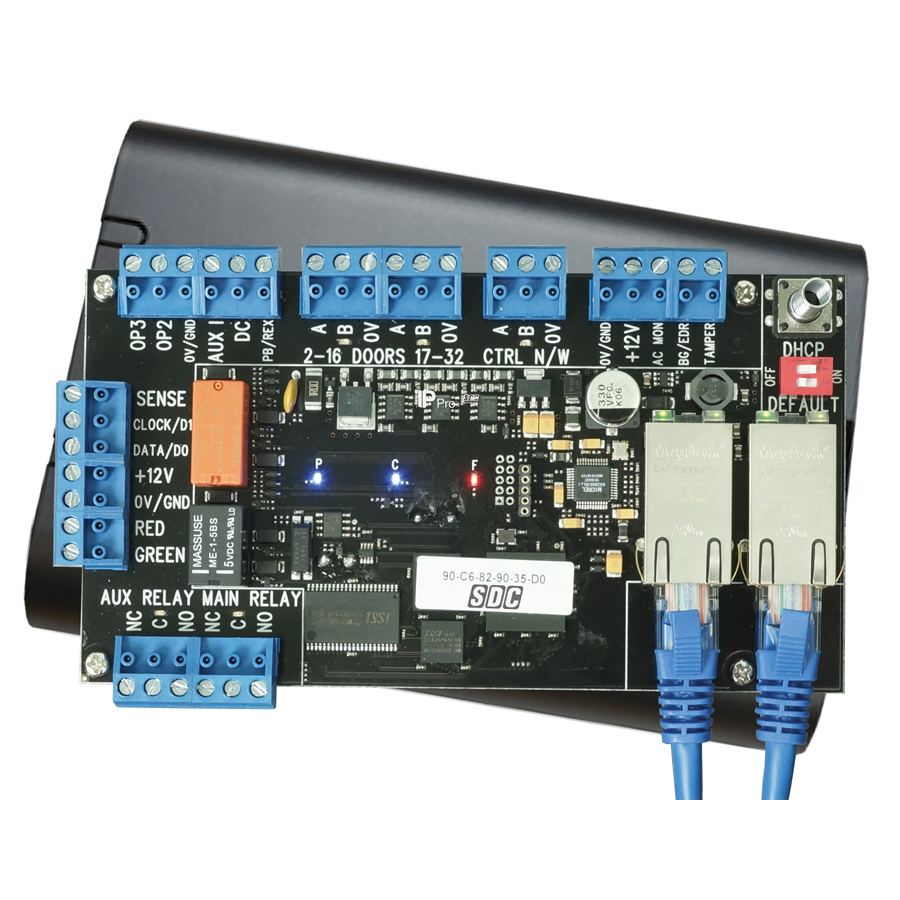

Security Door Controls IPDCE IP Pro Controller Board w/ Enclosure, Dual Ethernet, LED Status, 5000 Events

Security Door Controls IPDCE IP Pro Controller Board w/ Enclosure offers an efficient solution for managing door access control with ease. Designed for scalability, this controller can handle one door directly while allowing expansion capabilities up to 100 doors within a network, making it ideal for various applications. The inclusion of two Ethernet ports not only streamlines connectivity but also helps save valuable resources by reducing long cable runs. This robust controller features secure built-in software for managing up to 32 doors via any standard web browser, enabling real-time monitoring and user management. Additionally, the onboard audit trail can store up to 5,000 events, ensuring comprehensive tracking of access activity. The IPDCE supports multiple credential modes, accommodating up to 60,000 users with the flexibility of two credentials per user. Constructed for indoor use, this unit operates within a temperature range of 14°F to 122°F and includes visual status indicators (LED) for easy monitoring. With a durable metal enclosure and compliance with PoE+ standards, it ensures reliable performance. Experience the benefits of advanced door access control with the Security Door Controls IPDCE, where safety meets innovation and convenience.

IP Pro Controller Board w/ Enclosure, Two Ethernet Ports, Door Position Status (DPS), Request to Exit (REX), Visual Status Indicators (LED), 5000 Event Audit Trail.

Bring safe, secure, easy to implement door access control to the network’s edge without the headaches of costlier, more complicated enterprise solutions. IPPro single door access controllers come with two ethernet ports for interfacing with an additional IP device. They allow expansion from one standalone door up to a 100-door "grid." The additional ethernet port allows IT departments to save a port when connecting an extra door at the server. Installers can eliminate a long cable run when connecting an additional IP device. Every IPPro controller comes with secure, built-in software to manage up to 32 doors from any standard web browser to allow for real-time monitoring, user management and audit trail up to 5,000 events. Or, download our free plus PCClient software to control up to 100 doors from a single PC. IPPro plus is a role-based access control software suite with different interface modules.

Features:

• Controls one door directly, with unlimited expansion capabilities
• TCP/IP communications (100/10Mbps)
• DHCP or Static IP addresses
• Password protected built-in web server or free downloadable ‘Grid’ software
• Two ethernet ports
• Live transaction monitoring
• Entry/exit Wiegand reader capability
• Reader short circuit protection
• Compliant with PoE+ standard
• 60,000 users (up to 2 credentials/ user)
• Multiple credential modes & batch card enrollment
• 250 time zones & 1,000 user/door groups
• Holiday support, scheduled events & temporary users
• Audit Trail – up to 5,000 events from onboard storage, unlimited events w/plus
• Visual status indicators (LED)
• Anti-tailgating & anti-passback
• Supports Explorer, Firefox & Chrome
• Door position status (DPS)
• Request-to-exit (REX)
• Programmable auxiliary input
• Lock relay & auxiliary relay outputs
• Two programmable solid-state Outputs
• Anti-tamper input
• Database backup support
• Enclosure included

Models:

• IPDCE: IPPro controller board
• IPDSE: IPPro door station expansion board

Applications:

• The addition of a second ethernet port allows the IT department to save a port when connecting an additional door at the server. Installers have the potential to eliminate a long cable run to connect an additional IP device. It’s like having a local area network for your doors without all the headaches of an enterprise system.

IPDCE Specifications:

• Type: IPPro controller board
• Input: 12 VDC
• Current Draw (Max): 350 mA @ 12 VDC
• Operating Environment: 14°F – 122°F (indoor use only)
• Dimensions: 6" x 3-1/2" x 7/8" (board), 9-1/4" x 6-1/2" 2-3/16" (enclosure)
• Weight: 1 lb
• Relay Output Type: SPDT (2)
• Relay Contact Rating: 5 Amp @ 30 VDC resistive (main - lock), 1 amp @ 30 VDC resistive (auxiliary)
• Connections: Digital Inputs: 4 dry contact inputs, Ethernet: RJ45 (controller only) RS-485 terminal bus reader power – 12VDC (up to 500 mA). Reader data – Wiegand (26 bit to 37 bit). Reader LED Control – Red & green two solid state outputs (100mA max)

IPDSE Specifications:

• Type: IPPro door station expansion board
• Input: 12 VDC
• Current Draw (Max): 120 mA @ 12 VDC
• Operating Environment: 14°F –122°F (indoor use only)
• Dimensions: 6" x 3-1/2" x 7/8" (board), 9-1/4" x 6-1/2" 2-3/16" (enclosure)
• Weight: 1 lb
• Relay Output Type: SPDT (2)
• Relay Contact Rating: 5 Amp @ 30 VDC resistive (main - lock), 1 amp @ 30 VDC resistive (auxiliary)
• Connections: Digital Inputs: 4 dry contact inputs, RS-485 terminal bus, reader power – 12VDC (Up to 500 mA). Reader data – Wiegand (26 bit to 37 bit). Reader LED control – Red & Green. Two solid state outputs (100mA max)
