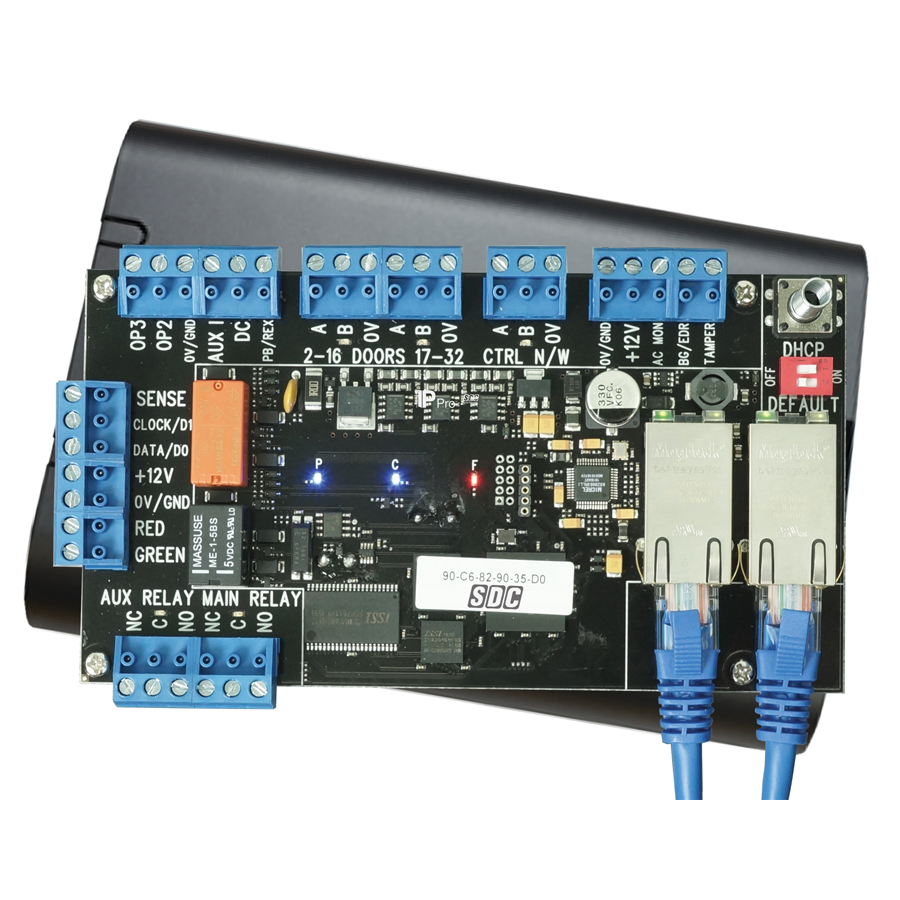

Security Door Controls IPDSE IP Pro Door Station Expansion Board w/ Enclosure

Security Door Controls IPDSE IP Pro Door Station Expansion Board w/ Enclosure provides an innovative solution for expanding door access control with ease and efficiency. This expansion board allows seamless integration into existing IPPro single door access controllers, offering the capability to control one door directly while supporting unlimited expansion up to a 100-door grid. With dual Ethernet ports, IT departments can optimize connectivity by saving server ports and minimizing cable runs. Equipped with secure, built-in software, the IPDSE empowers users to manage up to 32 doors via any standard web browser, allowing for real-time monitoring, user management, and an audit trail of up to 5,000 events. It complies with the PoE+ standard and supports multiple credential modes, accommodating up to 60,000 users. The visually informative LED indicators enhance user interaction, while features like anti-tailgating, anti-passback, and programmable inputs ensure top-notch security. Designed for indoor use within a temperature range of 14°F to 122°F, the IPDSE is housed in a durable metal enclosure and weighs just 1 lb. With its robust specifications, including SPDT relay outputs and support for both DHCP and static IP addressing, this expansion board is an ideal choice for those looking to enhance their access control systems efficiently.

IP Pro Door Station Expansion Board w/ Enclosure

Bring safe, secure, easy to implement door access control to the network’s edge without the headaches of costlier, more complicated enterprise solutions. IPPro single door access controllers come with two ethernet ports for interfacing with an additional IP device. They allow expansion from one standalone door up to a 100-door "grid." The additional ethernet port allows IT departments to save a port when connecting an extra door at the server. Installers can eliminate a long cable run when connecting an additional IP device. Every IPPro controller comes with secure, built-in software to manage up to 32 doors from any standard web browser to allow for real-time monitoring, user management and audit trail up to 5,000 events. Or, download our free plus PCClient software to control up to 100 doors from a single PC. IPPro plus is a role-based access control software suite with different interface modules.

Features:

• Controls one door directly, with unlimited expansion capabilities
• TCP/IP communications (100/10Mbps)
• DHCP or Static IP addresses
• Password protected built-in web server or free downloadable ‘Grid’ software
• Two ethernet ports
• Live transaction monitoring
• Entry/exit Wiegand reader capability
• Reader short circuit protection
• Compliant with PoE+ standard
• 60,000 users (up to 2 credentials/ user)
• Multiple credential modes & batch card enrollment
• 250 time zones & 1,000 user/door groups
• Holiday support, scheduled events & temporary users
• Audit Trail – up to 5,000 events from onboard storage, unlimited events w/plus
• Visual status indicators (LED)
• Anti-tailgating & anti-passback
• Supports Explorer, Firefox & Chrome
• Door position status (DPS)
• Request-to-exit (REX)
• Programmable auxiliary input
• Lock relay & auxiliary relay outputs
• Two programmable solid-state Outputs
• Anti-tamper input
• Database backup support
• Enclosure included

Models:

• IPDCE: IPPro controller board
• IPDSE: IPPro door station expansion board

Applications:

• The addition of a second ethernet port allows the IT department to save a port when connecting an additional door at the server. Installers have the potential to eliminate a long cable run to connect an additional IP device. It’s like having a local area network for your doors without all the headaches of an enterprise system.

IPDCE Specifications:

• Type: IPPro controller board
• Input: 12 VDC
• Current Draw (Max): 350 mA @ 12 VDC
• Operating Environment: 14°F – 122°F (indoor use only)
• Dimensions: 6" x 3-1/2" x 7/8" (board), 9-1/4" x 6-1/2" 2-3/16" (enclosure)
• Weight: 1 lb
• Relay Output Type: SPDT (2)
• Relay Contact Rating: 5 Amp @ 30 VDC resistive (main - lock), 1 amp @ 30 VDC resistive (auxiliary)
• Connections: Digital Inputs: 4 dry contact inputs, Ethernet: RJ45 (controller only) RS-485 terminal bus reader power – 12VDC (up to 500 mA). Reader data – Wiegand (26 bit to 37 bit). Reader LED Control – Red & green two solid state outputs (100mA max)

IPDSE Specifications:

• Type: IPPro door station expansion board
• Input: 12 VDC
• Current Draw (Max): 120 mA @ 12 VDC
• Operating Environment: 14°F –122°F (indoor use only)
• Dimensions: 6" x 3-1/2" x 7/8" (board), 9-1/4" x 6-1/2" 2-3/16" (enclosure)
• Weight: 1 lb
• Relay Output Type: SPDT (2)
• Relay Contact Rating: 5 Amp @ 30 VDC resistive (main - lock), 1 amp @ 30 VDC resistive (auxiliary)
• Connections: Digital Inputs: 4 dry contact inputs, RS-485 terminal bus, reader power – 12VDC (Up to 500 mA). Reader data – Wiegand (26 bit to 37 bit). Reader LED control – Red & Green. Two solid state outputs (100mA max)
