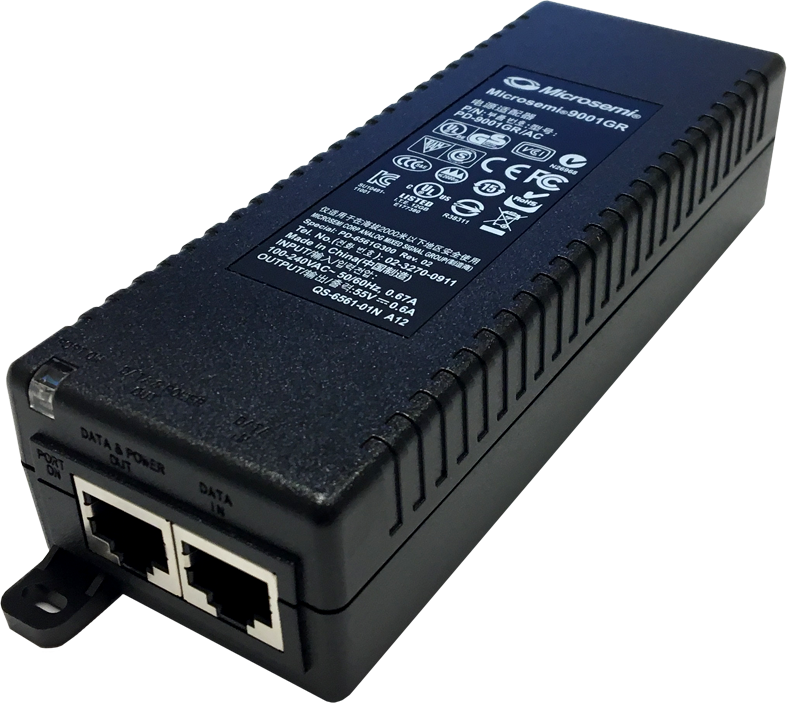

Security Door Controls IPI-30 IP Pro Injector 30W PoE+

Security Door Controls IPI-30 IP Pro Injector 30W PoE+ offers a robust solution for managing access control systems with ease and efficiency. This powerful injector allows direct control of one door while providing unlimited expansion capabilities, accommodating up to 100 doors in a grid-like configuration. Built for seamless operation, the IPI-30 supports TCP/IP communications at 100/10Mbps and offers flexibility with DHCP or static IP addressing. Equipped with a password-protected built-in web server and free downloadable grid software, this device facilitates live transaction monitoring and supports multiple credential modes, including proximity, smart cards, and multi-technology readers. The IPI-30 is compliant with the PoE+ standard, ensuring reliable power delivery with 30 watts guaranteed output. With the capability to manage up to 15,000 users and 250 user groups or time zones, this injector is perfect for diverse applications. It includes essential features such as anti-tailgating, anti-passback, scheduled events, and a comprehensive audit trail of up to 5,000 events. The IPI-30 also provides status LED indicators for diagnostics, ensuring that your access control system operates smoothly. Ideal for both residential and commercial settings, the Security Door Controls IPI-30 is a versatile and powerful addition to any security setup.

IP Pro Injector 30W PoE+

IP Pro Line of IP-based Access Controllers allows expansion from one Standalone door up to a 100-door "Grid." It's like having a local area network for your doors without all the headaches of an enterprise system.

Features:

• Controls one door directly, with unlimited expansion capabilities
• TCP/IP communications (100/10Mbps)
• DHCP or static IP addresses
• Password protected built-in web server or free downloadable 'grid' software
• Live transaction monitoring
• Entry & exit reader capability
• Supports industry standard proximity, smart card, and multi-technology readers (Wiegand output)
• Reader short circuit protection
• Compliant with PoE+ standard
• 15,000 users (up to 2 credentials per user)
• Batch card enrollment
• 250 User groups/time zones/door groups
• Holiday support
• Scheduled events
• Temporary users
• Audit trail – Up to 5,000 events from on-board storage, unlimited events vis plus software (limited only by your allocated server space)
• Status LED's - Power, communications, & fault on-board diagnostic indicators
• Anti-tailgating
• Anti-passback (global or localized)
• Supported browsers: Microsoft Internet Explorer, Firefox, Google Chrome
• Multiple credential modes: Card only, pin only, pin or card, pin & card
• Door status monitoring input
• Request-to-exit (REX) input
• Programmable auxiliary input
• Lock relay output
• Auxiliary relay output
• (2) Programmable solid-state outputs
• Tamper input
• Database backup support

IPI-30 Specifications:

• Type: IPPro Injector
• Input Voltage: 120 VAC
• Input Power: 80 Watts (Max)
• Output Voltage: 55 VDC
• User Port Power: 30 Watts (Guaranteed)
• PoE+ Output Pin Assignment and Polarity: 4/5 (+), 7/8 (-)
• Weight: 1 lb
