Security Door Controls IPRW300 Prox Reader offers a sleek and sophisticated solution for your access control needs. Designed for seamless integration with most access control systems, this mullion-mounted proximity reader features a 125 kHz HID-compatible technology along with a standard 26-bit Wiegand output. Its compact design ensures it fits perfectly in tight spaces while maintaining functionality. Constructed with an IP67-rated housing, the IPRW300 is suitable for both indoor and outdoor environments, providing reliable performance in various weather conditions. The reader is equipped with a bright LED indicator that signals power status with red and grants access with green, while an audible annunciator confirms card presence. This functionality can be controlled externally for added flexibility. With a read range of up to 5 inches and a maximum cable distance of 328 feet at 12 VDC, the IPRW300 ensures efficient communication with your host system. It operates within a temperature range of -40ºF to +149ºF, making it ideal for diverse climates. The included black and white snap-on covers allow for customization, enhancing the aesthetic without compromising security. Elevate your access control system with the dependable and versatile Security Door Controls IPRW300 Prox Reader.

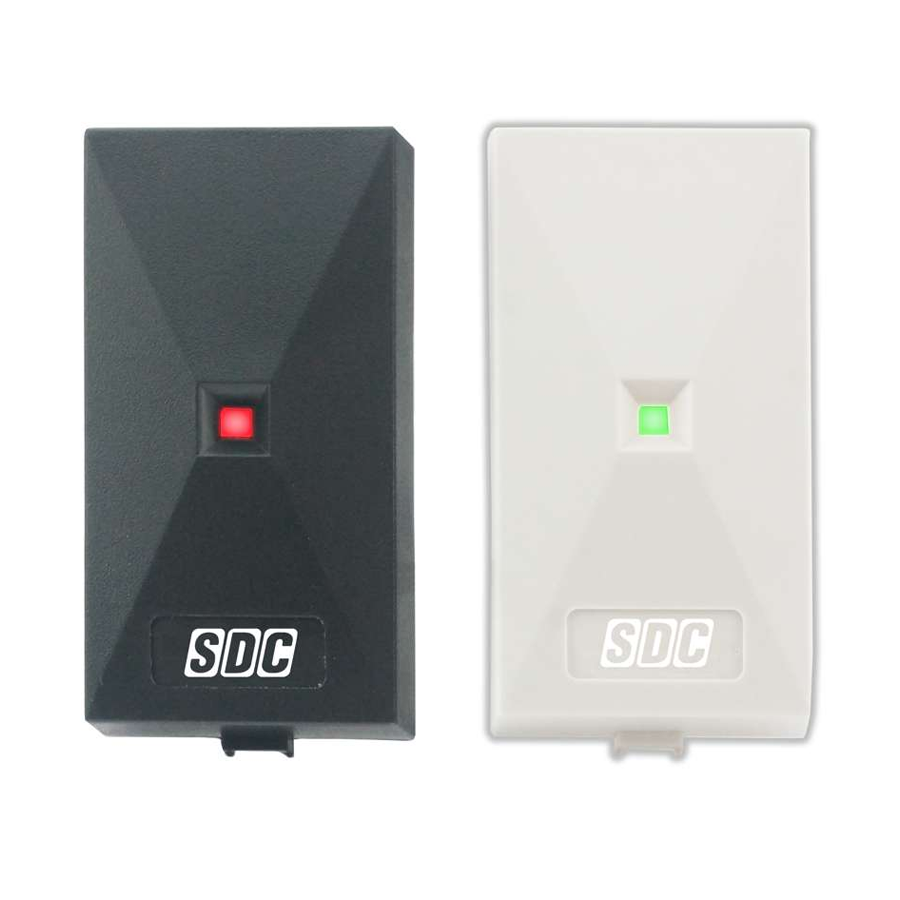

Prox Reader, Mullion Mount, 26-Bit Weigand Output, 125 kHz Prox Compatible, Includes Black and White Snap-On Covers.
SDC’s IPRW series is the perfect companion for our IPPro controller. The IPRW Wiegand proximity reader is a sleek, sophisticated reader that will interface with most access control systems. It combines a 125KHz HID-compatible proximity reader and standard 26- bit Wiegand output with compact design for surface or mullion mounting. An IP67 rated housing makes the IPRW reader suitable for use in indoor or outdoor environments. An LED indicator lights red to indicate power, or green to indicate an authorized access (controlled externally by host). The audible annunciator will indicate when a card is present or can be controlled externally. When paired with SDC’s IPPro single door controller, compatibility is guaranteed.
Features:
Models:
IPRW300 Specifications:
IPRW500 Specifications:
Alternate Codes: IPRW300
Category: Access Control, Hardwired, Prox Readers & Keypads (Hardwired)
Color: Black, White
Communication Frequency: 125 KHz
Communication Technology: 26-bit, HID prox, Wiegand
Cover: Plastic, Snap-On
Current Draw: 30mA Typical, 75mA Maximum
Depth: 45/64"
Door Application: Access Control
Features: Potted Electronics
Feedback: Audible Annunciation, Visual Status Indicators (LED)
Height: 3-13/64"
Manufacturer: Security Door Controls
Mounting: Mullion
Operating Environment: In-Door, Out-Door
Operating Temperatures: -40 to 149F (-4.4 to 65C)
Read Range: Up to 5"
Reader Type: Entry / Exit Reader
Series: IPRW
Voltage: 5-16
Voltage Type: VDC - Direct
Weather Rating: IP67
Weatherproof: Yes
Weight: 2lbs
Width: 1-45/64"
