Security Door Controls IPRW500 Prox Reader is a cutting-edge solution for enhancing access control systems. Designed for both indoor and outdoor use, this reader features an IP67-rated housing that ensures durability and reliability in various environmental conditions. With a sleek, compact design suitable for single gang mounting, it seamlessly integrates into existing security frameworks. Equipped with a 125 kHz HID-compatible proximity reader and standard 26-bit Wiegand output, the IPRW500 allows for effective communication with most access control systems. The reader boasts an impressive read range of up to 8 inches, making it user-friendly for both entry and exit points. The device also includes black and white snap-on covers, offering flexibility in aesthetics to match any setting. Visual and audible indicators enhance usability, with an LED light signaling access status and an audible annunciator confirming card detection or external control. Operating efficiently within a voltage range of 5-16 VDC and drawing a typical current of 30mA, the IPRW500 is both energy-efficient and reliable. For building professionals and homeowners seeking robust security solutions, Security Door Controls IPRW500 Prox Reader delivers exceptional performance and adaptability, ensuring peace of mind in access management.

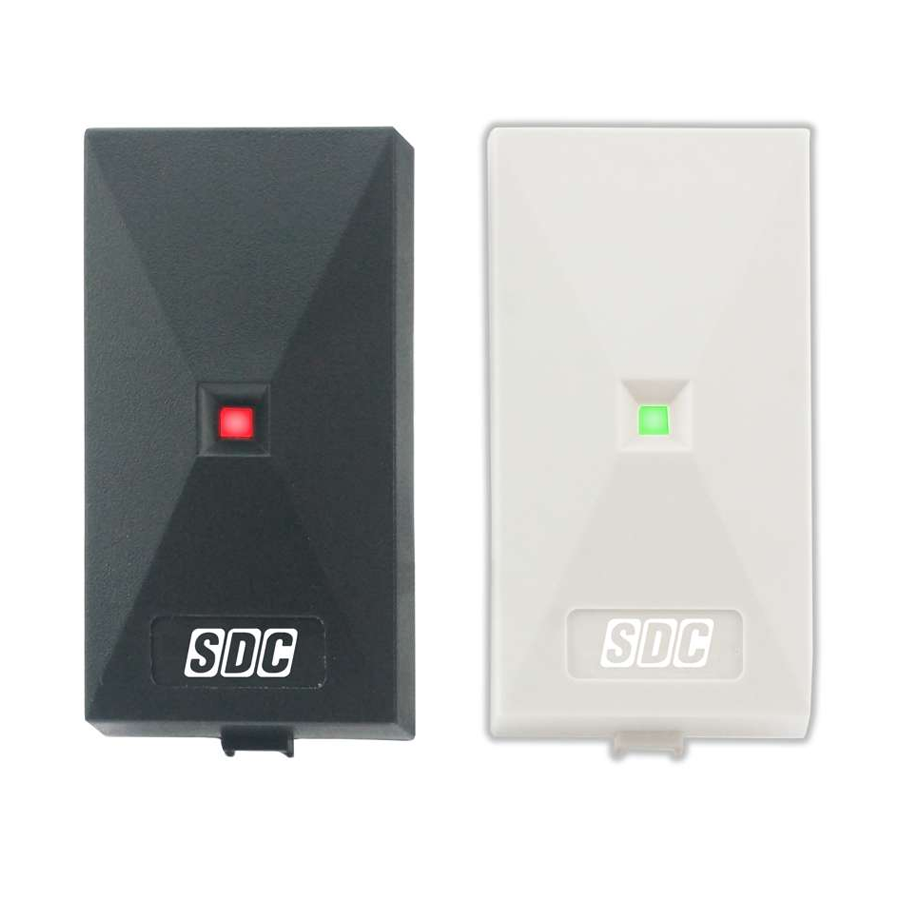

Prox Reader, Single Gang Mount, 26-Bit Weigand Output, 125 kHz Prox Compatible, Includes Black and White Snap-On Covers.
SDC’s IPRW series is the perfect companion for our IPPro controller. The IPRW Wiegand proximity reader is a sleek, sophisticated reader that will interface with most access control systems. It combines a 125KHz HID-compatible proximity reader and standard 26- bit Wiegand output with compact design for surface or mullion mounting. An IP67 rated housing makes the IPRW reader suitable for use in indoor or outdoor environments. An LED indicator lights red to indicate power, or green to indicate an authorized access (controlled externally by host). The audible annunciator will indicate when a card is present or can be controlled externally. When paired with SDC’s IPPro single door controller, compatibility is guaranteed.
Features:
Models:
IPRW300 Specifications:
IPRW500 Specifications:
Alternate Codes: IPRW500
Category: Access Control, Hardwired, Prox Readers & Keypads (Hardwired)
Color: Black, White
Communication Frequency: 125 KHz
Communication Technology: 26-bit, HID prox, Wiegand
Cover: Plastic, Snap-On
Current Draw: 30mA Typical, 75mA Maximum
Depth: 13/32"
Door Application: Access Control
Features: Potted Electronics
Feedback: Audible Annunciation, Visual Status Indicators (LED)
Height: 4-39/64"
Manufacturer: Security Door Controls
Mounting: Single Gang
Operating Environment: In-Door, Out-Door
Operating Temperatures: -40 to 149F (-4.4 to 65C)
Read Range: Up to 8"
Reader Type: Entry / Exit Reader
Series: IPRW
Voltage: 5-16
Voltage Type: VDC - Direct
Weather Rating: IP67
Weatherproof: Yes
Weight: 2lbs
Width: 3"
