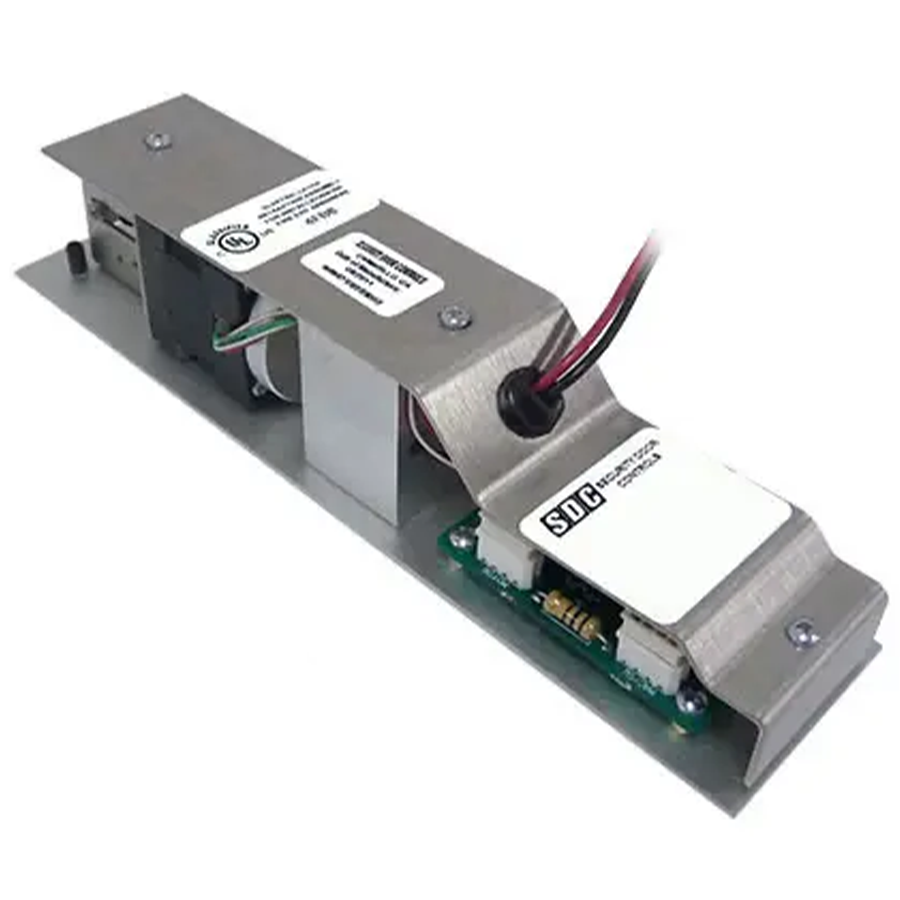

Security Door Controls LR100-JAK QuietDuo Retrofit Motorized Electric Latch Retraction Kit is a cutting-edge solution designed for seamless integration with Jackson 2095 and 2085 exit devices. This kit enables electric access control and dogging of panic and fire-rated mechanical exit devices, enhancing both security and convenience. When energized, the LR100-JAK retracts the exit device latch and depresses the pushpad, allowing for easy push and pull operation of the door, thereby ensuring rapid egress in emergencies. Compatible with various access control systems, it eliminates the need for a door sequencer for manual doors, making it ideal for high-traffic environments. The LR100-JAK features a low current draw of 1.5 Amp inrush and 200 mA continuous, leading to significant energy savings. Its motorized design offers quieter operation and greater durability compared to traditional solenoids. Designed for retrofitting, this kit can be installed without removing the existing exit device, thereby saving time and reducing installation costs. With certifications including ANSI and UL 10C, the LR100-JAK is a reliable choice for those seeking robust and efficient security solutions. Elevate your door security with this innovative electric latch retraction kit, crafted for optimal performance and ease of use.

QuietDuo, Retrofit Motorized Electric Latch Retraction (ELR) Kit, Jackson Field Install Kit for 2095/2085 Exits, 36in Only Opening

SDC’s QuietDuo LR100 series retrofit electric latch retraction kits enable electric access control and dogging of panic and fire rated mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door. The latch retraction mechanism may be activated by an access control, remote control device or building automation system. No door sequencer required for a pair of manual doors when connected to a suitable power supply. The exit device always provides uninhibited egress. The patented design was the first retrofit motorized electric latch retraction kit brought to market and has been recognized as the market leader ever since. The use of a motorized electric latch retraction device provides several advantages over solenoids including lower current draw, quieter operation and greater durability over time. Designed with cost savings in mind, SDC’s LR100 series retrofit ELR kits not only eliminate the need for costly replacements of existing exit devices, but also provide cost savings on installation and power requirements due to significantly less labor time and current draw when compared to competitive retrofit kits. LR100 kits retrofit select exit device brands without removing the device from the door. LR100 models are one unit completely housed within the rail of the device behind the access cover, whereas LR100-EM models are two piece space saver units, intended to gain up to one inch in spacing within the device, placing the controller board externally to accommodate smaller field cut devices for smaller openings or where space is limited within the rail.

Features:

• Motorized electric latch retraction and dogging
• Panic and fire rated devices
• Simultaneous latch retraction, dogging and pushpad depression. Select models do not retract pushpad, only retract the latch.
• High traffic use
• Low current draw
• Low energy operator compatible

Models:

• LR100: Motorized electric latch retraction kit
• LR100-EM: Motorized electric latch retraction kit, external module

Applications:

• SDC’s retrofit motorized electric latch retraction kits are designed to be field installed. However, SDC also offers to install the kit at SDC’s factory. Simply send the mechanical exit device brand of your choice to SDC for factory install. The table below outlines exit device combability and part numbers for both field install and factory installed LR100 kits.

LR100 Specifications:

• Type: Retrofit ELR kit
• Input: 24 VDC ± 10%
• Current Draw: 1.5 Amp inrush, 200 mA continuous
• Latch Retraction: Motorized

LR100-EM Specifications:

• Type: Retrofit ELR kit, external module
• Input: 24 VDC ± 10%
• Current Draw: 1.5 Amp inrush, 200 mA continuous
• Latch Retraction: Motorized

Specify Model:

• Adams Rite: LR100ARK, LR100ARK-EM, LR100AREXK-EM
• Arrow: LR100AWK, LR100AWK-ED910
• Corbin Russwin: LR100CRK, LR100CRK-EM
• Cal-Royal: LR100CAK, LR100CAK-9800, LR100CAK-EM
• Design Hardware: LR100DHK
• Detex: LR100DXK
• Dorma: LR100DAK
• Dor-O-Matic: LR100FAK, LR100FAK-EM, LR100DMK
• Falcon: LR100FRK
• First Choice: LR100FCK, LR100FCK-EM
• Hager: LR100HK, LR100HK-EM
• IDC: LR100IDCK, LR100IDCK-EM
• Jackson: LR100JAK
• Marks: LR100MDK
• Marshall Best: LR100MBSK, LR100MBSK-EM
• Pamex: LR100PAK, LR100PAK-EM
• PDQ: LR100PDQK
• PHI (Precision): LR100PDK
• Sargent: LR100SGK, LR100SGK-EM
• SDC: LR100SDCK, LR100SDCK-EM
• Stanley K2: LR100K2K, LR100K2K-EM
• Tell: LR100TEK
• Townsteel: LR100TSK, LR100TSK-EM, LR100TSK-55/56, LR100TSK-65/67
• Von Duprin: LR100VDK-22, LR100VDK-22V2, LR100-VDK-22-EM, LR100-VDK-22V2-EM, LR100VDK, LR100VDK-EM
• Yale: LR100YDK, LR100Y6K, LR100YDK-EM, LR100Y6K-EM, LR100YDK-42/48
