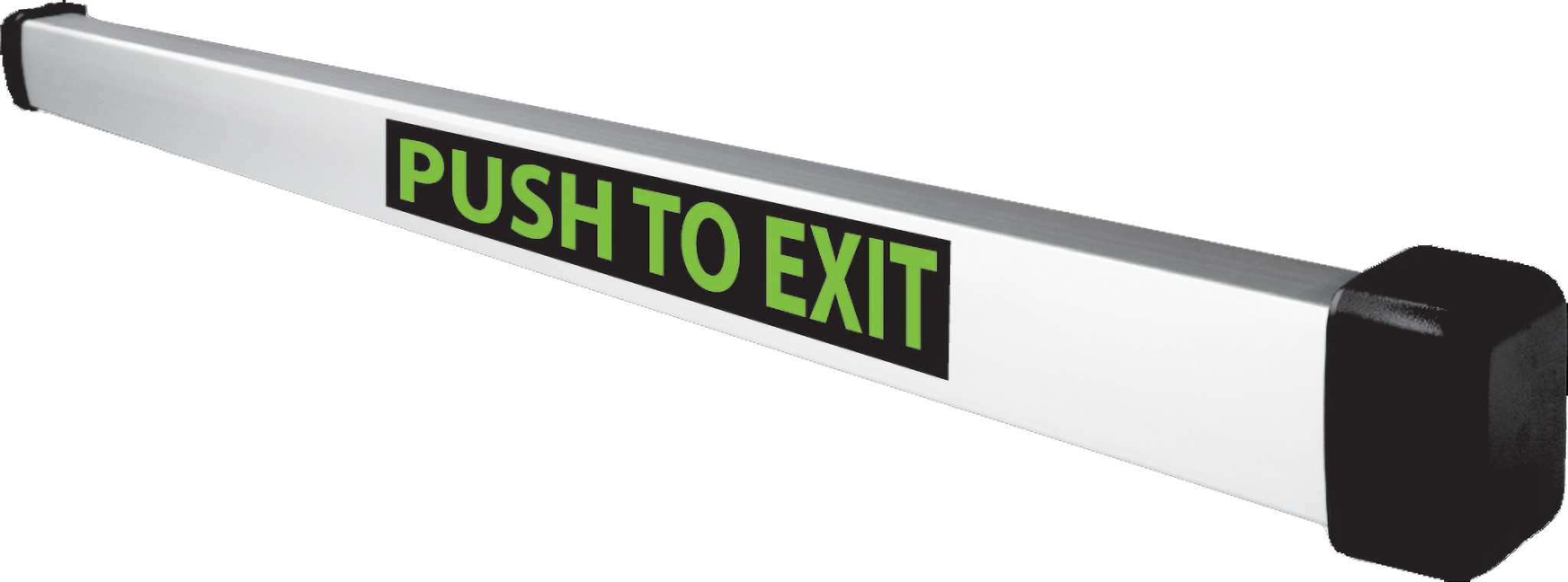

Security Door Controls PSB560-Y-36 Exit Pressure Sense Bar, Non-Latching, Tri-Fail Safe, 12/24VDC, 36in, Black

Security Door Controls PSB560-Y-36 Request to Exit Pressure Sense Bar offers advanced safety and reliability for access-controlled doors. This non-latching device features tri-fail safe sensors, which ensure that egress is seamless and requires no prior knowledge of operational requirements. When gentle pressure is applied to the bar, redundant solid-state pressure sensors trigger an immediate release of electromagnetic door locks, allowing for unobstructed exit. Constructed from durable heavy-duty aluminum with metal end caps, the PSB560-Y-36 is designed for high traffic use and can withstand varying temperatures from 0 to 150°F. Its narrow, low-profile design of just 1-7/8" projection makes it ideal for aesthetically pleasing glass openings. The device's pressure sensitivity is factory set to 5 lbs but can be adjusted up to 15 lbs, providing flexibility for high-security applications. Installation is straightforward, with easy-to-plug connections that simplify troubleshooting. The included PT-2U power transfer loop and 10-foot, eight-conductor cable facilitate quick setup. With no moving parts, the pressure sense technology ensures quiet and reliable operation, making it suitable for all users, including those with mobility challenges. For a dependable egress solution, the PSB560-Y-36 excels in safety, ease of use, and robust construction.

Request to Exit Pressure Sense Bar, Non-Latching, Tri-Fail Safe Sensors, 12/24VDC, SPDT 3 Amp Contact, with PT-2U Power Transfer Loop, 36in, 335 Flat Black

Stable and reliable pressure sense technology. Building codes essentially state that egress through access controlled doors must not require prior knowledge of operational requirements. Meeting this criteria, SDC’s patented SureExit PSB560 series pressure sense bars are designed to release electromagnetic door locks for uninhibited egress. When slight pressure is applied to the non-latching bar, either of the two redundant solid state pressure sensors are actuated causing the electronics to immediately release the electromagnetic door locks. A third redundant micro switch is automatically activated to release the door if both sensors or the electronics fail. This automatic emergency release switch does not require prior knowledge to find or use. Door operation will continue without the inconvenience of emergency service. The SDC SureExit is the only tri-failsafe exit bar providing unequaled safety and reliability. Unlike touch sensors, activation may be accomplished while wearing heavy gloves, by the hip through a coat, or using a briefcase. Superior egress safety is provided for frail, disabled or wheelchair confined persons unable to touch the bar and is easily activated by a cane or bump from a walker or wheelchair. The PSB560 series uses heavy duty aluminum extrusion and metal caps. The mounting assembly is all metal, and no plastic. The rigid construction prevents any malfunction due to sagging or warped doors or tweaked glass door stiles. With no moving parts the pressure sense technology does not suffer wear and provides quick and quiet operation.

Features:

• Reliable pressure sense technology
• Sensor calibration not required
• Quick and quiet operation
• Tri-failsafe
• Heavy duty aluminum extrusion
• Metal end caps
• High traffic use
• Temperature tolerant
• Narrow, low-profile
• Two outputs
• Power transfer loop included (PT-2U)
• 10ft, eight conductor cable included
• Easy installation and troubleshooting
• Auto-sensing dual voltage

Models:

• PSB560: Pressure sense bar

Applications:

• Easy Installation and Troubleshooting: Wires plug into the PC board after the bar is mounted and the extruded cover slides on easily after the wire connections are made. For quick and easy servicing, the extruded cover slides off without removing the bar from the door exposing all internal parts.
• Narrow, Low Profile: The SureExit has a narrow profile with minimum projection from the door of only 17/8". The unobtrusive design is ideally suited for aesthetically superior glass openings.
• Sensor Calibration Not Required: Stable pressure sense technology does not require adjustment or tuning. When desired, pressure sensitivity can be increased up to 15 lbs to inhibit tampering for high security applications.
• Two Outputs: Two dry contacts for lock release, request-to-exit, alarm shunt, alarm activation or CCTV activation.
• Temperature Tolerant: Pressure sense technology operates from 0˚ to 150˚F and tolerates sudden and extreme temperature changes.

Specifications:

• Actuation: Pressure sense technology; tri-failsafe
• Activation Force: Factory set to 5 lbs, adjustable up to 15 lbs
• Input: 12/24 VDC ± 10%
• Current Draw: 115 mA maximum, 20 mA continuous
• Contact: SPDT (2) 3 Amp @ 30 VDC resistive
• Operating Temperature: 0º to 150º F
• Door Width: 36", 42", 48" (may be field cut)
• Door Stile:Narrow or wide
• Projection: 1-7/8"
• Weight: 6.5 lbs

Specify Length:

• 36: 36" Door opening
• 42: 42" Door opening
• 48: 48" Door opening

Finishes:

• V/628 - Dull aluminum
• Y/335 - Dull black
• S/629 - Bright stainless
• U/630 - Dull stainless
