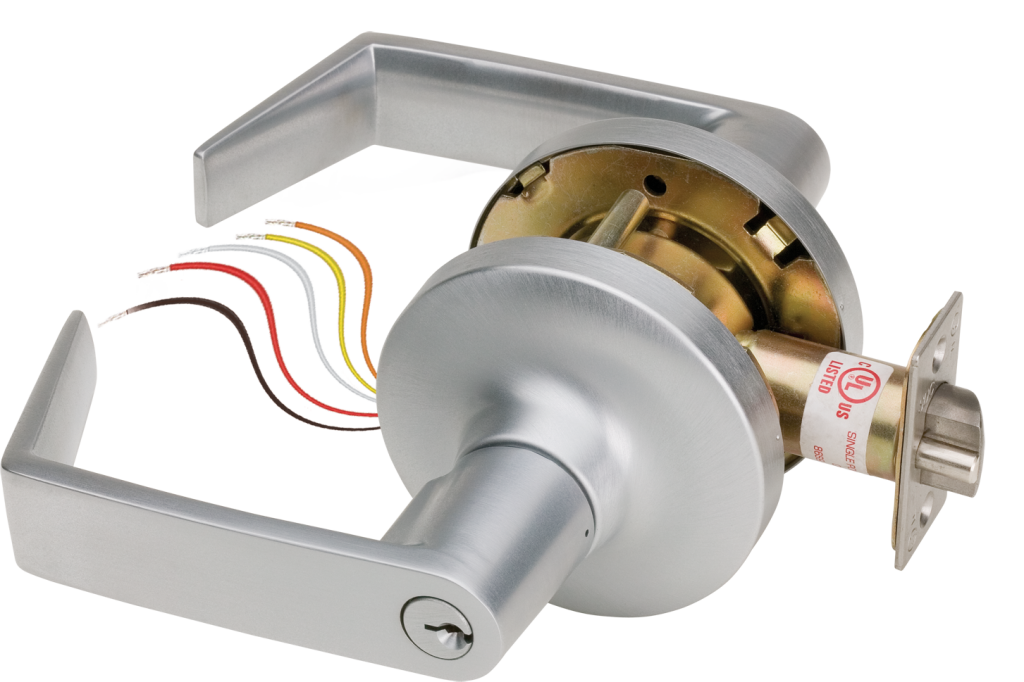

Security Door Controls Z7250-E-Q Electrified Cylindrical Lockset, FS, Dual Voltage, Schlage C, Grade 1, Satin Chrome

Security Door Controls Z7250-E-Q Electrified Cylindrical Lockset combines robust security features with advanced functionality, making it an ideal choice for commercial, industrial, and institutional environments. Designed for fail-safe operation, this lockset is locked when energized, ensuring that in the event of a power failure, egress is unhindered-perfect for fire safety applications. This Grade 1 cylindrical lockset features a dual voltage capability of 12/24VDC, allowing for flexible installation options. The vandal-resistant clutch mechanism enhances durability, while the clutched Eclipse lever provides a modern aesthetic and ease of use. With a 9/16" throw latchbolt and ANSI-standard strike, it ensures reliable performance while maintaining fire door integrity. The Z7250-E-Q is compatible with a variety of door thicknesses (1-3/4" to 2") and backsets (2-3/4"), simplifying both new and retrofit construction. It includes a power regulator and monitoring contacts for added functionality, while the satin chrome finish (626/US26D) delivers a sleek, professional look. For professionals seeking a dependable, code-compliant locking solution, the Security Door Controls Z7250-E-Q provides the perfect blend of security and versatility, ensuring peace of mind in high-traffic environments.

Electrified Cylindrical Lockset, FS Fail Safe, Dual Voltage 12/24VDC, Clutched Eclipse Lever, Schlage C 6-Pin Keyed Different, SPDT Output, ANSI Strike, Grade 1, Exterior Locked Only, Interior Free Egress, 626/US26D Satin Chrome

SDC’s Electra 7200 series solenoid controlled cylindrical locks are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse are required. These code compliant electric cylindrical locksets stay latched even when unlocked, maintaining fire door integrity and eliminating the need for exposed and vulnerable electric strikes and magnetic locks or request-to-exit devices. 7200 series models incorporate a grade 1 cylindrical lockset and vandal resistant clutch – proprietary to all SDC locksets. They replace most brands of mechanical locksets making them fully compatible with new and retrofit applications.

Features:

• Heavy duty cylindrical design
• New or retrofit construction
• Vandal resistant clutch
• Solenoid control
• Key latch retraction
• Field selectable dual voltage
• Power regulator included
• Latch status (LS)
• Optional: Request-to-exit (REX). Request-to-exit (REX) replaces latch status (LS).
• Optional: Trim options

Models:

• Z72: Solenoid controlled cylindrical lock

Applications:

• Failsecure Operation: Locked when de-energized, the failsecure mode is recommended for security applications, such as inner offices, equipment rooms and security mantraps. Loss of power causes all doors to lock. Battery backup is required for continued operation during a power loss.
• Failsafe Operation: Locked when energized, the failsafe mode is recommended for fire life safety applications, such as stairwell doors, perimeter exit doors and safety mantraps. Loss of power or a signal from the life safety system causes all doors to unlock for free uninhibited access and egress.
• Locked Outside Only: Unlocked by an access control or key from the outside. Uninhibited egress at all times by turning the inside lever handle.

Specifications:

• Type: Cylindrical, solenoid control
• Door Thickness: 1-3/4" to 2"
• Door Prep: ANSI A115.2
• Backset: 2-3/4"
• Latchbolt: 9/16" Throw
• Strike: Standard ANSI 4-7/8"
• Weight: 6 lbs
• Input: 12/24 VDC ± 10%
• Current Draw: 600 mA @ 12 VDC, 300 mA @ 24 VDC
• Monitoring Contacts: SPDT 3 Amps @ 30 VDC Resistive

Specify Trim:

• E: Eclipse rose
• G: Galaxy rose
• E5: Eclipse rose, I-Core prep
• G5: Galaxy rose, I-Core prep

Finishes:

• Q/626 - Dull chrome
• P/625 - Bright chrome
• C/605 - Bright brass
• D/606 - Dull brass
• H/613 - Dark oil rubbed bronze
