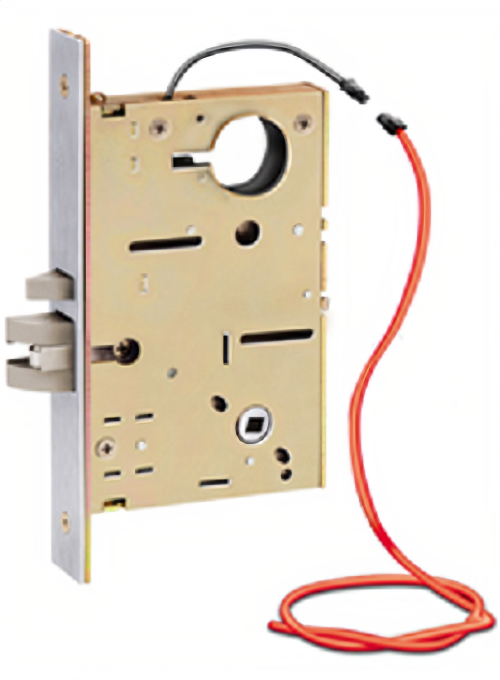

Security Door Controls Z7850-R-E-U Electrified Mortise Lock No Deadbolt combines advanced security features with robust construction, making it ideal for commercial, industrial, and institutional applications. This solenoid-controlled lockset is designed for locked outside only operation, ensuring uninhibited egress from the interior while offering keyed access from the exterior. With fail-safe functionality, the lock automatically unlocks during a power loss, enhancing safety in emergency situations. Crafted from durable 630/US32D stainless steel, the Z7850-R-E-U features a heavy-duty mortise design that withstands physical abuse, alongside a vandal-resistant clutch mechanism. It’s compatible with new and retrofit installations, offering field-selectable dual voltage (12/24 VDC) and reversible handing for added versatility. The lockset accommodates a door thickness of 1-3/4 inches and includes a 3/4-inch throw stainless steel latchbolt, providing a reliable and secure closure. Additionally, the Eclipse trim adds a modern aesthetic, making it suitable for various settings. Weighing just 7 lbs, this lock maintains fire door integrity while eliminating the need for exposed electric strikes or magnetic locks. For those seeking a dependable, code-compliant solution, the Security Door Controls Z7850-R-E-U is a top choice in security hardware.

Electrified Mortise Lock No Deadbolt, Solenoid Controlled, Locked Outside Only, Interior Free Egress, Fail Safe, Dual Voltage 12/24VDC, Right Hand (Field Reversible Handing), Eclipse Trim, 630/US32D Stainless Steel

SDC’s Electric 7800 pro and mod series solenoid controlled mortise locksets replace existing mechanical or electrified mortise locksets for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse are required. These code compliant electric mortise locksets stay latched even when unlocked, maintaining fire door integrity and eliminate the need for exposed and vulnerable electric strikes and magnetic locks or request-to-exit devices. 7800 Pro series models incorporate a grade 1 heavy duty mortise lockset and vandal resistant clutch – proprietary to all SDC locksets. They replace most brands of mechanical locksets making them fully compatible with new and retrofit applications and provide field selectability of all operational attributes. All SDC mortise locks feature a mortise cylinder to manually retract the latch.

Features:

• Heavy duty mortise design
• New or retrofit construction
• Vandal resistant clutch
• Solenoid control
• Key latch retraction
• Field reversible operation. Not available for 35, 70, 72, 80, 82 functions.
• Field selectable function. Not available for 35, 70, 72, 80, 82 functions.
• Field selectable dual voltage. Not available for 35, 70, 72, 80, 82 functions.
• Field reversible handing. Not available for 35, 70, 72, 80, 82 functions.
• Schlage trim compatible

Optional Features:

• Request-to-exit (REX)
• Door position status (DPS)
• Latch status (LS)
• Latch and deadlocked status (LLS)
• Deadbolt status
• Trim options

Models:

• Z78: SDC Solenoid controlled mortise lock
• ZS78: Solenoid controlled mortise lock, SDC supplied Schlage L9080

Applications:

• Failsecure Operation: Locked when de-energized, the failsecure mode is recommended for security applications, such as inner offices, equipment rooms and security mantraps. Loss of power causes all doors to lock. Battery backup is required for continued operation during a power loss.
• Failsafe Operation: Locked when energized, the failsafe mode is recommended for fire life safety applications, such as stairwell doors, perimeter exit doors and safety mantraps. Loss of power or a signal from the life safety system causes all doors to unlock for free uninhibited access and egress.
• Locked Both Sides: Unlocked by an access control, remote control or key from either side. Field reversible operation.
• 7830: Locked both sides, failsafe
• 7832: Locked both sides, failsecure
• Locked Outside Only: Unlocked by an access control or key from the outside. Uninhibited egress at all times by turning the inside lever handle. Field reversible operation.
• 7850: Locked outside only, failsafe
• 7852: Locked outside only, failsecure
• Locked Outside and/or Inside: Unlocked by an access control, remote control or key from either side. Alternately, unlocked by an access control or key from the outside and uninhibited egress at all times by turning the inside lever handle.
• 7835: Locked outside and/or inside, failsecure outside, failsafe inside
• Deadbolt Security, Locked Outside Only: Deadbolt projected by key cylinder or thumbturn. Outside lever retracts deadbolt when electrically unlocked. Unlocked by an access control or key from the outside. Uninhibited egress at all times by turning the inside lever handle. Turning the inside lever will also retract the deadbolt.
• 7870: Deadbolt security, locked outside only, failsafe
• 7872: Deadbolt security, locked outside only, failsecure
• Deadbolt Privacy, Locked Outside Only: Deadbolt projected by key cylinder or thumbturn. Throwing deadbolt locks out electric operation of outside lever. Unlocked from the outside by key only. Uninhibited egress at all times by turning the inside lever handle. Turning the inside lever will also retract the deadbolt.
• 7880: Deadbolt privacy, locked outside only, failsafe
• 7882: Deadbolt privacy, locked outside only, failsecure

Specifications:

• Type: Mortise, solenoid control
• Door Thickness: 1-3/4"
• Door Prep: ANSI A156.13
• Backset: 2-3/4"
• Faceplate: 8-1/32" x 1-5/16" x 7/32"
• Case: 6" x 4" x 1"
• Latchbolt: 3/4" Throw, stainless steel, anti-friction
• Deadbolt: 1" Throw
• Deadlatch: Above latchbolt
• Strike: Standard ANSI 4-7/8"
• Weight: 7 lbs
• Input: 24 VDC ± 10%
• Current Draw: 600 mA @ 12 VDC, 300 mA @ 24 VDC
• Monitoring Contacts: SPDT 5 Amps @ 30 VDC resistive

Specify Function:

• 30: Locked both sides, failsafe
• 32: Locked both sides, failsecure
• 50: Locked outside only, failsafe
• 52: Locked outside only, failsecure
• 35: Locked outside and/or inside, failsecure outside and failsafe inside

Specify Handing:

• L: Left hand (LH)
• LR: Left hand reverse (LHR)
• R: Right hand (RH)
• RR: Right hand reverse (RHR)

Specify Trim:

• E: Eclipse Rose
• G: Galaxy Rose
• N: Nova Rose
• 07: Schlage 07 Rose
• EE: Eclipse Escutcheon
• GE: Galaxy Escutcheon
• NE: Nova Escutcheon
• 07E: Schlage 07 Escutcheon

Finishes:

• Q/626 - Dull chrome
• P/625 - Bright chrome
• C/605 - Bright brass
• D/606 - Dull brass
• F/611 - Bright bronze
• G/612 - Dull bronze
• H/613 - Dark oil rubbed bronze
• S/629 - Bright stainless
• U/630 - Dull stainless

Resources

• Cut Sheet
