Selby SDELTABKT SYSDELTA Nickel Side-Mount Bracket

SELBY SDELTABKT Side-Mount Bracket for SYSDELTA Nickel provides a robust solution for your cabinet lid stay needs. Designed specifically for Delta applications, this side-mount bracket is crafted from strong die-cast, nickel-plated zamak, ensuring durability and reliable support for lids weighing up to 20 lbs. Measuring 8 inches in overall length, the bracket features all holes on 32mm centers, making installation straightforward and compatible with various cabinetry designs. The unique design allows the angle of opening to be adjusted between 75° to 90° by simply relocating the brackets, offering flexibility in how your cabinet functions. With its adjustable sliding and braking action, the SDELTABKT can hold lids at intermediate positions, enhancing ease of use. The reversible tension direction allows for both Lift-Up and Drop-Down functionalities, catering to different user preferences. Tension adjustments are easily made with a #4 Allen wrench, ensuring you can fine-tune the operation to your liking. Each package includes two brackets, providing everything you need to secure your cabinet lids effectively. Upgrade your cabinetry with SELBY’s reliable hardware for a seamless blend of function and style.

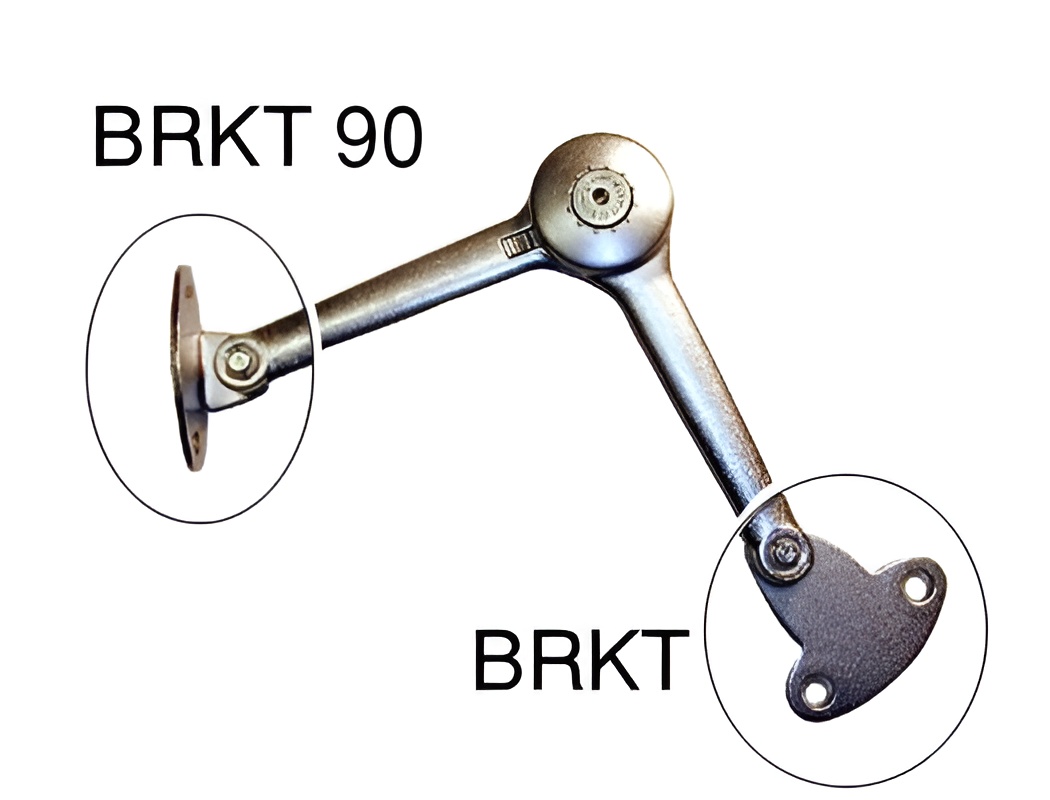

Side-Mount Bracket f/SYSDELTA Nickel

• Angle of opening varies from 75° to 90° by relocation of the brackets
• Comes with 2 brackets as shown
• Reversible tension direction from Lift-Up to Drop-Down function
• Tension adjusts with #4 Allen wrench
• 8" overall (end to end)
• Brackets are fastened to the cabinet separately
• Strong die-cast nickel-plated zamak for lids up to 20 lbs
• All holes on 32mm centers
• Adjusts from sliding‚ braking action to hold at intermediate positions
