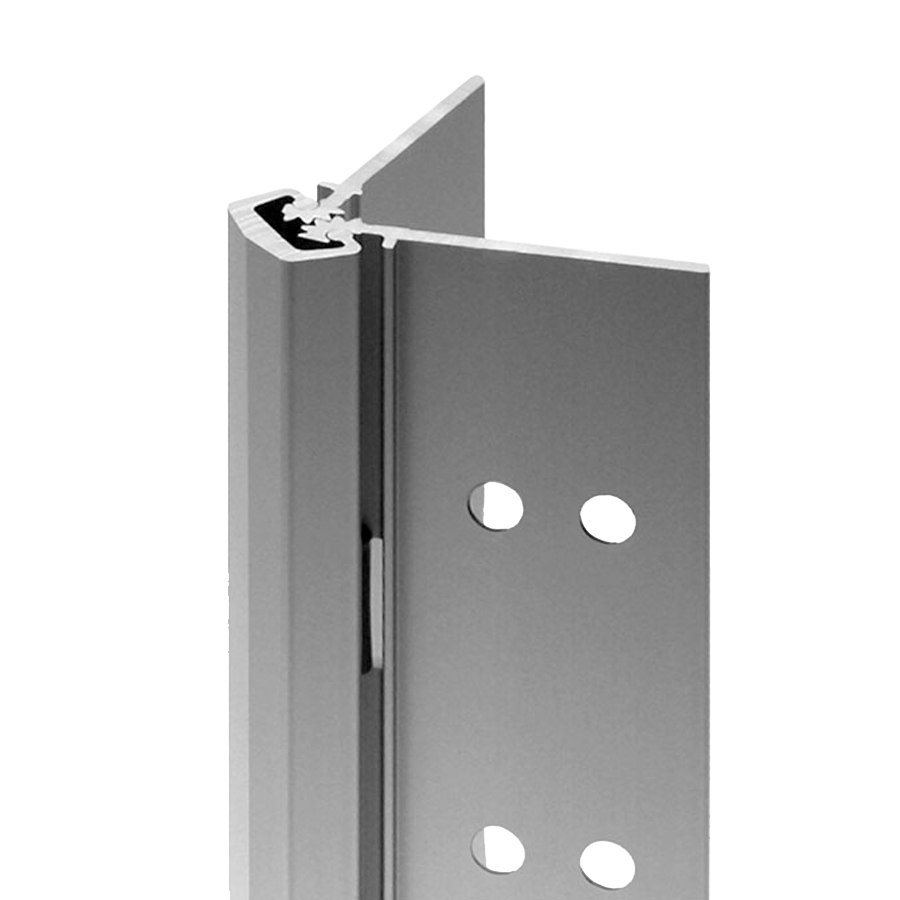

Select Products SL11-120-CL-HD600 Heavy Duty Geared Continuous Hinge, 120in, Up to 600lb, High Frequency

SELECT Products Limited SL11-120-CL-HD600 Full Mortise Heavy Duty Geared Continuous Hinge is engineered for high-traffic environments, providing unparalleled durability and performance. With a length of 120 inches and a load capacity of up to 600 pounds, this hinge is designed to withstand the rigors of frequent use, boasting an impressive lifecycle rating of 25 million cycles, which translates to over 60 years of reliable service. Constructed from high-quality aluminum, the SL11 series not only enhances longevity but also contributes to sustainability by reducing the need for frequent replacements, thereby minimizing waste and resource consumption. It is available in clear, dark bronze, and black anodized finishes, with custom options to suit specific design requirements. This heavy-duty hinge is suitable for 1-3/4" doors with a maximum width of 48 inches, making it ideal for various applications. It features a comprehensive screw count for secure installation-23 screws for both door and frame, ensuring stability and security. Compatible with conventional overhead surface closers, concealed sliding arm overheads, or floor closers, the SL11 hinge is a versatile solution for maintaining smooth, efficient door operation in any setting. Experience hassle-free maintenance and unmatched performance with SELECT Products’ continuous hinge.

Full Mortise Heavy Duty Geared Continuous Hinge, 120in, Up to 600lb. High Frequency, CL Clear

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
