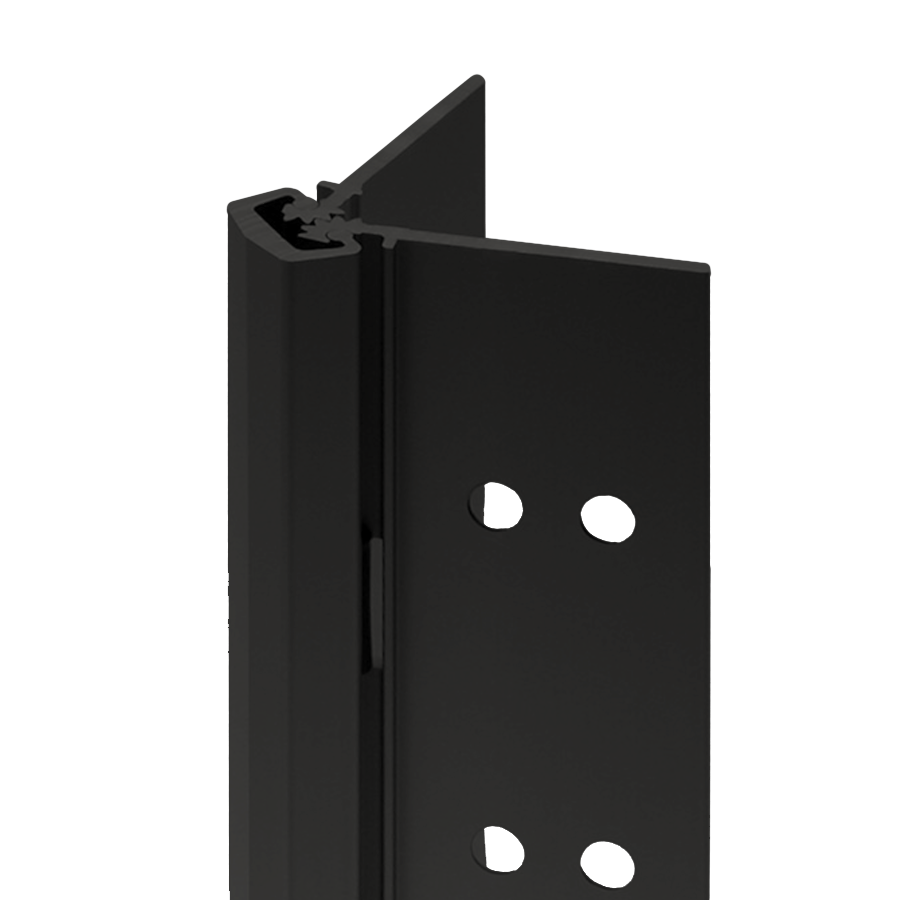

Select Products SL11-83-BK-HD300 Heavy Duty Geared Continuous Hinge, 83in, Up to 300lb, Black

SELECT Products Limited SL11-83-BK-HD300 Full Mortise Heavy Duty Geared Continuous Hinge is engineered for exceptional performance in high-traffic environments. Measuring 83 inches in length and supporting doors up to 300 pounds, this hinge is perfect for demanding applications without requiring frame or door reinforcement. Constructed from durable aluminum, the SL11 hinge is designed for longevity, boasting a remarkable lifecycle of over 25 million cycles-equivalent to over 60 years of typical use. This durability not only translates to reduced maintenance costs but also supports sustainable building practices by minimizing material waste and energy consumption. Additionally, SELECT backs this product with a continuous warranty, ensuring peace of mind. The SL11 hinge is versatile, available in various finishes including clear, dark bronze, and black anodized aluminum, with custom options available to match specific design preferences. It accommodates conventional overhead closers, concealed sliding arm closers, and floor closers, making it adaptable for various installation needs. With 19 screws for both door and frame installation, the SL11-83-BK-HD300 is a reliable choice for professionals seeking a high-quality continuous hinge that combines strength, efficiency, and environmental responsibility.

Full Mortise Heavy Duty Geared Continuous Hinge, 83in, Up to 300lb. High Frequency, BK Black

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
