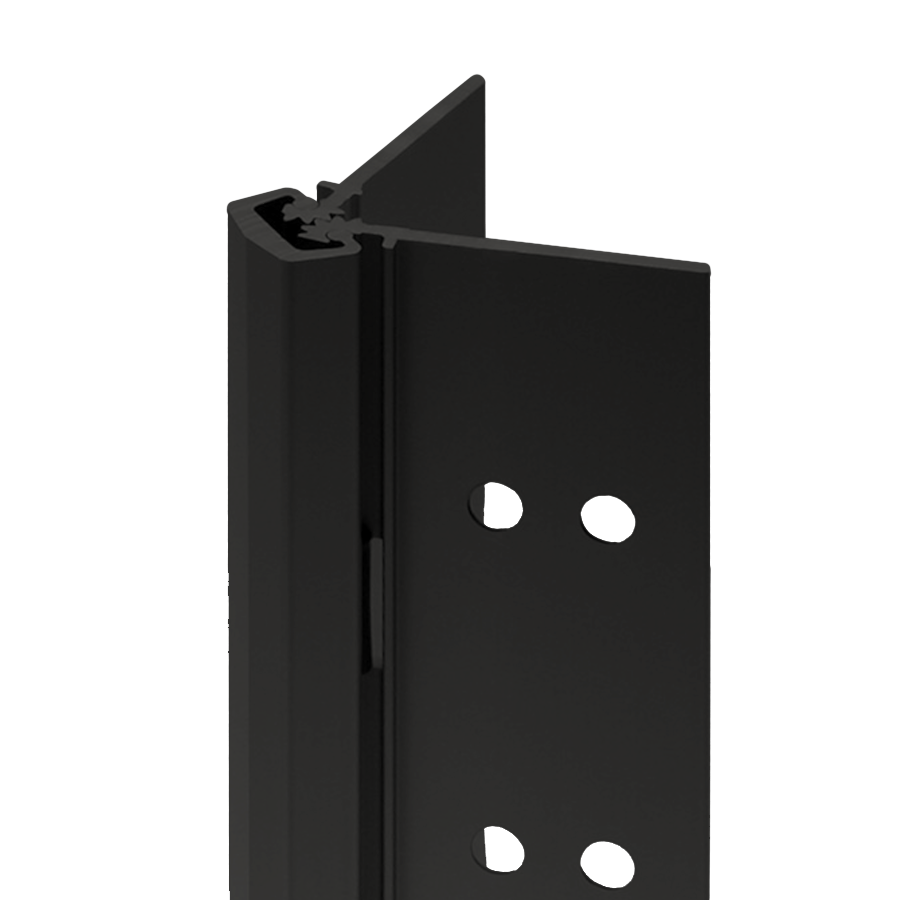

Select Products SL11-83-BK-HD600 Heavy Duty Geared Continuous Hinge, 83in, 600lb, High Frequency, Black

SELECT Products Limited SL11-83-BK-HD600 Full Mortise Heavy Duty Geared Continuous Hinge is engineered for high-performance applications, providing an exceptional solution for high-traffic doors. Measuring 83 inches in length and capable of supporting doors weighing up to 600 pounds, this heavy-duty hinge ensures durability and reliability even under the most demanding conditions. Constructed from robust aluminum, the SL11 hinge boasts a high-cycle rating of 25 million cycles, equating to over 60 years of average use on a standard high-traffic door. This longevity translates to reduced maintenance costs and a lower environmental impact, as fewer resources are needed for replacements. The hinge is available in various finishes, including black anodized, ensuring it meets both aesthetic and functional requirements. Designed for 1-3/4" doors with a maximum width of 48 inches, the SL11 hinge is compatible with both conventional and concealed closers, offering flexibility in installation. It includes 19 screws for both the door and frame, simplifying the setup process. Backed by a continuous warranty, SELECT Products Limited stands behind the exceptional quality and longevity of this hinge, making it a smart investment for any building professional or homeowner looking to enhance their door hardware.

Full Mortise Heavy Duty Geared Continuous Hinge, 83in, Up to 600lb. High Frequency, BK Black

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
