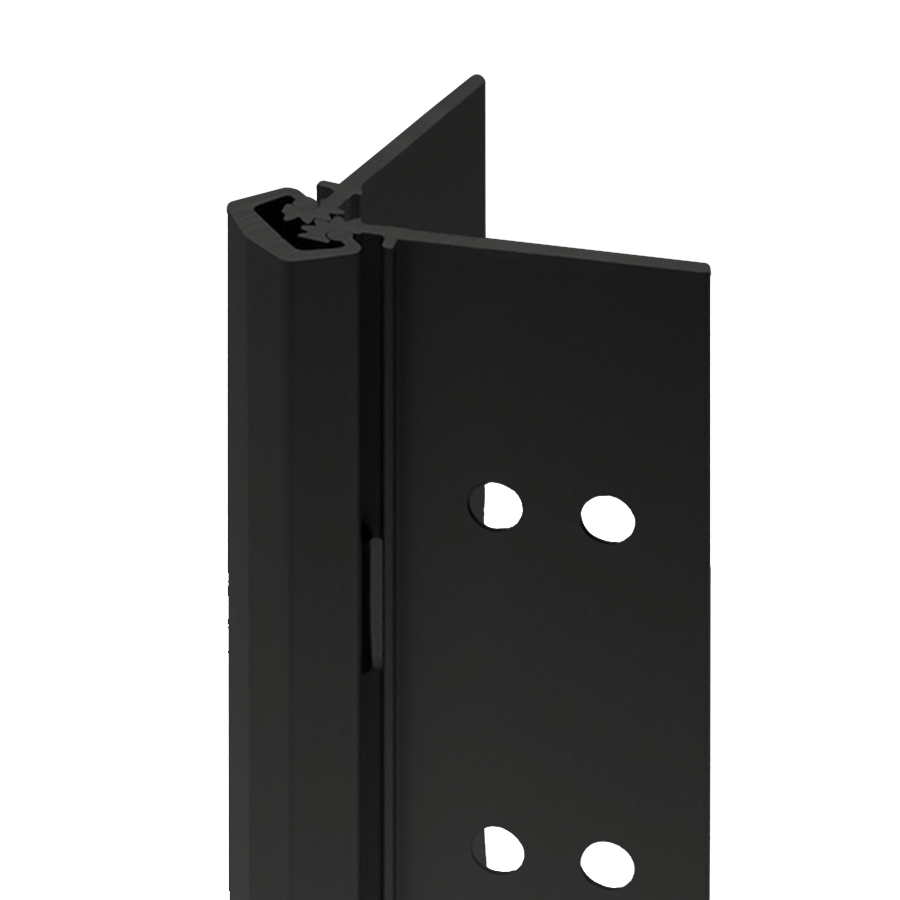

Select Products SL11-83-BK-SD Full Mortise Standard Duty Geared Continuous Hinge, 83in, Black

SELECT Products Limited SL11-83-BK-SD Full Mortise Standard Duty Geared Continuous Hinge is engineered for durability and efficiency, making it an ideal choice for high-traffic applications. Measuring 83 inches, this black anodized aluminum hinge is designed to withstand an impressive 25 million cycles, equating to over 60 years of reliable use. The longevity of the SL11 hinge minimizes the need for frequent replacements, leading to reduced material waste and energy consumption-an eco-friendly choice for any building project. This continuous hinge accommodates 1-3/4" thick doors with a maximum width of 48" in 16 gauge hollow metal or 1/8" aluminum. It supports heavy-duty applications, rated for doors weighing up to 300 lbs without frame reinforcement. For even heavier doors, the SL11 hinge offers additional configurations, ensuring versatility to meet various needs. Available in clear, dark bronze, and black finishes, it complements a wide range of architectural styles. The hinge is non-handed, allowing for flexible installation options. Moreover, it comes with a generous screw count, ensuring robust fastening to both the door and frame. With the SL11 hinge, you can achieve a seamless blend of performance and sustainability while enhancing the longevity of your door systems.

Full Mortise Standard Duty Geared Continuous Hinge, 83in, Black

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
