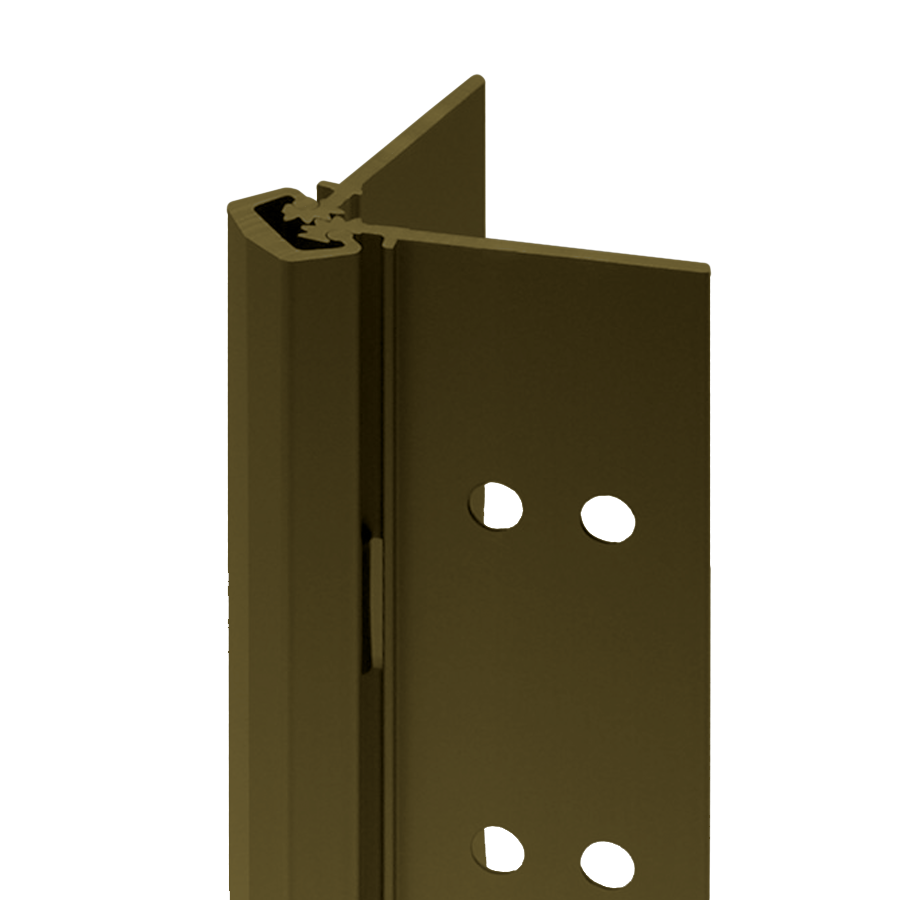

Select Products SL11-83-BR-HD300 ATW-12 90-DEGREE ATW-12 Heavy Duty Geared Continuous Hinge, 12 Wire, 90-Degree Door Opening

SELECT Products Limited SL11-83-BR-HD300 ATW-12 is a robust continuous hinge designed for high-traffic environments, showcasing a heavy-duty construction that supports doors weighing up to 300 lbs without the need for additional reinforcement. Measuring 83 inches in length and featuring a full mortise flush mount, this hinge ensures a seamless integration into your doors, allowing for a 90-degree opening with a cover plate designed for accessibility through-wire power transfer. Constructed from durable aluminum and finished in a stylish 313/BR Dark Bronze Anodized, this hinge not only provides longevity-proven to withstand 25 million cycles-but also contributes to sustainability by minimizing material waste and energy consumption. The SL11 series is available in various lengths, including custom options, to accommodate a range of applications. Installation is straightforward, with a screw count of 19 for both door and frame on the 83-inch variant. Compatible with a variety of closers, this hinge is an excellent choice for professionals seeking a reliable and efficient solution for heavy-use doors. Backed by SELECT's continuous warranty, the SL11-83-BR-HD300 ATW-12 offers peace of mind alongside exceptional performance, making it an ideal selection for both commercial and residential projects.

ATW-12, Accessible Through-Wire Power Transfer, 12 Wire, Full Mortise Heavy Duty Geared Continuous Hinge, No Door Inset, Flush Mount, 83in, ATW 45-11/32in Centerline From Top of Hinge, 90-Degree Door Opening Cover Plate, Up to 300lbs, High Frequency, 313/BR Dark Bronze Anodized

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
