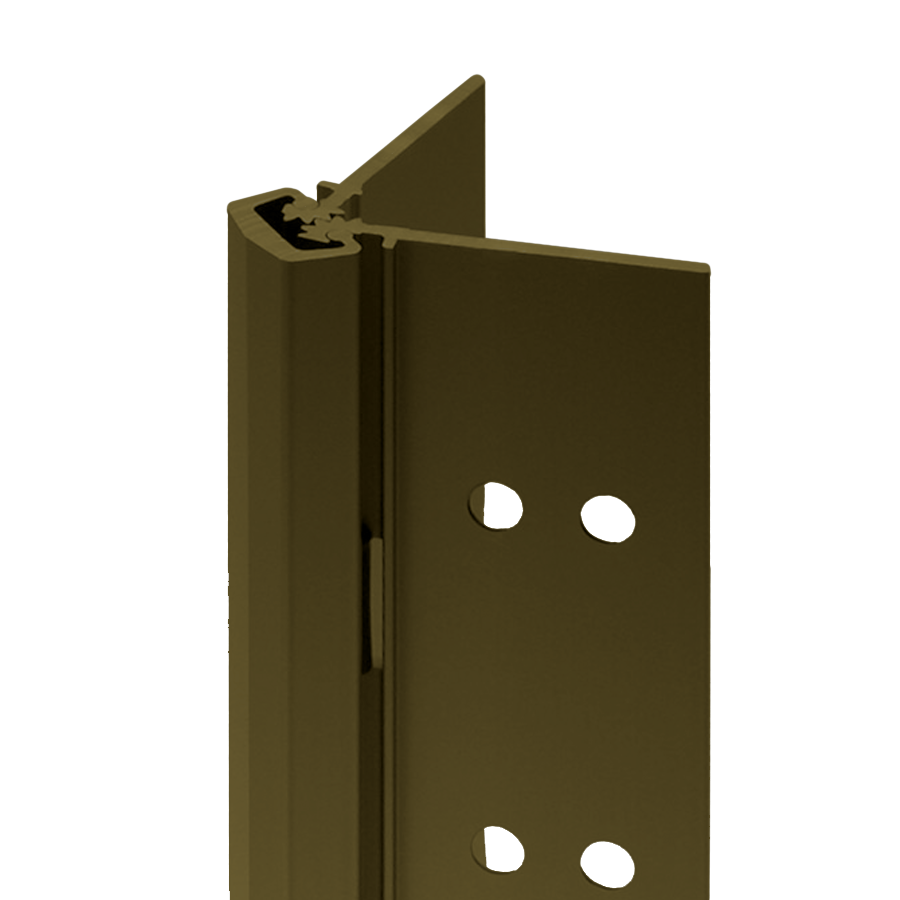

Select Products SL11-83-BR-HD300 Heavy Duty Geared Continuous Hinge, 83in, 300lb, High Frequency, BR Bronze

SELECT Products Limited SL11-83-BR-HD300 Full Mortise Heavy Duty Geared Continuous Hinge is engineered for high-traffic environments, offering an exceptional solution for your door hardware needs. With an impressive capacity of supporting doors weighing up to 300 pounds, this 83-inch long hinge is designed for 1-3/4" doors with a maximum width of 48" in standard 16-gauge hollow metal or 1/8" aluminum. Constructed from durable aluminum, the SL11 hinge is built to endure up to 25 million cycles, translating to over 60 years of reliable service. This longevity not only minimizes the need for replacements but also significantly reduces material waste and emissions, making it an eco-friendly choice for any building project. The hinge is available in several finishes, including clear, dark bronze, and black anodized aluminum, with custom options also offered. Compatible with various closers, including conventional overhead and concealed sliding arm types, the SL11 hinge simplifies installation while ensuring robust performance. It’s backed by a continuous warranty, reinforcing its reliability and your investment. Upgrade your door hardware with the SELECT Products Limited SL11-83-BR-HD300 for a blend of durability and sustainability.

Full Mortise Heavy Duty Geared Continuous Hinge, 83in, Up to 300lb. High Frequency, BR Dark Bronze

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
