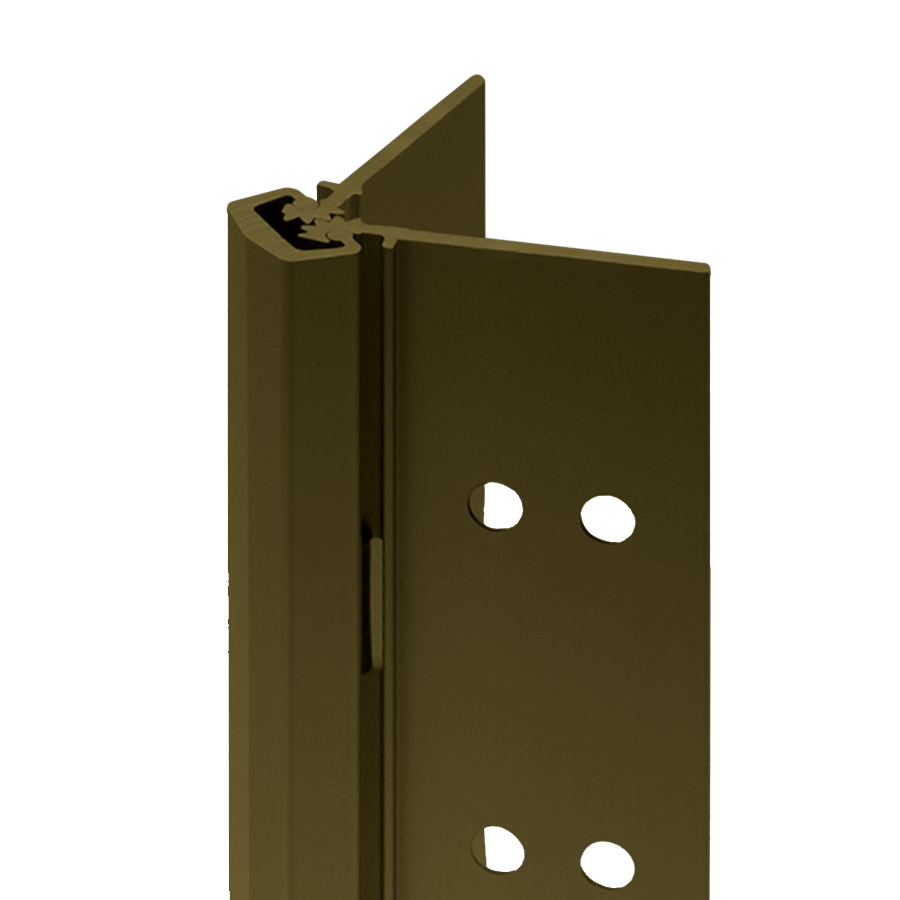

Select Products SL11-83-BR-HD600 Heavy Duty Geared Continuous Hinge, 83in, 600lb, BR Dark Bronze

SELECT Products Limited SL11-83-BR-HD600 Full Mortise Heavy Duty Geared Continuous Hinge is engineered for high-traffic environments, boasting an impressive load capacity of up to 600 pounds. With a length of 83 inches, this hinge is specifically designed for 1-3/4" doors, accommodating a maximum width of 48 inches in 16-gauge hollow metal or 1/8" aluminum. Proven to endure over 25 million cycles, it ensures longevity, making it a cost-effective solution for busy settings. This translates to more than 60 years of reliable operation, reducing the need for frequent replacements and maintenance. The SL11 series is available in three anodized finishes-clear, dark bronze, and black-allowing for seamless integration into any architectural design. Custom lengths can also be requested to meet specific project requirements. For those managing heavier or particularly tall doors, rivnuts are recommended to enhance stability and security. Designed for compatibility with conventional overhead closers, this continuous hinge is a versatile choice for a variety of applications. Backed by SELECT’s never-ending warranty, the SL11-83-BR-HD600 offers both performance and peace of mind. Choose this durable hinge to elevate the functionality and sustainability of your building projects.

Full Mortise Heavy Duty Geared Continuous Hinge, 83in, Up to 600lb. High Frequency, BR Dark Bronze

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
