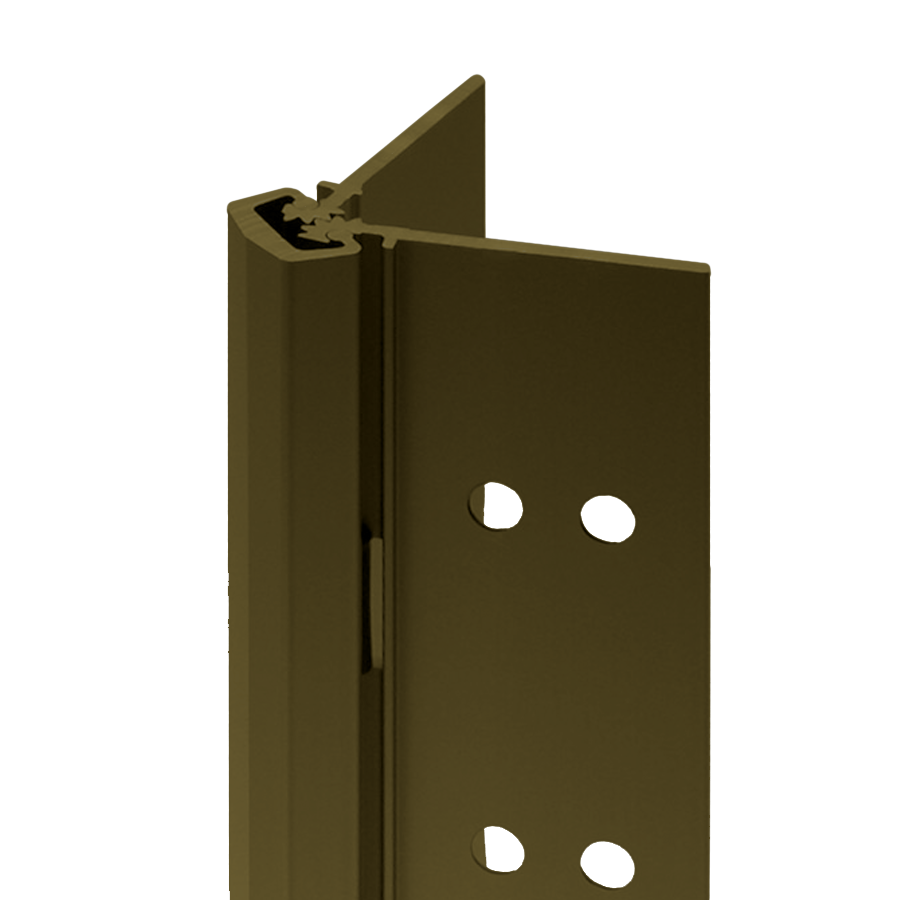

Select Products SL11-83-BR-SD Full Mortise Standard Duty Geared Continuous Hinge, 83in, Dark Bronze

SELECT Products Limited SL11-83-BR-SD Full Mortise Standard Duty Geared Continuous Hinge is designed to offer exceptional performance and durability for high-traffic applications. Measuring 83 inches in length and crafted from dark bronze anodized aluminum, this hinge is engineered to support doors up to 48 inches wide and 1-3/4 inches thick. One of the standout features of the SL11 hinge is its impressive load capacity, accommodating doors weighing up to 300 lbs without requiring frame or door reinforcement. This robust construction ensures longevity, with the product rated for over 25 million cycles-equivalent to more than 60 years of standard use. The environmental benefits are significant, as fewer hinges lead to reduced resource consumption and lower emissions. This continuous hinge is non-handed, making it versatile for various installations. It is compatible with conventional overhead closers and is stocked in multiple finishes, including dark bronze, clear, and black anodized aluminum, with custom options available. Installation is straightforward with a screw count of 19 for both door and frame on the 83" HD300/HD600 models. The SELECT Products Limited SL11-83-BR-SD hinge combines strength, efficiency, and sustainability, making it an ideal choice for professionals and knowledgeable homeowners looking for reliable hardware solutions.

Full Mortise Standard Duty Geared Continuous Hinge, 83in, Dark Bronze

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
