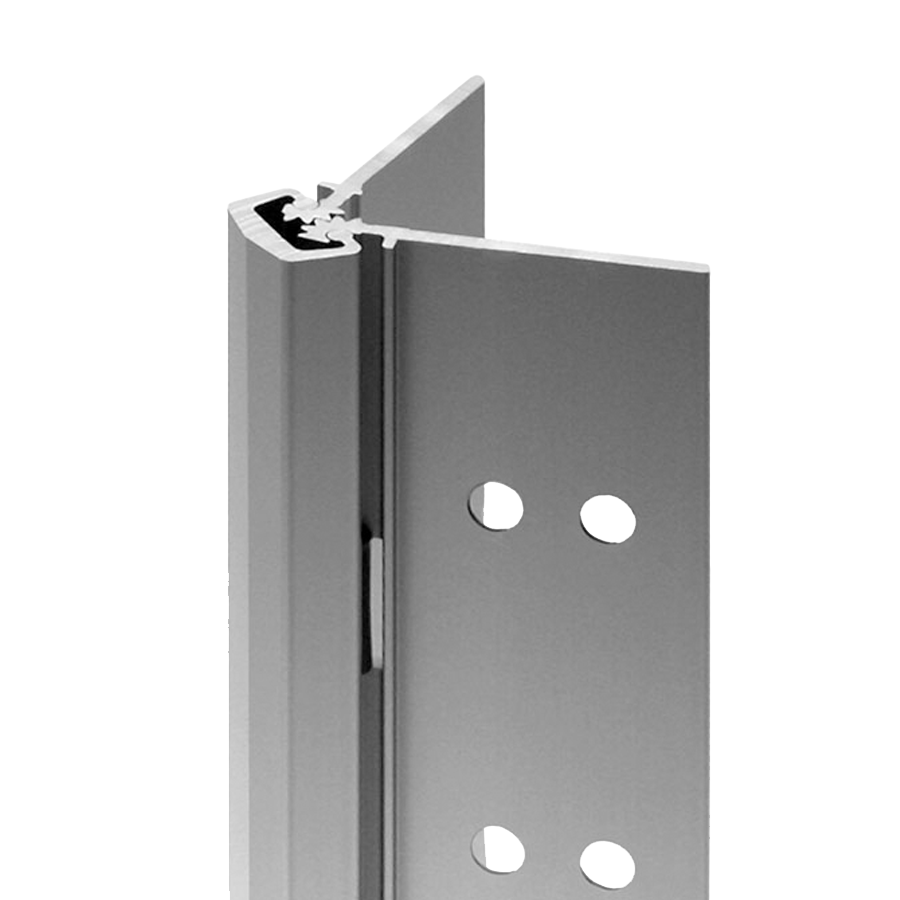

Select Products SL11-83-CL-HD300 ATW-12 180-DEGREE ATW-12 Heavy Duty Geared Continuous Hinge, 12 Wire, 180 Door Opening, 300lbs

SELECT Products Limited SL11-83-CL-HD300 ATW-12 is a premium heavy-duty geared continuous hinge designed for high-traffic environments. Measuring 83 inches in length, this hinge supports doors weighing up to 300 lbs without the need for additional frame or door reinforcement. With a 180-degree door opening and a flush mount design, the SL11-83-CL-HD300 seamlessly integrates into your door system, providing both functionality and aesthetic appeal. Constructed from clear anodized aluminum, this hinge is built to withstand the rigors of daily use, boasting a remarkable cycle life of 25 million cycles-equivalent to over 60 years for the average high-traffic door. This durability translates to reduced maintenance costs and resource consumption, making it an eco-friendly choice for your projects. The hinge is accessible through a wire power transfer, making it ideal for installations requiring electrical components. With a standard load frequency rating for 1-3/4" doors and compatibility with conventional overhead closers, the SL11-83-CL-HD300 is versatile enough to meet various architectural needs. Custom lengths and finishes are available, allowing you to tailor the hinge to your specific application. Elevate your door hardware with SELECT Products Limited SL11-83-CL-HD300 ATW-12, where superior engineering meets sustainable design.

ATW-12, Accessible Through-Wire Power Transfer, 12 Wire, Full Mortise Heavy Duty Geared Continuous Hinge, No Door Inset, Flush Mount, 83in, ATW 45-11/32in Centerline From Top of Hinge, 180-Degree Door Opening Cover Plate, Up to 300lbs, High Frequency, 628/US28/CL Clear Anodized Aluminum

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
